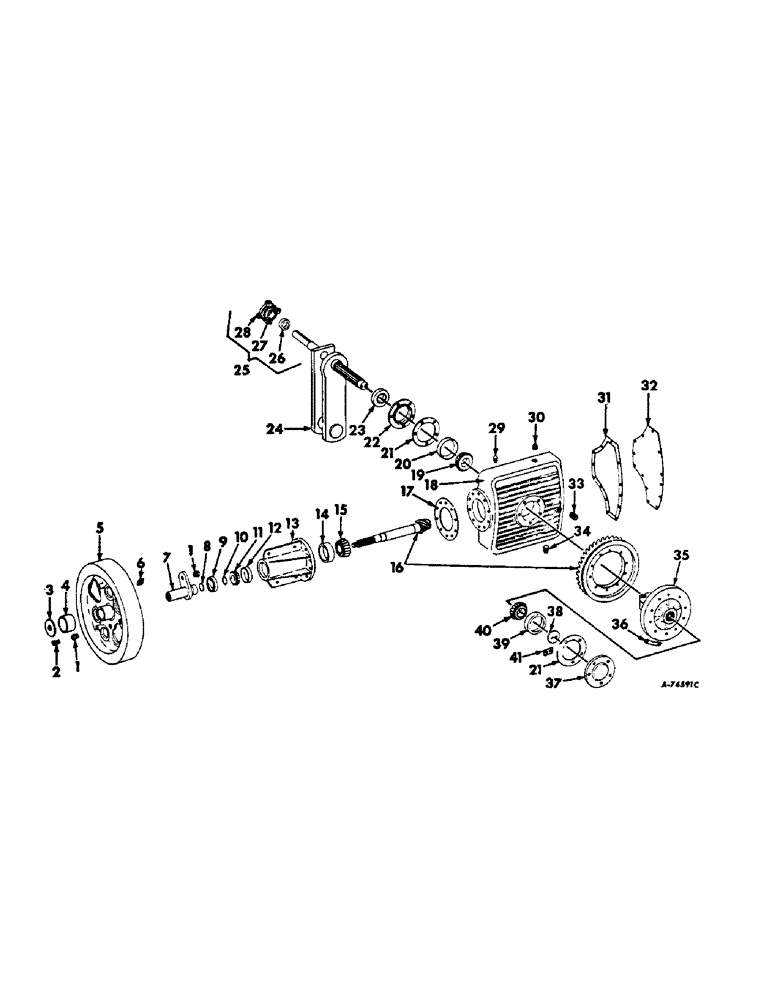

Запчасти Case IH 440 (F-18) - MAIN DRIVE

1

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

shear bolt

3шт.

2

181620

SCREW,Hex, 5/16" - 24 x 2", Gr 5

BOLT, 5/16-24 x 2 C-Z hex-hd cap screw shear

7шт.

120368

NUT,5/16"-24, G5

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

3

662103R1

THRUST WASHER

flywheel thrust

1шт.

4

201741C1

FLYWHEEL

BUSHING, flywheel

1шт.

5

667700R21

FLYWHEEL

W/BUSHING, main drive

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self tap lub

1шт.

7

202483C91

HUB

ASSY, flywheel service pkg., consists of hub assy, flywheel 667633R22 (NSS), (1) bushing 662555R1, (2) shim .005 667605R1. (2) shim .007 667606R1, (1) o-ring 275611R1

1шт.

8

257611R1

O-RING,-221, 70 Duro, 1.421" ID x .139" Thk

1-7/16 x 1-11/16 x 1/8

1шт.

9

669530R91

OIL SEAL

SEAL, pinion shaft front oil

1шт.

10

667605R1

SHIM

brg preload .005 (as required)

3шт.

10

667606R1

SHIM

brg preload .007 (as required)

2шт.

10

667607R1

SHIM

brg preload .020 (as required)

1шт.

11

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

BEARING ASSY, pinion shaft front cone, replaces 62923R91

1шт.

12

ST987

BEARING CUP

BEARING, pinion shaft front cup, replaces 130503H

1шт.

13

667601R1

CASE

main drive gear front

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

4шт.

202675C2

SCREW, 7/16-14 x 1-1/2 znd hex-hd exlok cap

10шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

10шт.

14

107577R1

BEARING, CUP

BEARING, pinion shaft rear cup

1шт.

15

662062R91

ROLLER BEARING

ASSY, pinion shaft rear cone

1шт.

16

204105C1

SET

GEAR SET, ring and pinion, replaces 662050R11

1шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

WIRE, 6 in. 16 ga.

1шт.

272322

WASHER

7/8-14 znd slotted thick hex

1шт.

17

662088R1

SHIM

main drive gear .020 (as required)

2шт.

17

662089R1

SHIM

main drive gear .007 (as required)

2шт.

17

662090R1

SHIM

main drive gear .005 (as required)

3шт.

18

667600R2

CASE

main drive rear

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

322593R1

BOLT

SCREW, 3/4-10 x 2-1/4 C-Z hex-hd nylock cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

19

ST2083

BEARING ASSY

main drive gear RH cone

1шт.

20

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

main drive gear RH cup

1шт.

21

662091R1

SHIM

main drive bevel gear .005 (as required)

8шт.

21

662093R1

SHIM

main drive bevel gear .007 (as required)

4шт.

21

662092R1

SHIM

main drive bevel gear .020 (as required)

2шт.

22

662017R1

COVER

main drive bevel gear brg

1шт.

202676C1

SCREW, 3/8-16 x 1 znd hex-hd eslok cap

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

23

662066R91

OIL SEAL,60.33mm ID x 92.15mm OD x 11mm Thk

plunger crnk RH oil

1шт.

24

667632R92

CRANKSHAFT

ASSY, plunger

1шт.

25

667860R91

BEARING ASSY,2.5" ID x 3.6875" OD x 1.90625"

ASSY, plunger crank RH

1шт.

26

668041R11

NO LONGER SERVICED

COLLAR W/SET SCREW, brg locking

1шт.

27

668040R91

NO LONGER SERVICED

BEARING, plunger crank

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

28

NOT SERVICED SEPARATELY, order 667860R91

1шт.

29

152127H1

BREATHER,1/8"-27, Short

VENT ASSY, main drive gear box, replaces 663002R91

1шт.

30

444676

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG, 1-11-1/2 automotive sq soc-hd pipe

1шт.

31

667603R1

GASKET

main drive gear box cover

1шт.

32

667602R11

COVER

ASSY, main drive gear case rear

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

13шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

13шт.

33

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 automotive Hex Socket

1шт.

34

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 automotive sq-hd pipe

1шт.

35

670568R1

HUB

main bevel gear

1шт.

181701

BOLT,Hex, 1/2" - 20 x 1 5/8", Gr 5

SCREW, 1/2-20 x 1-5/8 C-Z hex-hd cap

10шт.

36

261622R1

PLATE, LOCKING

LOCKPLATE, main drive gear hub cap screw

5шт.

37

667604R1

CAP

main drive bevel gear

1шт.

202675C2

SCREW, 7/16-14 x 1-1/2 znd hex-hd eslok cap

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

5шт.

38

200525C1

WASHER

plunger crankshaft thrust

1шт.

229057R1

SCREW, 3/8-24 x 1 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

39

13363D

TAPERED BEARING

BEARING, main drive gear cup

1шт.

40

971528R91

BEARING

ASSY, main drive gear cone

1шт.

41

201580C1

PLATE

TAB, bolt holder

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, 3/8-24 x 1 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
