Запчасти Case IH 440 (F-17) - PICKUP COVER

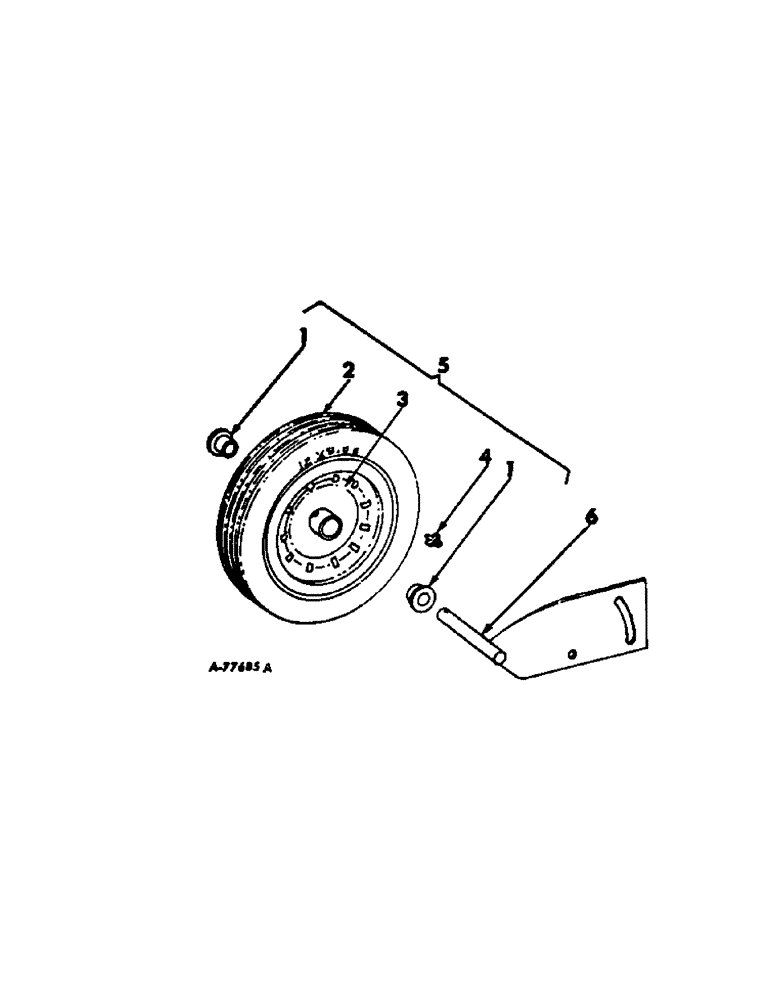

Схема запчастей Case IH 440 - (F-17) - PICKUP COVER
2
5
6
4
1
1
3

Артикул

Название

Примечание

Количество

1

669006R1

BUSHING

BEARING, pickup wheel, 2 used in gauge wheel w/1-1/8 bore

1шт.

1

202248C1

BUSHING

BEARING, pickup wheel, 2 used in gauge wheel w/1-3/8 bore

1шт.

2

669005R1

TYRE/TIRE

TIRE, pickup wheel semi-pneumatic

1шт.

3

669004R91

WHEEL

ASSY, pickup

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, .191 str drive type lub, used w/Ohio Rubber Co & Geneva Wheel Co only

1шт.

4

20691R1

FITTING,3/16" x .47" lg, Drive

.191 str drive type lub, used w/dico co wheel only

1шт.

5

669003R91

WHEEL

PICKUP, w/semi-pneumatic tire

1шт.

6

674175R1

SUPPORT

BRACKET ASSY, pickup wheel

1шт.

131017

WASHER

13/16 x 1-1/2 x 10 ga C-Z

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16-14 x 1 C-Z hex-hd mach

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z (as required)

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

Выбрано товаров: 14
