Запчасти Case IH 440 (F-13) - PICKUP CYLINDER AND DRIVE, 440 STD TWINE BALER

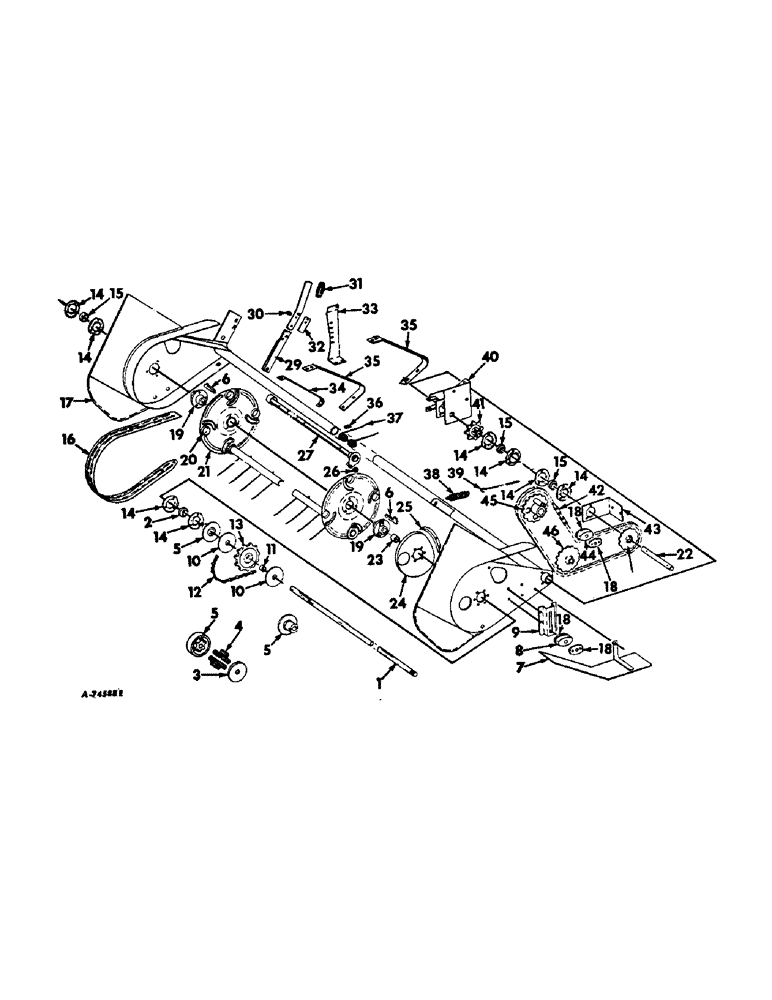

Схема запчастей Case IH 440 - (F-13) - PICKUP CYLINDER AND DRIVE, 440 STD TWINE BALER

Артикул

Название

Примечание

Количество

1

663332R3

SHAFT

pickup cyl drive

1шт.

219760

BACK-UP RING

1-14 znd hex. jam

1шт.

21788R1

WASHER

1-1/32 x 1-7/16 x 18 ga C-Z (as required)

3шт.

21789R1

WASHER

1-1/32 x 1-1/4 x 16 ga C-Z (as required)

2шт.

20529R1

PIN,7/32" x 1 1/2", Slotted

1шт.

2

155264C91

BALL BEARING,25.43mm ID x 52.09mm OD x 16mm W

ASSY, pickup cylinder LH

1шт.

3

202090C1

WASHER

slip clutch retainer

1шт.

4

M1015

SPRING

pickup slip clutch

6шт.

5

662026R4

HUB

pickup slip clutch

1шт.

5

202399C1

HUB

pickup slip clutch

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

2шт.

6

Q3931

KEY,Gib, 5/16" Sq x 1 7/8"

5/16 x 1-7/8 sq-tapered

2шт.

7

662297R91

SHIELD

ASSY, pickup drive

1шт.

19416R1

BOLT

5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21142R1

BOLT, 7/16 x 3/4 znd hex-hd mach

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

8

668147R1

BLOCK

tightener

1шт.

9

667718R1

BRACKET

pickup idler

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

662291R1

LINING

FACING, pickup drive clutch

2шт.

11

662079R1

BUSHING

pickup slip clutch sprocket

1шт.

12

CA320

SPARE PART

CHAIN, pickup drive, no. 55 stl chain, 28 links

1шт.

13

662023R1

DRIVE SPROCKET

SPROCKET, pickup slip clutch

1шт.

14

671682R1

NO LONGER SERVICED

FLANGE, pickup pivot drive brg

8шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

9шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, , 440T Std Baler Short NK, 5/16"-18 x 1", G2, Full Thd

3шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 1 znd hex-hd mach, 440 custom T and W balers

3шт.

15

671681R91

BEARING ASSY,25.43mm ID x 52.09mm OD x 16mm W

ASSY, pickup cylinder RH

3шт.

16

662316R2

STRIPPER

pickup

13шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

26шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

26шт.

120376

NUT,5/16"-18, G5

52шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

52шт.

17

674152R1

FRAME ASSY, pickup, 440 T std baler

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

23821R1

HEADED PIN,5/16" x 2.609"

PIN, HEADED, 5/16" x 2.609"

2шт.

18

673666R1

CAP

REINFORCEMENT, block tightener

4шт.

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

BOLT, 5/8 x 3-1/4 C-Z sq-nk crg

1шт.

18723R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 2

BOLT, 5/8 x 2-3/4 C-Z sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

21791R1

WASHER

31/32 x 1-1/2 x 9 ga

2шт.

19

659942R1

HUB

pickup cyl driving, 440 T std baler

2шт.

378484R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2 znp std-hd

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

20

659437R1

BUSHING

pickup cyl end, for 440 T std baler

8шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

21

667705R11

END

W/BUSHING, pickup cyl, 2 for 440 T std baler

1шт.

22

667713R2

SHAFT

pickup pivot drive

1шт.

551855R1

WASHER

1-1/32 x 1-1/4 x 16 ga

1шт.

23

661036R1

SPACER

pickup cyl shaft inner

1шт.

24

662317R2

CAM

pickup tooth control

1шт.

25

662318R11

GUIDE

ASSY, tooth bar roller, 440 T std baler

1шт.

133822

COVER,Cross Flat Hd, 5/16"-18 x 5/8"

SCREW, Cross Flat Hd, 5/16"-18 x 5/8"

1шт.

134512

LATCH,8.28mm ID x 15.21mm OD

5/16 C-Z csk ext, tooth lock

1шт.

26

ST543

BALL BEARING,15mm ID x 35mm OD x 11mm W

BEARING ASSY, pickup cyl tine control, 4 for 440 T std baler

1шт.

137273

COTTER PIN

PIN, 3/'6 x 2-1/2 C-Z cot

4шт.

21787R1

WASHER

2-1/16 x 2-15/16 x 16 ga C-Z (as required)

16шт.

27

663330R92

BAR

ASSY, pickup tooth

4шт.

28

662003R2

DRIVE SPROCKET

SPROCKET, pickup pivot drive

1шт.

21825R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

22969R1

LOCK PIN,3/16" x 1 3/4", Slotted

Pin, 3/16" x 1 3/4", Slotted

1шт.

29

674154R92

LEVER

ASSY, pickup

1шт.

22144R1

RIVET

3/8 x 1 C-Z small b-hd

2шт.

663922R1

PIN,5/8" x 1 3/8"

5/8 x 1-3/8 C-Z std-hd

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

30

18489D

SPRING

pickup lever clip

1шт.

22753R1

HEADED PIN,5/16" x 2 3/16"

PIN, HEADED, 5/16" x 2 3/16"

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

31

662340R1

GRIP

lever, replaces 938885R1

1шт.

32

662506R1

CLIP

pickup lever

1шт.

33

674153R1

SUPPORT

QUADRANT, pickup lever

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

34

674160R1

SUPPORT

BRACE, pickup stripper

13шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 znd hex-hd mach

13шт.

120377

NUT,3/8" - 16, Gr 5

13шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

13шт.

35

674159R1

SUPPORT

pickup stripper

13шт.

36

27513K

CUP WASHER

WASHER, pickup cyl spring tooth

28шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 C-Z sq-nk crg

28шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex lock

28шт.

37

MA74528

SPRING

pickup tooth

28шт.

38

MA731

SPRING

pickup balance

1шт.

39

674158R1

BOLT,3/8" - 16 x 14.6"

balance spring

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

21741R1

WASHER

13/32 x 7/8 x 11 ga C-Z

1шт.

40

674177R1

SUPPORT

BRACKET ASSY, pickup drive shaft pivot RH

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

4шт.

41

662024R2

DRIVE SPROCKET

SPROCKET, pickup pivot drive shaft

1шт.

21651R1

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.

22004R1

LOCK PIN,3/16" x 2", Slotted

Pin, 3/16" x 2", Slotted

1шт.

42

CHAIN, main drive pickup, use 83 links of 1-1/4 extended pitch agricultural transmission roller chain from 10 ft roll marked 569089R91 and 1 connecting link 456980R91 and 2 offset links 456929R91

1шт.

43

667717R1

BRACKET

pickup pivot drive shaft LH

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

44

667459R1

BLOCK

tightener

1шт.

45

662025R1

DRIVE SPROCKET

SPROCKET, pickup drive

1шт.

18786R1

BOLT,Hex, 3/8"-16 x 3 1/2", G2

3/8 x 3-1/2 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

46

582415R91

DRIVE SPROCKET,9T

SPROCKET ASSY, pickup drive idler, service for 180193C91, replaces 936047R91

1шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8 x 4 C-Z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z (as required)

4шт.

Выбрано товаров: 125
