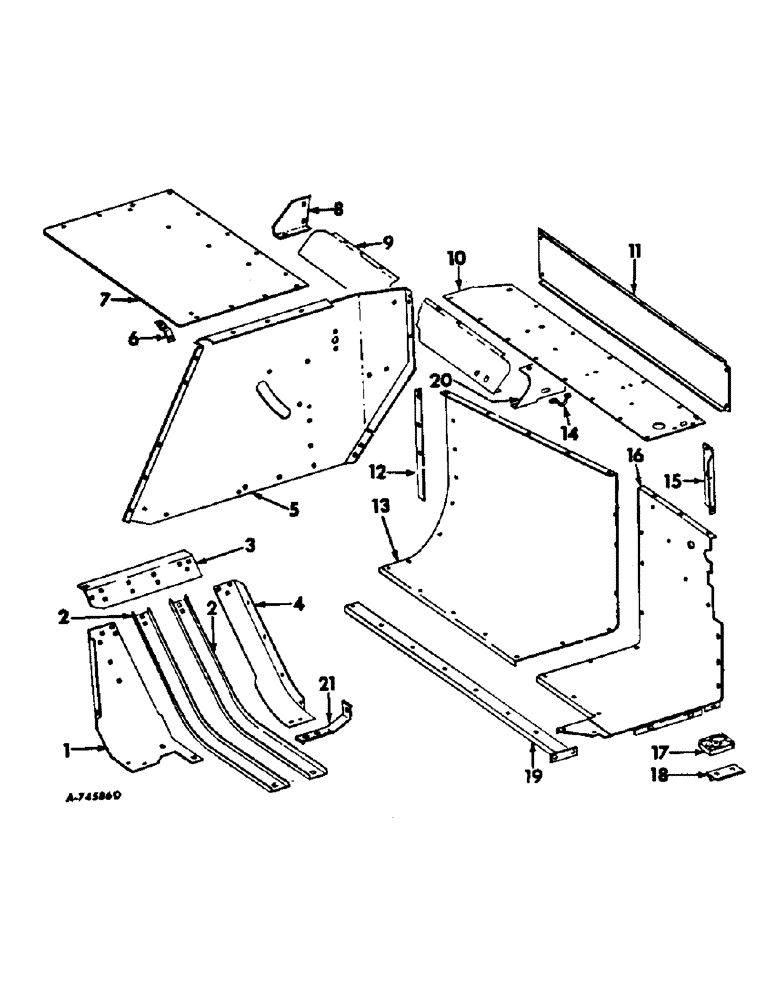

Запчасти Case IH 430 (E-09) - CROSS CONVEYOR AND FEED OPENING

1

667743R1

SHEET

right front top

1шт.

670454R1

NUT

5/16-18 speed grip

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

2

204142C1

CHANNEL

assy packer

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

WASHER, 3/8 C-Z med lock

6шт.

3

667745R1

SHEET

right center top

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd mach

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

4

667746R1

SHEET

right rear top

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

674212R1

SHEET

cross conveyor side

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

6

667742R1

STRAP

feed opening tie

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

7

674214R1

COVER

cross conveyor, for 430 Baler, 430T Balers 012280 and below, 430W Balers 001778 and below

1шт.

7

674215R1

COVER

cross conveyor, for 440 Baler, 430T Balers 012281 and up, 430W Balers 001779 and up

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 C-Z hex.

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

8

674124R1

SUPPORT

front sheet

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

672803R1

NUT

1/4-20 speed grip

1шт.

9

674122R1

SHEET, cross conveyor front, for 430 Balers, 430T Balers 012280 and below, 430W Balers 001778 and below

1шт.

9

674123R1

SUPPORT

SHEET, cross conveyor front, for 440 Balers, 430T Balers 012281 and up, 430W Balers 001779 and up

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd mach

9шт.

195701R1

BOLT, 1/4 x 5/8 znd hex-hd mach

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

15шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

7шт.

10

674221R1

TOP

twine can, for 440 Balers, 430T Balers 012281 and up, 430W Balers 01779 and up

1шт.

10

674222R1

TOP, twine can, for 430 Balers, 430T Balers 012280 and below, 430T Balers 001778 and below

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd mach, 8 for 440 Balers, 7 for 430 Balers

1шт.

180018

CONNECTING LINK

SCREW, 1/4 x 5/8 znd hex-hd cap

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8 for 440 Balers, 7 for 430 Balers 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 10 for 440 Balers, 9 for 430 Balers 1/4"

1шт.

21549R1

WASHER

9/32 x 3/4 x 18 ga C-Z

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

674225R1

PANEL

rear cross sheet, for 430T Baler, 430T Balers 012280 and below

1шт.

11

674226R1

PANEL

rear cross sheet, for 440T Baler, 430T Balers 012281 and up

1шт.

11

674227R1

PANEL, rear cross sheet, for 430W Baler, 430W Balers 001778 and below

1шт.

11

674228R1

PANEL

rear cross sheet, for 440W Baler, 430W Balers 001779 and up

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd mach, 10 for 440W, 8 for 440T Baler, 9 for 430 Balers

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8 for 440T, 10 for 440W Balers, 9 for 430 Baler 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 8 for 440T, 10 for 440W Balers, 9 for 430 balers 1/4"

1шт.

12

662151R1

BRACE

cross conveyor platform

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

13

662357R1

PLATFORM

cross conveyor, 430W Balers 002053 and below, 430T Balers 015560 and below, 440W Balers 003032 and below, 440T Balers 005493 and below

1шт.

13

204193C1

PLATFORM

cross conveyor, 430W Balers 002054 and up, 430T Balers 015561 and up, 440W Balers 003033 and up, 440T Balers 005494 and up

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd mach

10шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

10шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .065 C-Z

5шт.

14

655108R2

GUIDE

twine, 3 for twine Balers

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

6шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW, 10-24 x 3/8 C-Z slt-pan-hd mach

6шт.

120361

NUT,Hex Mach Screw, #10 - 24

6шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

15

674223R1

SHEET

rear filler, for 430T Baler, 430T Balers 012280 and below

1шт.

15

674224R1

SHEET

rear filler, for 440T Baler, 430T Balers 012281 and up

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 C-Z hex-hd cap

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd mach, 10 for 440T Baler, 9 for 430T Baler

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2 for 440T Baler, 1 for 430T Baler 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 3 for 440T Baler, 2 for 430T Baler 1/4"

1шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z, 3 for 440T Baler, 2 for 430T Baler

1шт.

15

674230R1

SUPPORT

rear cross deck sheet, for wire Balers

1шт.

19570R1

BOLT,Hex, 1/4" - 20 x 5/8", Gr 2

1/4 x 5/8 znd hex-hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

1шт.

16

674216R1

SHEET

ASSY, feed opening, for 430 Baler, 430T Balers 012280 and below, 430W Balers 001778 and below

1шт.

16

674219R1

SHEET

ASSY, feed opening, for 440 Baler, 430T Balers 012281 thru 015560, 430W Balers 001779 thru 002053, 440W Balers 003032 and below, 440T Balers 005493 and below

1шт.

16

204191C1

SHEET

ASSY, feed opening, 430W Balers 002054 and up, 430T Balers 015561 and up, 440W Balers 003033 and up, 440T Balers 005494 and up

1шт.

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW, 5/16-18 x 3/4 C-Z slt-truss hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd mach

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

17

672150R1

DEFLECTOR

feed opening

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21872R1

WASHER

13/32 x 5/8 x 16 ga

2шт.

18

374231R1

GUIDE, feed opening knife

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

19

674210R1

CHANNEL ASSY, cross conveyor support, for 440 Baler, 440W Balers 003032 and below, 440T Balers 005493 and below, 430T Balers 012281 thru 015560, 430T Balers 001779 thru 002053

1шт.

19

204187C1

CHANNEL ASSY, cross conveyor support, 430W Balers 002054 and up, 430T Balers 015561 and up, 440W Balers 003033 and up, 440T Balers 005494 and up

1шт.

19

662236R91

CHANNEL ASSY, cross conveyor support, for 430 Baler, 430T Balers 012280 and below, 430W Balers 001778 and below

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

S120377

NUT, 3/8-16 C-Z hex.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20

674121R1

SUPPORT

face plate corner

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

200884C2

STRAP

feed opening support

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21309R1

WASHER

13/32 x 7/8 x 7 ga C-Z, for wire Balers

1шт.
