Запчасти Case IH 430 (E-08) - WHEELS AND AXLES

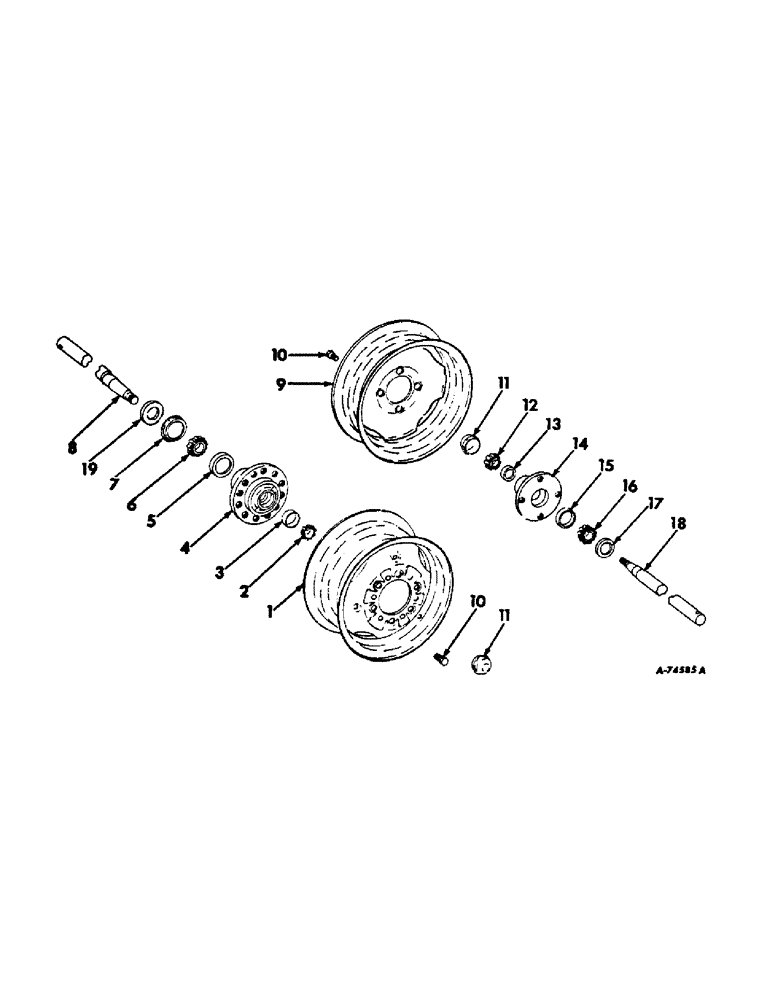

Схема запчастей Case IH 430 - (E-08) - WHEELS AND AXLES

Артикул

Название

Примечание

Количество

1

674431R1

RIM

ASSY, left wheel, for 760 x 15 tire, for 440 Baler

1шт.

1

674114R1

RIM ASSY LEFT WHEEL, for 430 Baler, for 640 x 15 tire

1шт.

2

519467R91

BEARING ASSY,0.8125" ID x 1.939" OD x 0.848"

ASSY, left wheel outer cone, for 430 Baler

1шт.

2

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, left wheel outer cone, for 440 Baler

1шт.

3

M32951

BEARING CUP,0.75" ID x 1.938" OD x 0.78125"

BEARING, left wheel outer cup, for 430 Balers

1шт.

3

651817R1

BEARING CUP

BEARING, left wheel outer cup, for 440 Baler

1шт.

4

662993R11

HUB

ASSY, wheel LH, for 430 Balers

1шт.

4

465497R11

HUB W/BEARING CUPS, left wheel, for 440 Baler

1шт.

5

ST991

BEARING CUP

BEARING, left wheel inner cup, for 430 Balers

1шт.

5

663558R1

BEARING CUP

BEARING, left wheel inner cup, for 440 Baler

1шт.

6

453279R91

ROLLER BEARING,1.375" ID x 2.717" OD x 1.0625"

ASSY, left wheel inner cone, for 430 Baler

1шт.

6

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, left wheel inner cone, for 440 Baler

1шт.

7

661876R91

OIL SEAL

SEAL, left wheel brg, for 430 Baler

1шт.

7

654674R91

OIL SEAL

left wheel grease, for 440 Baler

1шт.

8

674112R1

AXLE

SPINDLE, wheel LH, for 430 Baler

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 C-Z slt hex.

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

8

674113R1

SPINDLE

wheel LH, for 440 Balers

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2-13 x 3-1/4 hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex. jam

1шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga C-Z

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

9

662994R91

WHEEL

RIM ASSY, right wheel, for 500 x 15 tire

1шт.

10

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

10шт.

11

651194R1

CAP

hub, 2 for 430 Balers, 1 for 440 Balers

1шт.

11

663906R1

CAP

left wheel hub, for 440 Baler

1шт.

12

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, right wheel outer cone

1шт.

12

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

13

651814R1

BEARING CUP

BEARING, right wheel outer cup

1шт.

14

663054R91

HUB

ASSY, wheel RH

1шт.

15

651817R1

BEARING CUP

BEARING, right wheel inner cup

1шт.

16

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, right wheel inner cone

1шт.

17

663004R91

OIL SEAL

right wheel brg

1шт.

18

662981R1

SPINDLE

wheel RH

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 C-Z hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

5/8-18 C-Z slt hex.

1шт.

131016

WASHER

21/32 x 1-5/16 x .095 C-Z

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

19

654675R1

RING

left wheel oil seal wear, for 440 Baler

1шт.

Выбрано товаров: 47
