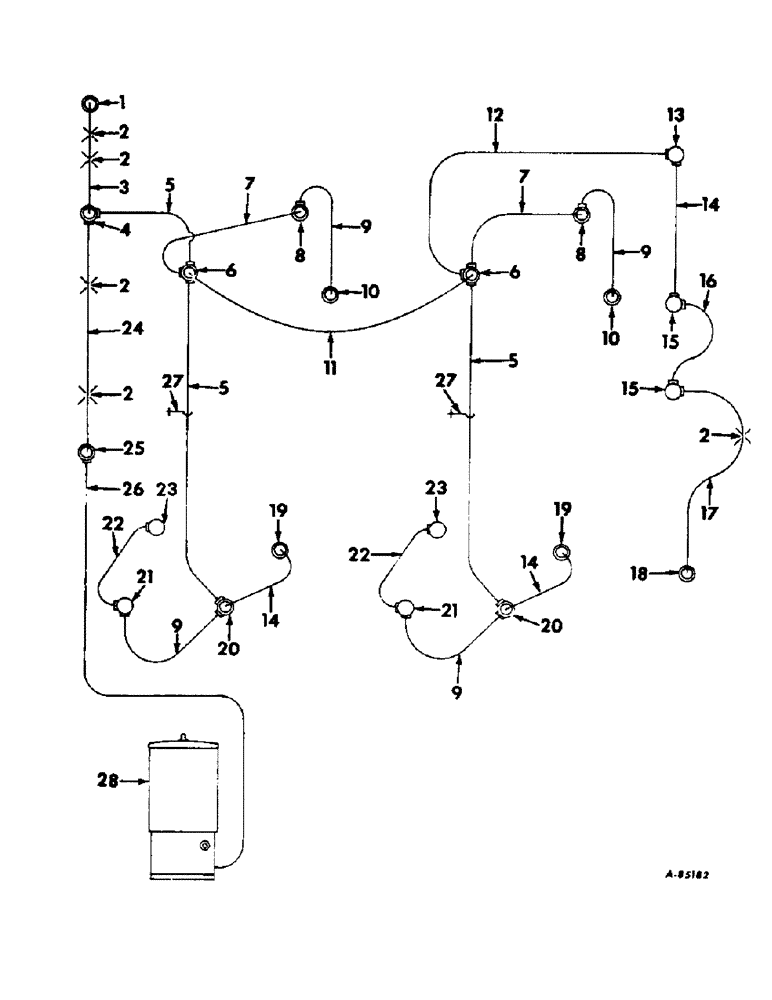

Запчасти Case IH 430 (E-79) - AUTOMATIC LUBRICATION ATTACHMENT VALVES, TUBING & FITTINGS - FOR WIRE BALERS ONLY

1

585856R91

VALVE ASSY, top terminating, plunger stop pivot

1шт.

1

586983R1

ADAPTER, 1/8 PTF 90 deg elbow

1шт.

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, for 3/8 bolt

5шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 znd hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

4шт.

3

NYLON TUBING, lub, 33 in.

1шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

4

668599R91

VALVE ASSY, top and 90 deg elbow, cord holder pinion shaft upper

1шт.

4

20204R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1/4-28 male x 1/8 pipe female 90 deg elbow

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

5

NYLON TUBING, lub, 10-1/2 in.

3шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

6

668598R91

VALVE ASSY, top and tee, knotter frame

2шт.

6

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1/4-28, 45 deg. angle elbow

2шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

7

NYLON TUBING, lub, 8 in.

2шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

8

588291R91

VALVE ASSY, 90 deg terminating, wire hook shaft, left and right

2шт.

8

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1/4-28, 45 deg. angle elbow

2шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

9

NYLON TUBING, lub, 7 in.

1шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

10

585854R91

VALVE ASSY, top terminating, wire hook shaft, lower left and right

2шт.

10

20204R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1/4-28 male x 1/8 female 90 deg elbow

2шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

11

NYLON TUBING, lub, 19 in.

1шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

12

NYLON TUBING, lub, 15-1/2 in.

1шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

13

631345R91

VALVE ASSY, 90 deg elbow, front bearing, rear packer shaft

1шт.

14

NYLON TUBING, lub, 6-1/2 in.

3шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

15

631345R91

VALVE ASSY, 90 deg elbow, twister drive gear insert, rear brg., rear packer shaft

2шт.

16

NYLON TUBING, lub, 11 in.

1шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

17

NYLON TUBING, lub, 29-1/2 in.

1шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

18

585854R91

VALVE ASSY, top terminating, needle pivot bearing

1шт.

19

585854R91

VALVE ASSY, top terminating, disk pinion shaft, upper left and right

2шт.

19

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1/4-28 45 deg. angle elbow

2шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

20

668599R91

VALVE ASSY, top and 90 deg elbow, disk pinion shaft, lower left and right

2шт.

20

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1/4-28 45 deg. angle elbow

2шт.

20

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

21

585860R91

VALVE ASSY, 90 deg terminating, wire holder shaft, upper left and right

2шт.

21

20204R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1/4-28 male x 1/8 pipe female 90 deg elbow

2шт.

21

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

22

NYLON TUBING, lub, 4-1/2 in.

2шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

23

585857R91

VALVE ASSY, 90 deg terminating, wire holder shaft, lower left and right

2шт.

23

20204R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1/4-28 male x 1/8 pipe female 90 deg elbow

2шт.

23

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

24

NYLON TUBING, lub, 30 in.

1шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

25

588291R91

VALVE ASSY, 90 deg terminating, needle pivot bearing

1шт.

26

NYLON TUBING, lub, 17 in.

1шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

27

668555R1

CLIP, 3/16 tube open

2шт.

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, 10-32 x 1/2 znd cr-rd-hd tap

2шт.

28

674950R91

PUMP ASSY, lubrication for components see list of parts under detail of pump and timer

1шт.
