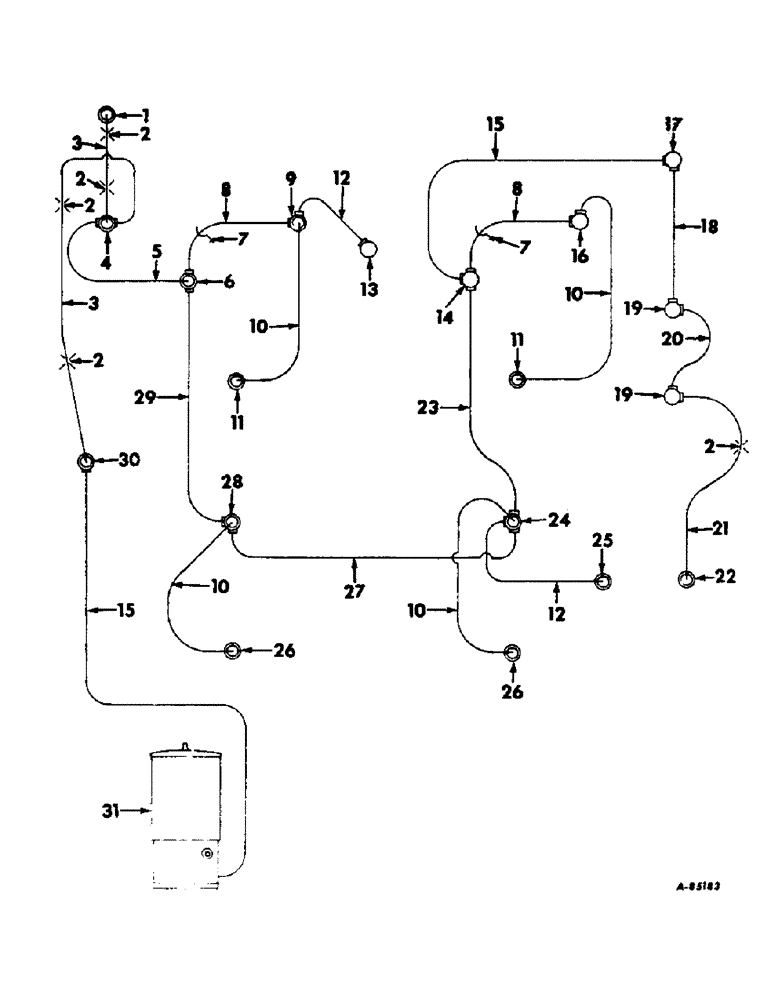

Запчасти Case IH 430 (E-77) - AUTOMATIC LUBRICATION ATTACHMENT VALVES, TUBING & FITTINGS - FOR TWINE BALERS ONLY

1

585856R91

VALVE ASSY, top terminating, plunger stop pivot

1шт.

1

586983R1

ADAPTER, 1/8 PTF 90 deg elbow

1шт.

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, for 3/8 bolt

5шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/4 znd hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

4шт.

3

NYLON TUBING, lub, 33 in.

2шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

4

585865R91

VALVE ASSY, knotter shaft

1шт.

5

NYLON TUBING, lub, 8-1/2 in.

1шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

6

631347R91

VALVE ASSY, knotter frame pivot

1шт.

7

668555R1

CLIP, 3/16 tube open

2шт.

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, 10-32 x 1/2 znd cr-rd-hd tap

2шт.

8

NYLON TUBING, lub, 11-1/2 in.

2шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

9

668599R91

VALVE ASSY, Bill Hook drive shaft upper

1шт.

9

586983R1

ADAPTER, 1/8 PTF 90 deg elbow

1шт.

9

126121

LUBE NIPPLE,1/8"-27 NPT x 1.36" lg

FITTING, 1/8-27 PTF str lub

1шт.

10

NYLON TUBING, lub, 5-1/2 in.

4шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

11

585854R91

VALVE ASSY, Bill Hook drive shaft lower

2шт.

11

20204R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1/4-28 male x 1/8 female 90 deg elbow

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

12

NYLON TUBING, lub, 7-1/2 in.

2шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

13

585857R91

VALVE ASSY, cord holder shaft

1шт.

13

586983R1

ADAPTER, 1/8 PTF 90 deg elbow

1шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

14

202461C14

VALVE ASSY, knotter frame pivot

1шт.

15

NYLON TUBING, lub, 17 in.

2шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

16

585860R91

VALVE ASSY, Bill Hook drive shaft upper

1шт.

16

586983R1

ADAPTER, 1/8 PTF 90 deg elbow

1шт.

16

126121

LUBE NIPPLE,1/8"-27 NPT x 1.36" lg

FITTING, 1/8-27 PTF str lub

1шт.

17

631345R91

VALVE ASSY, rear packer shaft front bearing

1шт.

18

NYLON TUBING, lub, 6-1/2 in.

1шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

19

631345R91

VALVE ASSY, knotter drive gear insert

2шт.

20

NYLON TUBING, lub, 11 in.

1шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

21

NYLON TUBING, lub, 29-1/2 in.

1шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

22

585854R91

VALVE ASSY, needle pivot

1шт.

23

NYLON TUBING, lub, 6-1/2 in.

1шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

24

202460C1

VALVE ASSY, cord holder pinion shaft, upper

1шт.

24

585626R1

ADAPTER, 1/8 PTF 20 deg elbow

1шт.

24

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

25

585854R91

VALVE ASSY, cord holder shaft

1шт.

25

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.

26

585854R91

VALVE ASSY, cord holder pinion shaft lower

2шт.

27

NYLON TUBING, lub, 19 in.

1шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

28

668599R91

VALVE ASSY, cord holder pinion shaft upper

1шт.

28

585626R1

ADAPTER, 1/8 PTF 20 deg elbow

1шт.

28

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

29

NYLON TUBING, lub, 9-1/2 in.

1шт.

Order nylon tubing by the specified lengths from a 50- foot roll marked, 997140R1.

1шт.

30

588291R91

VALVE ASSY, needle pivot

1шт.

31

674950R91

PUMP ASSY, lubrication for components see list of parts under detail of pump and timer

1шт.
