Запчасти Case IH 430 (E-76) - AUTOMATIC LUBRICATION ATTACHMENT

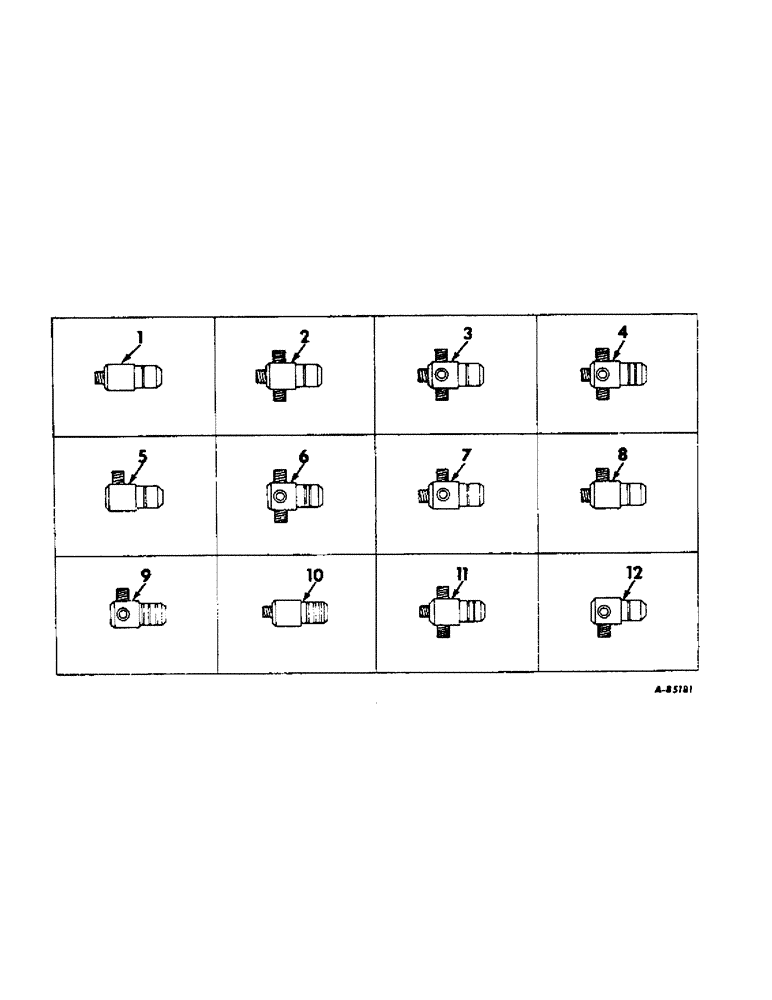

Схема запчастей Case IH 430 - (E-76) - AUTOMATIC LUBRICATION ATTACHMENT

Артикул

Название

Примечание

Количество

1

585854R91

VALVE ASSY, top terminating, snap-on, 1 ring .006 capacity

1шт.

2

585865R91

VALVE ASSY, top and 180 deg, snap-on, 1 ring .006 capacity

1шт.

3

202460C1

VALVE ASSY, top and tee

1шт.

4

668598R91

VALVE ASSY, top and tee, snap-on, 2 rings .009 capacity

1шт.

5

585857R91

VALVE ASSY, 90 deg terminating, snap-on, 1 ring .006 capacity

1шт.

6

202461C1

VALVE ASSY, tee

1шт.

7

668599R91

VALVE ASSY, top and 90 deg elbow, snap-on, 1 ring .006 capacity

1шт.

8

588291R91

VALVE ASSY, 90 deg terminating, snap-on, 1 ring .006 capacity

1шт.

9

631345R91

VALVE ASSY, 90 deg elbow, snap-on, 3 rings .021 capacity

1шт.

10

585856R91

VALVE ASSY, top terminating, snap-on, 3 rings .021 capacity

1шт.

11

631347R91

VALVE ASSY, top and straight thru

1шт.

12

585860R91

VALVE ASSY, 90 degree terminating

1шт.

Выбрано товаров: 12
