Запчасти Case IH 430 (E-73[B]) - FLYWHEEL AND BELT SHIELD, WHEN ORDERED

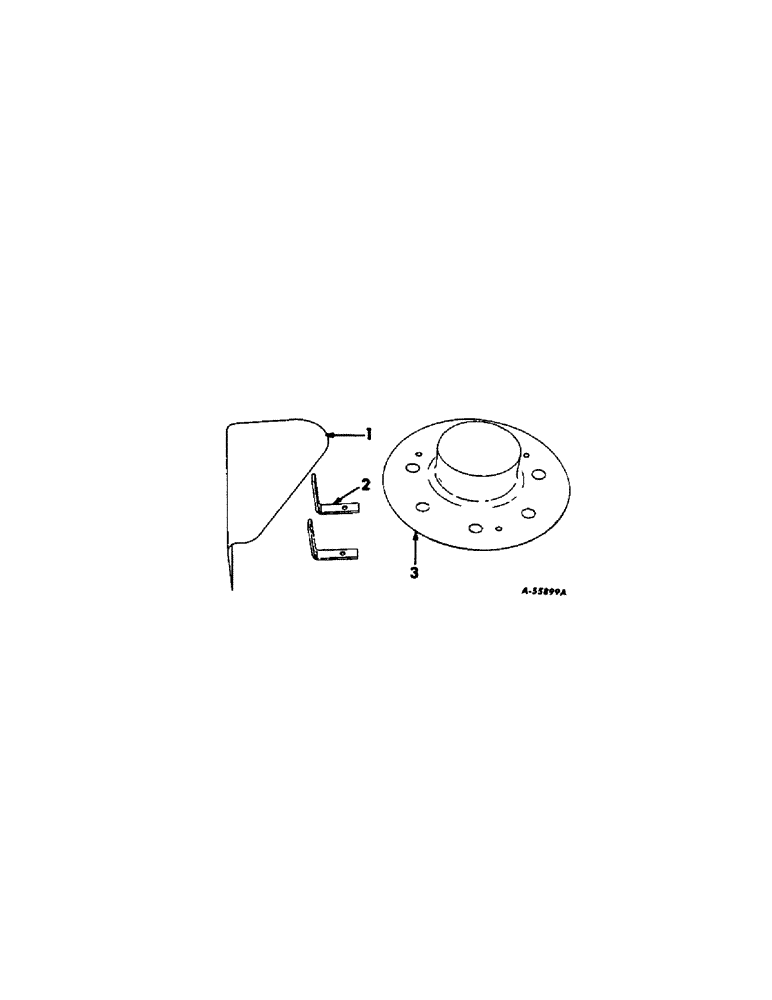

Схема запчастей Case IH 430 - (E-73[B]) - FLYWHEEL AND BELT SHIELD, WHEN ORDERED
1
3
2

Артикул

Название

Примечание

Количество

1

671124R91

SHIELD W/PRODUCT GRAPHIC, belt

1шт.

2

663663R1

BRACKET, shield support

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

663662R2

SHIELD, flywheel

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

Выбрано товаров: 9
