Запчасти Case IH 430 (E-71[A]) - ENGINE SHUT-OFF ATTACHMENT FOR WIRE BALERS, WHEN ORDERED

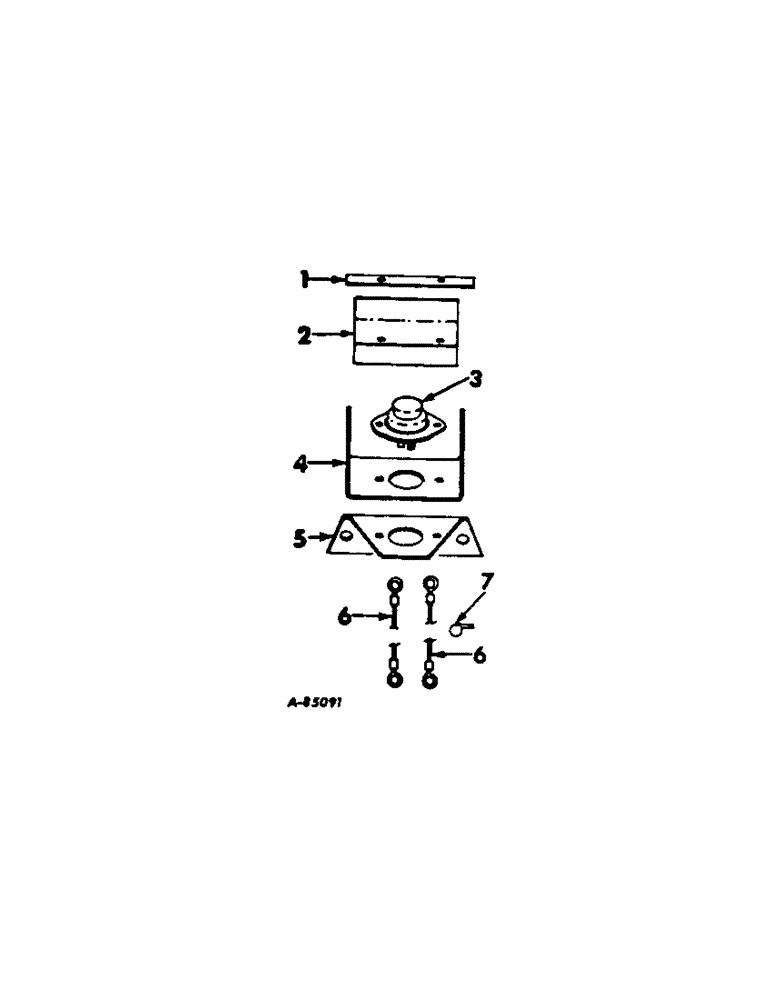

Схема запчастей Case IH 430 - (E-71[A]) - ENGINE SHUT-OFF ATTACHMENT FOR WIRE BALERS, WHEN ORDERED
3
6
2
1
7
5
4
6

Артикул

Название

Примечание

Количество

1

671104R1

RETAINER, pressure plate

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 C-Z slt-pan-hd mach

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

2

671103R1

PLATE, pressure

1шт.

3

366317R93

SWITCH

ASSY, push button

1шт.

3

366317R93GV

CONTROL

Value, Control Switch

1шт.

4

671102R1

PLATE, switch mounting

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 C-Z slt-pan-hd mach

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

5

671101R1

SUPPORT, switch mounting plate

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

664547R91

WIRE, lead

2шт.

7

140568

CLAMP

CLIP, 5/16 x 9/16 No. 5 closed

3шт.

Выбрано товаров: 17
