Запчасти Case IH 430 (E-70) - WISCONSIN ENGINE ATTACHMENT ELECTRICAL SYSTEM, 12 VOLT, WHEN ORDERED

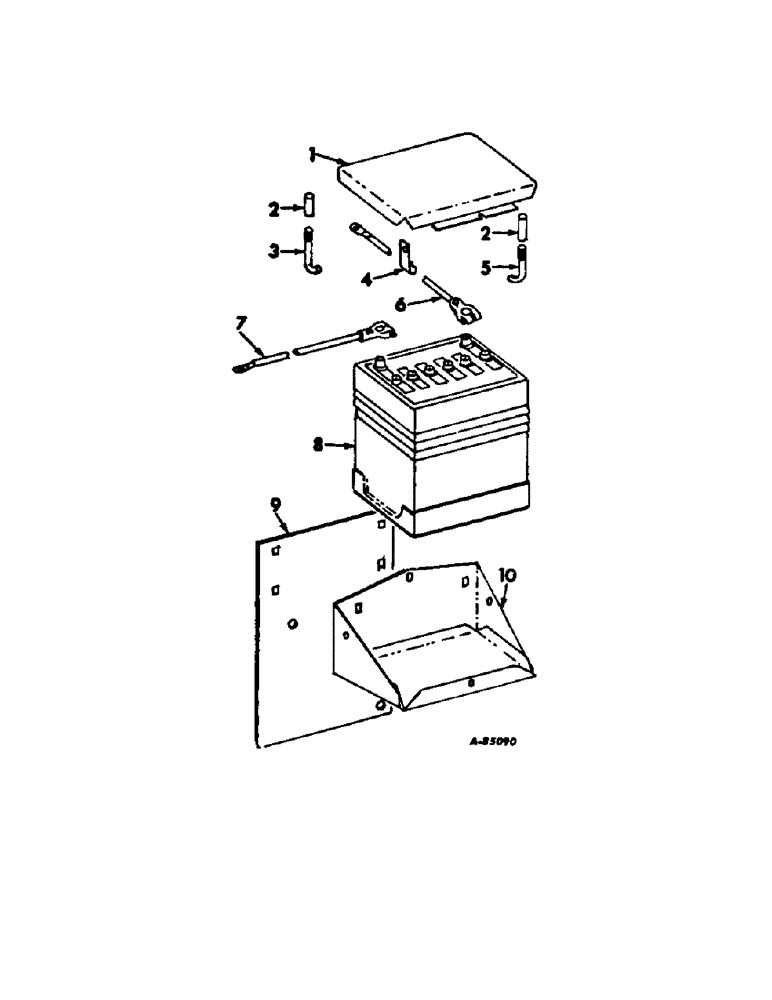

Схема запчастей Case IH 430 - (E-70) - WISCONSIN ENGINE ATTACHMENT ELECTRICAL SYSTEM, 12 VOLT, WHEN ORDERED
4
8
3
10
5
7
1
6
2
2
9

Артикул

Название

Примечание

Количество

1

614129R11

COVER ASSY, battery

1шт.

2

PO22778

SPACER,1/4" Pipe x 2"

Hold down bolt 1/4" Pipe x 2"

1шт.

3

614132R1

BOLT, battery box-long

1шт.

665621R1

NUT, 1/4-20 wing

1шт.

4

56277D

CLIP, cable

1шт.

5

614131R1

BOLT, battery box-short

1шт.

86627130

WING NUT,1/4"-20

NUT, 1/4-20 znd wing

1шт.

6

672143R91

CABLE, Serial Range: battery-starter

1шт.

7

672144R91

CABLE ASSY, Serial Range: battery-ground

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

BATTERY, 12 volt, not a part of engine attachment

1шт.

9

674481R1

SUPPORT, battery tray

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga znp

2шт.

10

614126R92

TRAY ASSY, battery

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Выбрано товаров: 22
