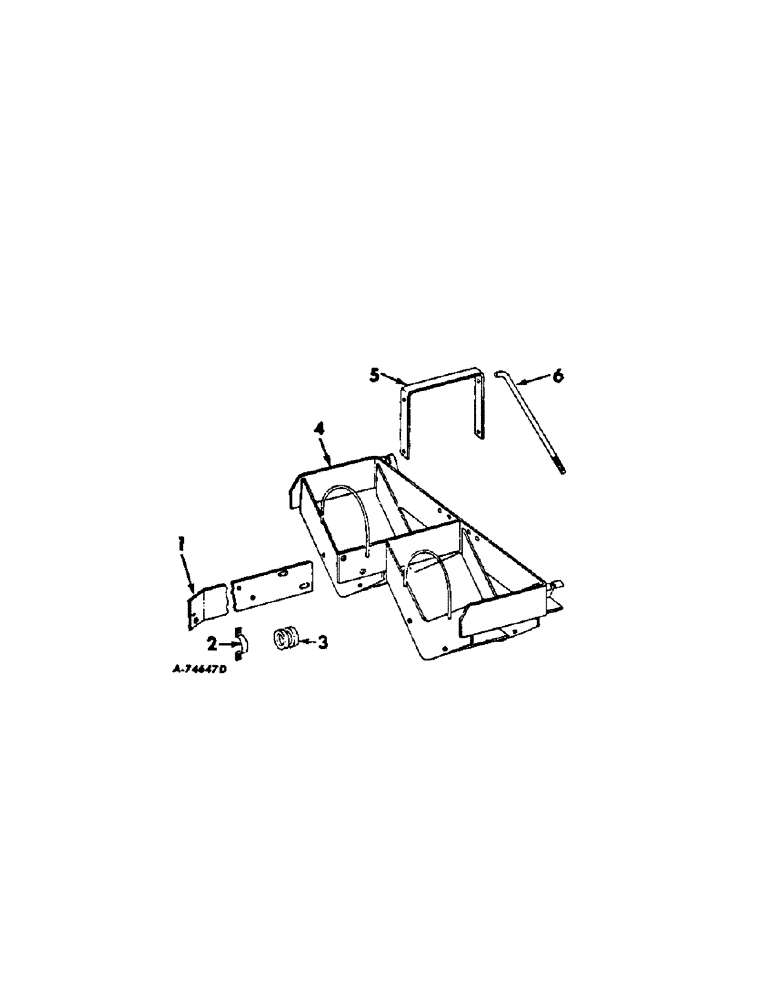

Запчасти Case IH 430 (E-70[A]) - TWO COIL WIRE CONTAINER FOR WIRE BALERS WHEN ORDERED

1

674380R2

STABILIZER

wire container

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd mach

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

2

11792P

HOLDER

BRACKET, wire guide

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 znd hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

11833PB

GUIDE

wire

1шт.

4

667874R92

NO LONGER SERVICED

CONTAINER ASSY, two coil wire

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

667819R1

CAM

STRAP, retainer, 430W Balers 001503 and below, 440W Balers 002028 and below

2шт.

22750R1

PIN

1/4 x 5/8 znp std-hd

4шт.

119117

COTTER PIN,3/32" x 1/2"

PIN - COTTER, 3/32 x 1/2 znp

4шт.

20600R1

WASHER

9/32 x 3/4 x 11 ga C-Z

2шт.

6

667858R1

ROD

retainer, 430W Balers 001503 and below, 440W Balers 002028 and below

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065 ga C-Z

2шт.

7500032

BUSHING

NUT, 5/16-18 C-Z wing

2шт.
