Запчасти Case IH 430 (E-68) - WISCONSIN ENGINE ATTACHMENT, ENGINE AND ENGINE MOUNTING PARTS

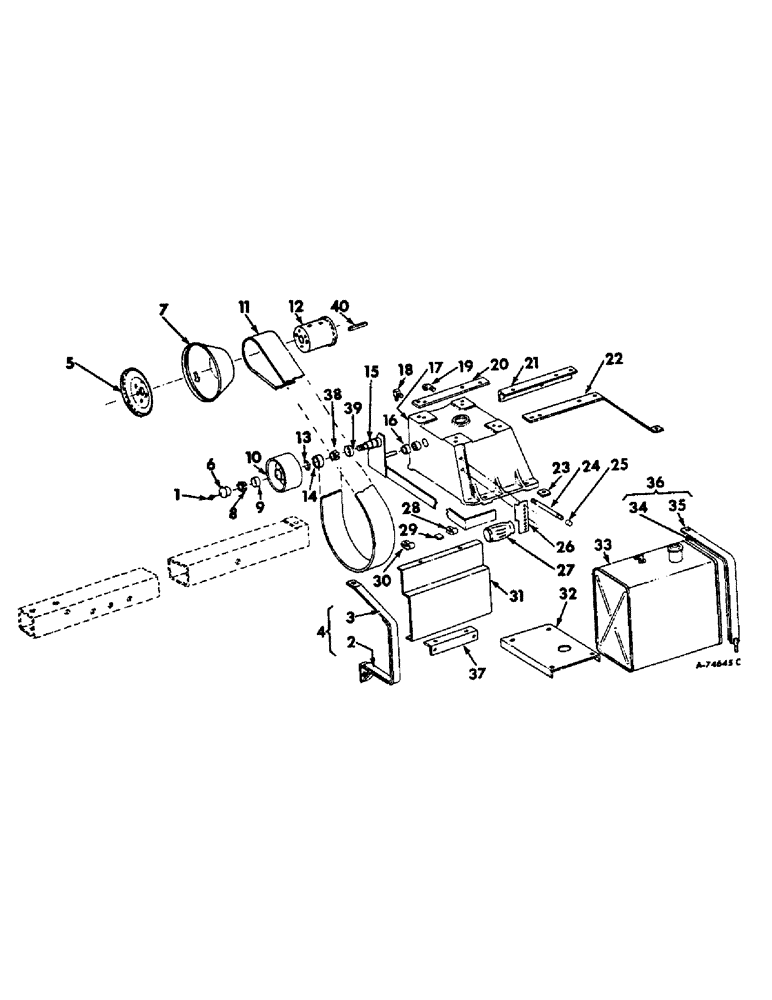

Схема запчастей Case IH 430 - (E-68) - WISCONSIN ENGINE ATTACHMENT, ENGINE AND ENGINE MOUNTING PARTS

Артикул

Название

Примечание

Количество

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NS 3/4 str lub

1шт.

2

WEBBING, fuel tank strap, use 19-3/8 in. of 1-1/4 in. webbing from a roll marked 990539R1

2шт.

3

(Not serviced separately), order 667970R91

1шт.

4

667970R91

STRAP ASSY, fuel tank, 2 for units A, B, C and D

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 C-z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga C-Z

4шт.

5

668110R1

RETAINER, belt, unit E

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8 x 7/8 C-Z hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

477589R1

WASHER

13/32 x 1-1/2 x 11 ga C-Z

3шт.

6

589951R1

PLUG

CAP, hub pulley

1шт.

7

661249R1

WHEEL, crank, units A, B, C and D

1шт.

8

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, idler pulley outer cone

1шт.

8

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

608701R1

WASHER

21/32 x 1-1/4, 16 ga C-Z

2шт.

125267

NUT

5/8-18 C-Z slt hex.

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

9

651814R1

BEARING CUP

BEARING, idler pulley outer cup

1шт.

10

564407R1

PULLEY, engine idler

1шт.

11

662339R1

BELT,3.50" W x 97.75" L

Engine drive, Units A, B, C and D 3.50" W x 97.75" L

1шт.

11

668111R1

BELT,3.50" W

Drive, Unit E 3.50" W

1шт.

12

662053R11

PULLEY W/SET SCREWS, engine

1шт.

668806R1

SCREW, 3/8-16 x 3/4 hex. soc-hd cup pt nylock set

2шт.

13

564405R1

RING, SNAP

RING, idler pulley snap

1шт.

14

651817R1

BEARING CUP

BEARING, idler pulley inner cup

1шт.

15

668946R91

BRACKET ASSY, engine idler

1шт.

23183R1

WASHER

29/32 x 1-3/8 x 16 ga C-Z, (or as required)

1шт.

21762R1

WASHER

29/32 x 1-3/8 x 10 ga C-Z

3шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

16

667942R1

BUSHING, engine idler support

2шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

SCREW, 7/16-14 x 2 C-Z hex-hd cap

4шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 C-Z hex. lock

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

21760R1

WASHER,0.47" ID x 0.88" OD x 0.19" Thk

15/32 x 7/8 x 7 ga C-Z

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga znp

2шт.

17

663935R21

SUPPORT W/BUSHINGS, engine

1шт.

18

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

tube, for fuel line, units A, B, C and D 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

19

86534426

ELBOW

street 1/8, for fuel line, units A, B, C and D

1шт.

20

668105R1

ADAPTER, engine base RH, unit E

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 znp hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

21

668034R2

ANGLE, bale chamber reinforcement

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach, 4 for units A and D, 2 for units B, C and E

1шт.

120377

NUT,3/8" - 16, Gr 5

4 for units A and D; 2 for units B, C and E 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 4 for units A and D; 2 for units B, C and E 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga znp

2шт.

22

668104R1

ADAPTER, engine base LH, unit E

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

23

662338R1

SPACER

engine base

2шт.

24

12989R1

NIPPLE, 3/8 x 1-1/2, for oil drain Nipple, 3/8" NPT x 7 1/2"

1шт.

25

110675

CAP,3/8" NPT

pipe

1шт.

26

659495R1

STOP, engine idler lever

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

27

662340R1

GRIP

lever, replaces 66930R1

1шт.

28

27385D

CLIP, loom for 3/8 bolt, for fuel line, units A, B, C and D

1шт.

29

52728D

CUSHION, fuel line felt

2шт.

30

27386D

CLIP, loom for 1/2 bolt, for fuel line

1шт.

31

667968R1

SPACER, fuel tank

1шт.

32

668410R1

SUPPORT, fuel tank, unit E

1шт.

33

668690R91

TANK W/CAP, fuel, unit E

1шт.

34

WEBBING, fuel tank strap, use 22 in. of 1-1/4 in. webbing from a roll marked 990539R1, unit E

2шт.

35

(Not serviced separately), order 668112R91

1шт.

36

668112R91

STRAP ASSY, fuel tank, unit E

2шт.

37

667969R1

SUPPORT, fuel tank, units A, B, C and D

1шт.

38

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, idler pulley inner cone

1шт.

39

564403R91

SEAL

engine idler pulley oil

1шт.

40

657205R1

KEY, 3/8 x 3-1/4 sq parallel 3/8" Sq x 3 1/4", Par

1шт.

1001721R1

DECAL, arrow, on crank wheel, units A, B, C & D

1шт.

Выбрано товаров: 75
