Запчасти Case IH 430 (E-66) - POWER TAKE-OFF DRIVE SHAFTS, TWO KNUCKLE, FOR 430 BALER, WHEN ORDERED

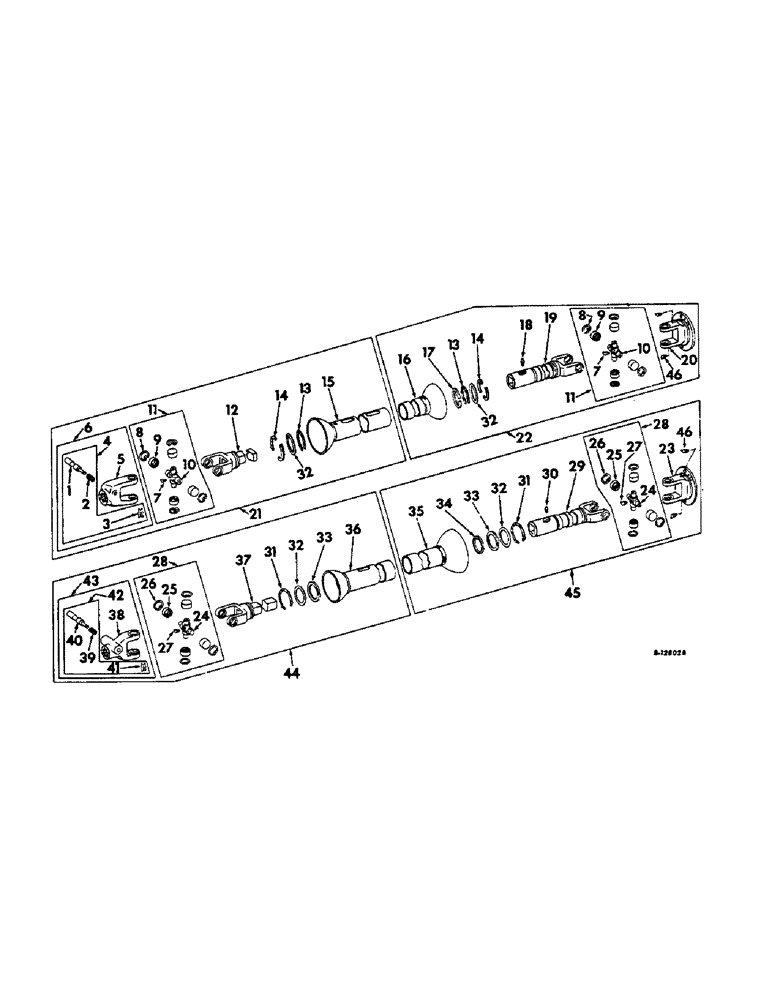

Схема запчастей Case IH 430 - (E-66) - POWER TAKE-OFF DRIVE SHAFTS, TWO KNUCKLE, FOR 430 BALER, WHEN ORDERED

Артикул

Название

Примечание

Количество

1

(Not serviced separately), order 455346R21

1шт.

2

455347R1

VALVE SPRING

SPRING, lock pin

1шт.

3

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, lock

1шт.

4

455346R21

PIN

lock

1шт.

5

(Not serviced separately), order 668335R11

1шт.

6

668335R11

FORK

YOKE W/LOCK PIN

1шт.

7

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8 65 deg lub

2шт.

8

667498R1

RING

SNAP RING, cross brg retainer

8шт.

9

667497R91

BEARING ASSY

cross

8шт.

10

(Not serviced separately), order 667496R91

1шт.

11

667496R91

SPIDER ASSY.

KIT, cross repair

2шт.

12

668334R91

YOKE AND SHAFT, tractor half

1шт.

13

613436R1

CLAMP

RING, snap

2шт.

14

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

2шт.

15

668333R1

SHIELD

outer

1шт.

16

668338R1

SHIELD

inner

1шт.

17

613439R1

BRACKET

BEARING, center nylon

1шт.

18

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 str lubrication

1шт.

19

668339R91

YOKE AND TUBE, implement half 22.62" Length

1шт.

20

663101R92

YOKE

implement

1шт.

21

668331R91

SHAFT

tractor half, chain belt

1шт.

22

668332R91

SHAFT, implement half, chain belt

1шт.

23

663101R92

YOKE

flanged

1шт.

24

(Not serviced separately), order 569047R91

1шт.

25

569044R91

BEARING ASSY

needle

8шт.

26

576240R1

RING, bearing retainer snap

8шт.

27

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 65 deg lub

2шт.

28

569047R91

REPAIR KIT

KIT, cross repair

2шт.

29

667817R91

YOKE

AND TUBE

1шт.

30

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 str lubrication

1шт.

31

613436R1

CLAMP

RING, bearing retainer snap

2шт.

32

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

4шт.

33

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

2шт.

34

613439R1

BRACKET

BEARING, nylon

1шт.

35

668404R91

SHIELD

inner

1шт.

36

668405R91

SHIELD

outer

1шт.

37

667816R91

YOKE

AND SHAFT, rectangular

1шт.

38

(Not serviced separately), order 568100R92

1шт.

39

455347R1

VALVE SPRING

SPRING, lock pin

1шт.

40

(Not serviced separately), order 455346R21

1шт.

41

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, lock

1шт.

42

455346R21

PIN

unit lock

1шт.

43

568100R92

YOKE

W/QUICK ATTACHING PIN

1шт.

44

668370R91

JOINT

SHAFT, tractor half, Rockwell, standard

1шт.

45

668371R92

JOINT

SHAFT, mach half, Rockwell, standard

1шт.

46

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg self tap lub

4шт.

Выбрано товаров: 46
