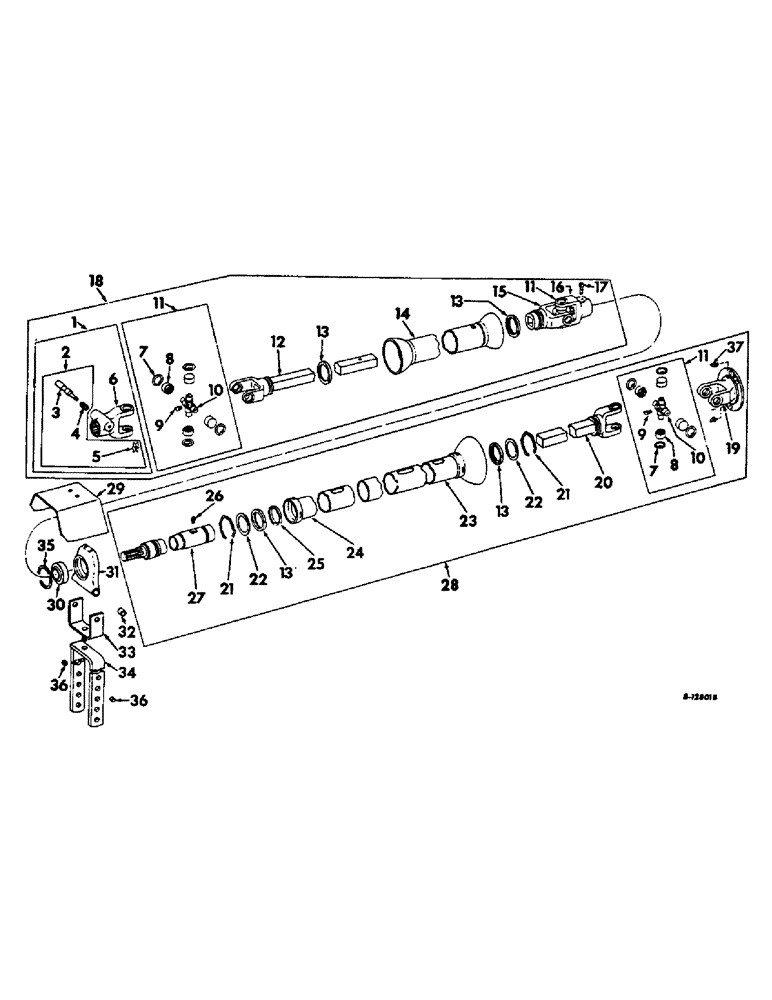

Запчасти Case IH 430 (E-64) - POWER TAKE-OFF DRIVE SHAFTS, THREE KNUCKLE

1

568100R92

YOKE

W/LOCK PIN

1шт.

2

660484R21

FORK

YOKE W/LOCK PIN

1шт.

For heavy duty three knuckle drive shaft.

1шт.

2

455346R21

PIN

lock

1шт.

3

NSS

NOT SOLD SEPARAT

(Not serviced separately), order 455346R21

1шт.

4

455347R1

VALVE SPRING

SPRING, lock pin

1шт.

5

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, lock

1шт.

6

NSS

NOT SOLD SEPARAT

(Not serviced separately), order 568100R92

1шт.

6

NSS

NOT SOLD SEPARAT

(Not serviced separately), order 660484R21

1шт.

For heavy duty three knuckle drive shaft.

1шт.

7

576420R1

RING

SNAP RING

12шт.

7

495962R1

RING

SNAP RING

12шт.

For heavy duty three knuckle drive shaft.

1шт.

8

569044R91

BEARING ASSY

needle

12шт.

8

661671R91

JOINT

BEARING, needle

12шт.

For heavy duty three knuckle drive shaft.

1шт.

9

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 65 deg angle lub

3шт.

10

271284

YOKE

1/8-27 65 deg angle lub

3шт.

10

NSS

NOT SOLD SEPARAT

(Not serviced separately), order 569047R91

1шт.

10

NSS

NOT SOLD SEPARAT

(Not serviced separately), order 660116R91

1шт.

For heavy duty three knuckle drive shaft.

1шт.

11

569047R91

REPAIR KIT

KIT, cross repair

3шт.

11

660116R91

NUT

KIT, cross repair

3шт.

For heavy duty three knuckle drive shaft.

1шт.

12

666734R91

YOKE

AND SHAFT

1шт.

12

666741R91

YOKE

AND SHAFT

1шт.

For heavy duty three knuckle drive shaft.

1шт.

22970R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

1шт.

13

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

4шт.

14

666735R91

SHIELD

1шт.

14

666742R91

SHIELD

1шт.

For heavy duty three knuckle drive shaft.

1шт.

15

666736R1

YOKE

1шт.

15

666743R1

YOKE

1шт.

For heavy duty three knuckle drive shaft.

1шт.

16

576433R1

FORK

YOKE, splined

1шт.

16

660489R1

YOKE

splined

1шт.

For heavy duty three knuckle drive shaft.

1шт.

17

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, set

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

18

666729R91

SHAFT, front half

1шт.

18

666731R91

GASKET

SHAFT, front half

1шт.

For heavy duty three knuckle drive shaft.

1шт.

19

663101R92

YOKE

flanged

1шт.

19

674862R2

YOKE

flanged

1шт.

For heavy duty three knuckle drive shaft.

1шт.

20

666737R91

YOKE

AND SHAFT

1шт.

20

666744R91

YOKE

AND SHAFT

1шт.

For heavy duty three knuckle drive shaft.

1шт.

21

613436R1

CLAMP

SNAP RING

2шт.

22

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

23

666739R91

SHIELD, outer

1шт.

23

666745R91

SHIELD, outer

1шт.

For heavy duty three knuckle drive shaft.

1шт.

24

666738R91

SHIELD, inner

1шт.

24

666746R91

RETAINER

SHIELD, inner

1шт.

For heavy duty three knuckle drive shaft.

1шт.

25

613439R1

BRACKET

BEARING, inner shield

1шт.

26

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 str lubrication

1шт.

27

666740R91

SHAFT

TUBE AND SLEEVE

1шт.

27

666747R91

TUBE ASSY.,2.125" OD, 24.625" Length

TUBE AND SLEEVE

1шт.

For heavy duty three knuckle drive shaft.

1шт.

28

666730R92

SHAFT, rear half

1шт.

28

674861R92

SHAFT, rear half

1шт.

For heavy duty three knuckle drive shaft.

1шт.

29

674737R11

SHIELD

W/SUPPORT GRAPHIC, PTO brg box

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

30

613174R91

BALL BEARING,35 mm ID x 72 mm OD x 25 mm

ASSY, propellar shaft front

1шт.

31

662022R1

BOX

power take-off bearing center

1шт.

32

674733R1

SPACER

BUSHING, power take-off pedestal

1шт.

189314

BOLT,Hex, 1/2" - 13 x 4 3/4", Gr 5

SCREW, 1/2-13 x 4-3/4 znd hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

33

674734R1

BRACKET

PIVOT ASSY, bracket

1шт.

473873R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-16 two way lock

1шт.

20825R1

WASHER

25/32 x 2 x 11 ga C-Z

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex. lock

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

34

674729R1

RING

PEDESTAL ASSY, power take-off

1шт.

21395R1

SCREW,Hex, 1/2"-13 x 5 1/4", G5

1/2-13 x 5/1-4 znd hex-hd cap

1шт.

35

UA20551

RING

propeller shaft bearing snap

1шт.

36

674732R1

SPACER

BUSHING, power take-off pedestal

2шт.

37

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg self tap lub

2шт.
