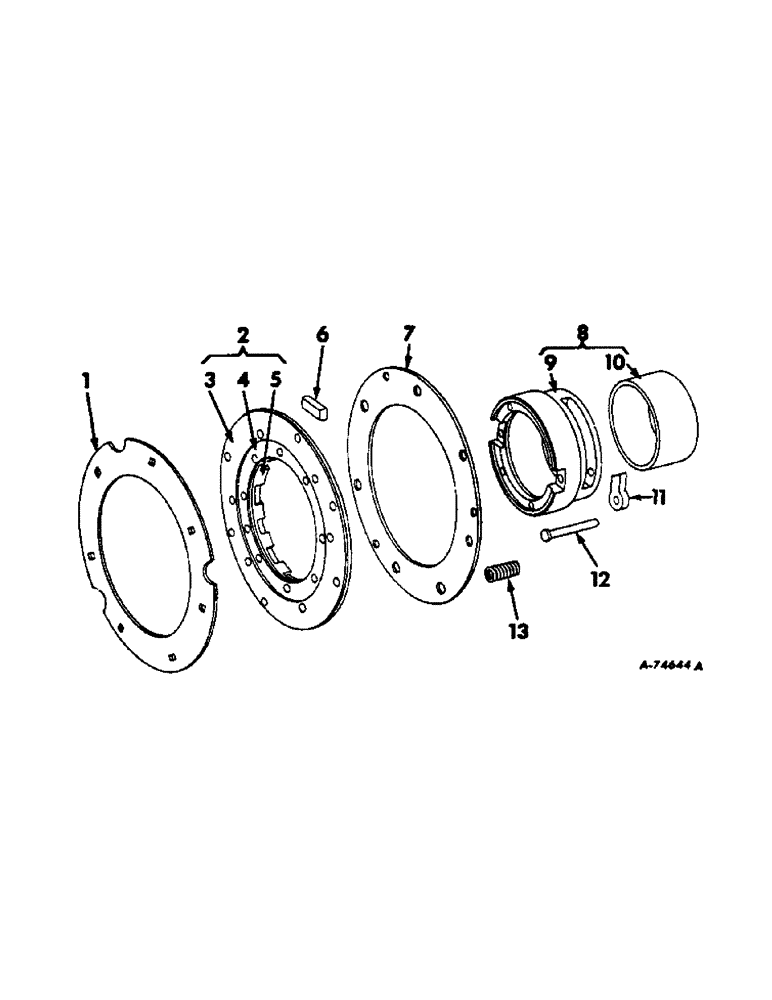

Запчасти Case IH 430 (E-62) - POWER TAKE-OFF DRIVE SHAFT CLUTCH, WHEN ORDERED

1

662270R1

PLATE

clutch pressure

1шт.

2

662043R91

DISC

ASSY, clutch

1шт.

3

662045R11

FACING, CLUTCH

FACING W/RIVETS, clutch

1шт.

113342

RIVET,Tr Hd, 3/16" x 3/8", Brass

12шт.

4

662046R1

DISC, clutch

1шт.

22757R1

RIVET, 1/4 x 5/8 znp 54 deg csk-hd solid

10шт.

5

662044R1

HOUSING, clutch lug

1шт.

6

664546R11

SPACER

ASSY, clutch, set of 7

1шт.

7

662269R1

PLATE

clutch back

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

8

662014R11

CARRIER

CLUTCH W/BUSHING, over-running

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

9

(Not serviced separately), order 662014R11

1шт.

10

662078R1

BUSHING

over-running clutch

1шт.

11

662241R1

RATCHET

DOG, over-running clutch

2шт.

12

662558R1

PIN

.496 x 1-7/8 rod end

2шт.

13

M1015

SPRING

clutch

7шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 C-Z sq-nk crg

7шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock

7шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

7шт.
