Запчасти Case IH 430 (E-04) - HITCH

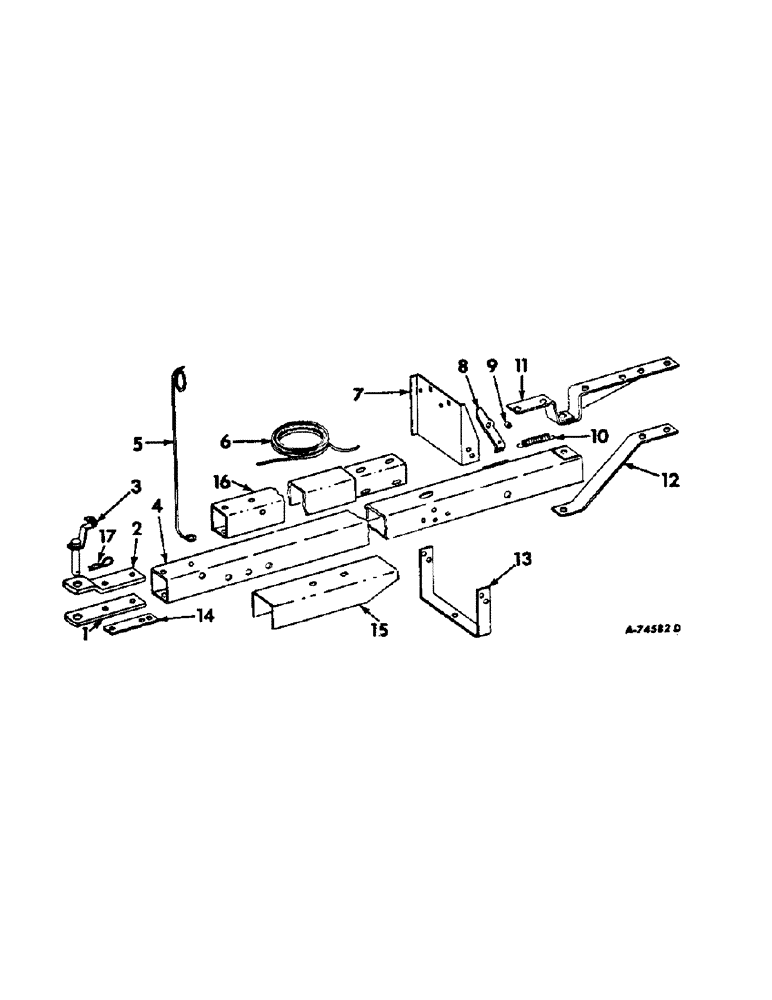

Схема запчастей Case IH 430 - (E-04) - HITCH

Артикул

Название

Примечание

Количество

1

662144R1

STRAP

hitch clevis upper

1шт.

2

662145R1

STRAP

hitch clevis lower

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 hex-hd cap, 1 for 440 Balers, 2 for 430 Balers

1шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 PHC hex.

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

668406R91

PIN ASSY, hitch, for 430 Baler, two knuckle PTO pkg

1шт.

4

667608R92

SPARE PART

HITCH ASSY, for 440 Baler

1шт.

4

674105R1

HITCH ASSY, for 430 Baler

1шт.

5

668037R1

SUPPORT

rope, used w/3 knuckle drive shaft

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-z

1шт.

6

ROPE, hitch latch, purchase locally 3/8 in. x 12 ft. hemp rope

1шт.

7

674109R2

PLATE

hitch support, for 440 Baler

1шт.

7

674108R2

SUPPORT

PLATE, hitch support, for 430 Baler

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

1шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

5шт.

667927R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex. lock

5шт.

366866C1

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

8

667622R2

LEVER

hitch

1шт.

9

667923R1

SLIDE

PIVOT, hitch lever

1шт.

17768R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2 x 4-1/2 hex-hd mach

1шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

10

165

SPRING

hitch lever

1шт.

21644R1

PIN,1/4" x 1"

Split (Cotter), 1/4" x 1"

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

11

674110R1

PIVOT

ASSY, hitch

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 znd hex-hd cap

2шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

LOCK, Ext Tooth, 7/16"

2шт.

662560R1

BOLT,Hex, 1" - 14 x 6 1/2"

1-14 x 6-1/2 C-Z hitch anchor

1шт.

70121D

NUT

1-14 hex. slt jam

1шт.

21162R1

WASHER

1-1/32 x 2 x 7 ga C-Z

1шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

1шт.

21213R1

WASHER

1-1/32 x 2 x 11 ga C-Z

1шт.

12

667628R1

ANGLE

STRAP, anchor hitch pivot

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

2шт.

425-110

5/8-18 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z int-tooth lock

2шт.

13

204109C1

BRACKET

ASSY, hitch support, for 440 Baler

1шт.

13

667620R2

BRACKET

hitch support, for 430 Baler

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2 x 1-1/2 hex-hd mach

4шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

668758R1

SPACER

hitch plate

1шт.

15

673164R1

EXTENSION

SECTION ASSY, hitch extension, used w/3 knuckle drive shaft for 430 Baler

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap

2шт.

9413960

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 PHC hex.

2шт.

366866C1

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

21759R1

WASHER

21/32 x 2

2шт.

16

671095R91

CHANNEL

ASSY, hitch extension, used w/3 knuckle drive shaft for 430 Baler

1шт.

17

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot., 440 Balers, 430 Balers three knuckle PTO pkg, use for two knuckle PTO pkg

2шт.

22106R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3-3/4 std, 440 and 430 Balers three knuckle PTO pkg

1шт.

Выбрано товаров: 59
