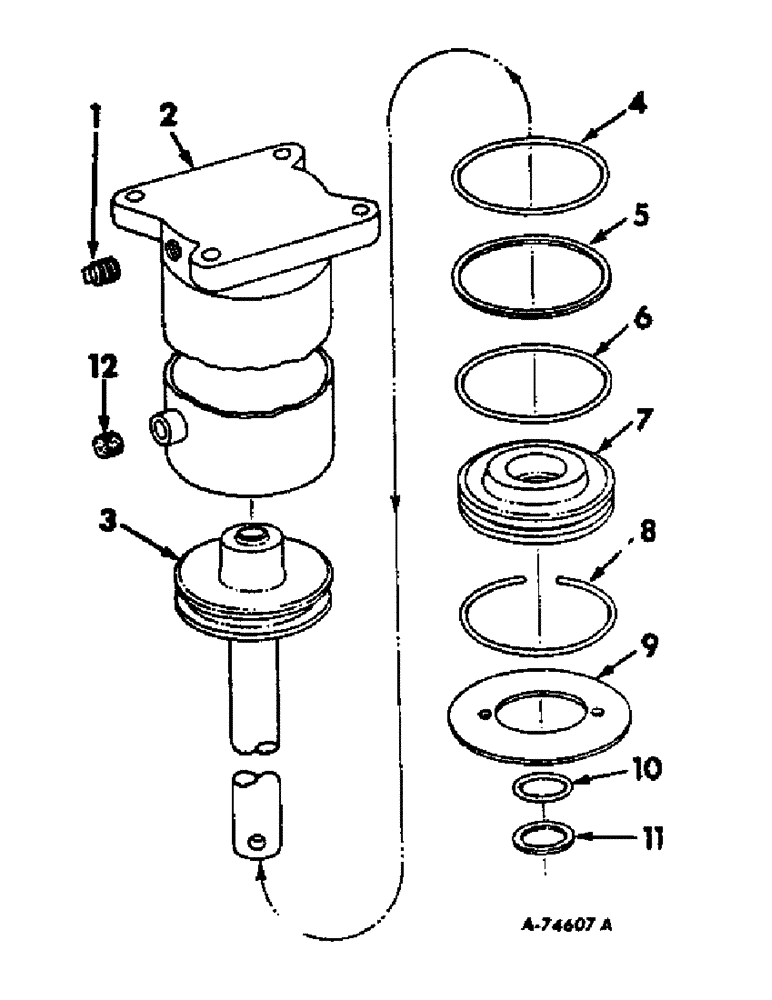

Запчасти Case IH 430 (E-61) - HYDRAULIC BALE TENSION DEVICE HYDRAULIC JACK, WHEN ORDERED

963236R91

JACK ASSY, hydraulic bale tension

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16-18 x 1-1/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17139R1

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

1шт.

1

444860

KEY

1/4-18 automotive hex-soc-hd drain

1шт.

2

(Not serviced separately), order 963236R91

1шт.

3

963237R91

ROD ASSY, piston

1шт.

4

963238R1

GASKET

O-RING, 2-7/8 x 3-1/4 x 3/16

1шт.

5

963239R1

WASHER, backup

1шт.

6

259252R1

O-RING

3 x 3-1/4 x 1/8

1шт.

7

659555R1

BEARING

1шт.

8

659559R1

RING, lock

1шт.

9

659554R1

PLATE

end

1шт.

10

659558R1

O-RING,1.046" ID x 0.139" Width

1 x 1-1/4 x 1/8

1шт.

11

659556R1

WASHER

backup

1шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 C-Z slt-rd-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

12

659553R1

PLUG

filter

1шт.
