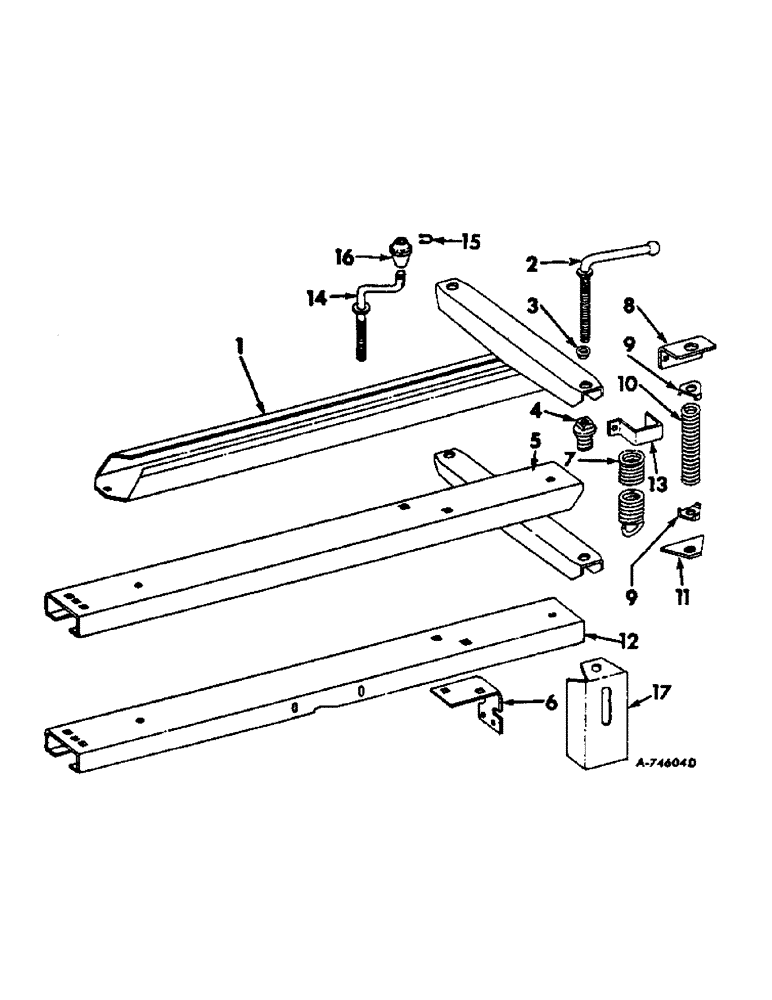

Запчасти Case IH 430 (E-55) - MANUAL BALE TENSION DEVICE, WHEN ORDERED

1

674373R1

CHANNEL

ASSY, upper tension

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 znd sq-nk crg, for twine Balers

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 znd sq-nk crg, for wire Balers

1шт.

2

662385R11

SCREW ASSY, tension adj, 1968 and 1969

2шт.

upper and lower compression

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

2

667994R11

SCREW ASSY, bale chamber tension adj.

2шт.

upper compression only for 430 Baler

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

3

656934R1

BUSHING

PILOT, tension adj screw

2шт.

4

657223R1

PLUG

bale chamber tension spring, 430T Balers 015403 and below, 430W Balers 002053 and below, 440T Balers 005434 and below, 440W Balers 003032 and below

2шт.

upper and lower compression

1шт.

4

662028R1

PLUG

spring, 430T Balers 0015404 and up, 430W Balers 002054 and up, 440T Balers 005435 and up, 440W Balers 003033 and up

2шт.

5

674370R1

CHANNEL ASSY, lower tension

1шт.

upper and lower compression

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

674374R1

BRACE, lower tension channel

1шт.

upper compression only for 430 Baler

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

7

663382R1

SPRING

bale chamber tension, 430T Balers 015403 and below, 430W Balers 002053 and below, 440T Balers 005434 and below, 440W Balers 003032 and below

2шт.

upper and lower compression

1шт.

7

203186C1

SPRING

tension channel, 430T Balers 015404 and up, 430W Balers 002054 and up, 440T Balers 005435 and up, 440W Balers 003033 and up

2шт.

8

667993R1

SUPPORT, upper tension channel spring

2шт.

upper compression only for 430 Baler

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

667837R1

COLLAR, manual tension

4шт.

upper compression only for 430 Baler

1шт.

10

667838R1

SPRING

manual tension

2шт.

upper compression only for 430 Baler

1шт.

11

667995R11

PLATE ASSY, bale chamber tension adj.

2шт.

upper compression only for 430 Baler

1шт.

12

668120R2

CHANNEL, lower tension

1шт.

upper compression only for 430 Baler

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znp sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

13

668764R1

STRAP, tension spring

2шт.

upper compression only for 430 Baler

1шт.

14

200673C1

CRANK

SCREW, assy, tension adjusting, 1970 and up

2шт.

upper and lower compression

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

15

321935C1

SNAP RING,#62, Ext

Ring, Snap, , bale tension knob, 1970 and up #62, Ext

2шт.

upper and lower compression

1шт.

16

201397C1

KNOB

ASSY, bale tension, 1970 and up

2шт.

upper and lower compression

1шт.

17

204133C1

INDICATOR W/PRODUCT GRAPHIC, bale tension, use w/663382R1 spring

1шт.
