Запчасти Case IH 430 (E-54) - BALE COUNTER

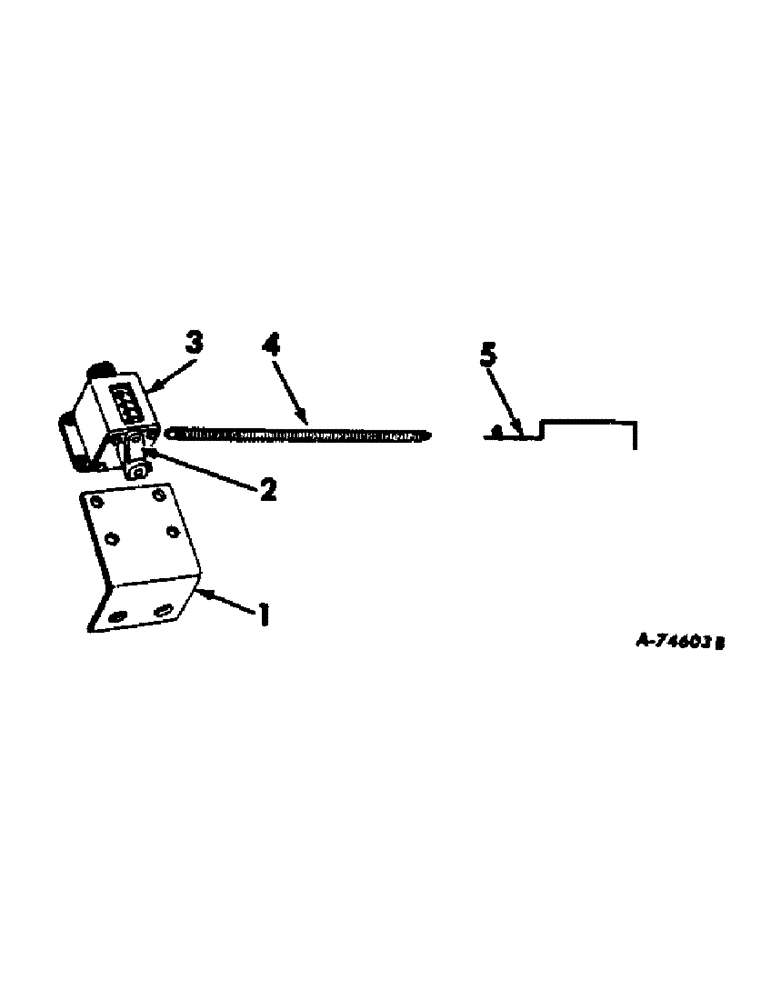

Схема запчастей Case IH 430 - (E-54) - BALE COUNTER

Артикул

Название

Примечание

Количество

1

662364R1

BRACKET

MOUNT, bale counter, for twine Balers

1шт.

120583

SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"

1/4-20 x 5/8 C-Z rd-hd slt mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

656707R91

ARM

W/SET SCREW, bale counter, for 440 Balers only

1шт.

3

495046R92

COUNTER

W/ATTACHING HARDWARE, bale

1шт.

4

495525R1

SPRING

bale counter

1шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

1шт.

5

667828R1

EXTENSION

bale counter spring, 430W Balers 001193 and below, 440W Balers 002159 and below

1шт.

547495R92

DECAL KIT

PACKAGE, International name product graphics

1шт.

547497R92

DECAL

PACKAGE, model designation product graphics, 430T serial No. 001098 thru 005755, 440T serial No. 000510 thru 002159

1шт.

202596C2

KIT

product graphics service, 430T serial No. 005756 and up, 440T serial No. 002160 and up, consists of product graphic, bolts must be kep tight on wheels (NSS)

2шт.

61907C1

DECAL

PRODUCT GRAPHIC, caution, general warning

1шт.

202707C2

PRODUCT GRAPHIC

caution instructions

1шт.

64553C1

DECAL

PRODUCT GRAPHIC, caution power drive

1шт.

202641C2

PRODUCT GRAPHIC

caution stay clear, product graphic (NSS), custom

1шт.

210600C1

DECAL

3шт.

PRODUCT GRAPHIC, grease symbol, product graphic, hitch instructions (NSS), product graphic IH (NSS), product graphic, hitch instructions (NSS), product graphic, lok twine (NSS), product graphic, lub guide (NSS), product graphic, oil level (NSS), product graphic, sheart bolt instructions (NSS)

1шт.

204814C1

PRODUCT GRAPHIC, towing instructions, product graphic, twine instructions (NSS), product graphic, wire instructions (NSS), product graphic, 540 RPM

1шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, consists of, (2) IH trademark 1.46 x 1.57 (NSS), (2) IH trademark 2.19 x 2.36 (NSS), (2) IH trademark 2.93 x 3.15 (NSS)

1шт.

77582C91

PACKAGE

IH trademark, medium size, consists of (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS)

1шт.

77583C91

PACKAGE

IH trademark, large size, consists of (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 8.27 (NSS), (2) IH trademark 10.24 x 11.02 (NSS)

1шт.

Выбрано товаров: 22
