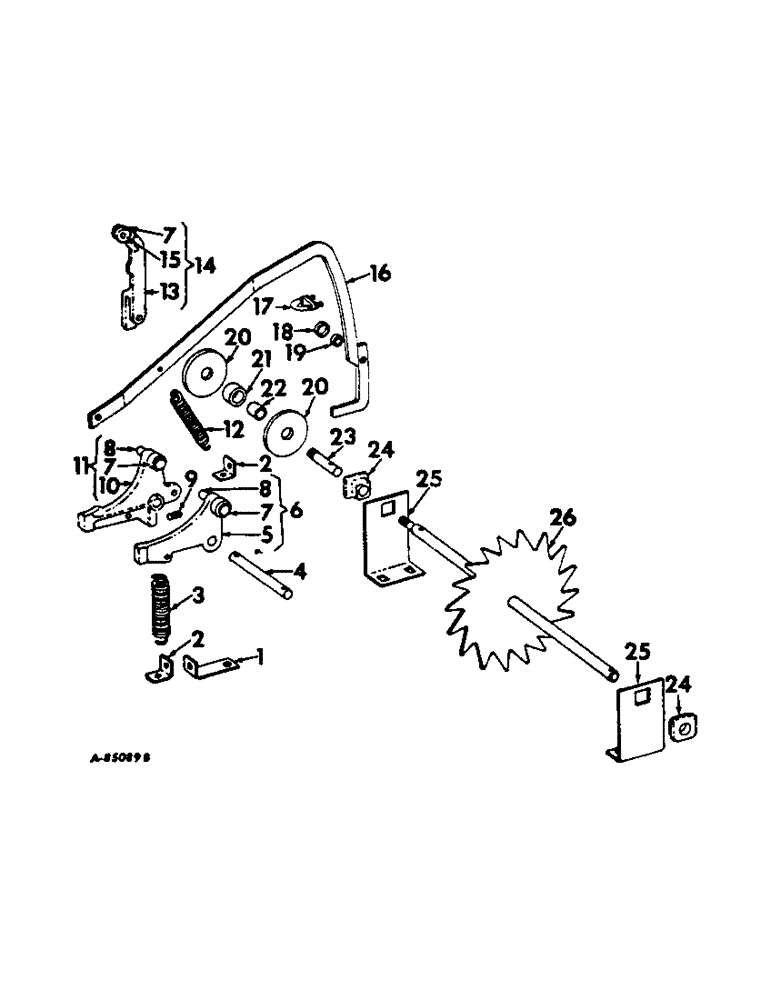

Запчасти Case IH 430 (E-53) - BALE LENGTH CONTROL
№
Артикул
Название
Примечание
Количество
1
668329R1
ANCHOR, spring trip, for wire Balers
1шт.
2
668082R1
ANCHOR
spring trip, 2 for twine Balers, 1 for wire Balers
1шт.
18685R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2
BOLT, 3/8 x 1-1/2 C-Z sq-nk crg, for wire Balers
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 C-Z hex-hd mach
1шт.
19021R1
CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2
BOLT, 3/8 x 1-1/2 C-Z No. 3 plow, for wire Balers
1шт.
18684R1
BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 znd sq-nk crg
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
3
70733H
SPRING
trip, for wire Balers
1шт.
3
101330H
SPRING
trip, for twine Balers
1шт.
4
674190R1
STUD
trip arm, for twine Balers
1шт.
4
664778R1
PIN
STUD, trip arm, for wire Balers
1шт.
178375R1
WASHER
25/32 x 1-1/4 x 16 ga C-Z, (or as required)
3шт.
5
(Not serviced separately), order 663163R21
1шт.
6
663163R21
ARM
ASSY, trip, for wire Balers
1шт.
21996R1
LOCK PIN,1/4" x 1 3/8", Slotted
Pin, 1/4" x 1 3/8", Slotted
1шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
477242R1
WASHER
13/32 x 1 x 22 ga C-Z
1шт.
7
662019R1
ROLLER,28.57mm OD x 12.7mm L
trip arm, 2 for twine Balers, 1 for wire Balers
1шт.
8
662020R1
STUD
trip arm roller
1шт.
21996R1
LOCK PIN,1/4" x 1 3/8", Slotted
Pin, 1/4" x 1 3/8", Slotted
1шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
477242R1
WASHER
13/32 x 1 x 22 ga C-Z
1шт.
9
131DS
SPRING
lockout latch, for twine Baler
1шт.
22751R1
HEADED PIN,5/16" x 1 5/8"
PIN, 5/16" x 1 5/8"
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
200461C1
WASHER, 11/32 x 3/4 x .010 thick, (or as required)
2шт.
23301R1
LOCK PIN,5/16" x 1 1/4", Slotted
Pin, 5/16" x 1 1/4", Slotted
1шт.
10
(Not serviced separately), order 674417R11
1шт.
11
674417R11
ARM
ASSY, trip, for twine Balers
1шт.
12
204009C1
SPRING
trip rod, replaces 6646, when 6646 or 6646-1 is ordered furnish 204009C1
1шт.
13
(Not serviced separately), order 674416R21
1шт.
14
674416R21
LATCH ASSY, lockout, for twine Balers, 430T serial No. 012280 and below, 440T serial No. 004613 and below
1шт.
14
204141C91
LATCH
ASSY, lockout, for twine Balers, 430T serial No. 012281 and up, 440T serial No. 004614 and up
1шт.
15
674193R1
LARGE PIN
STUD, trip lockout roller, for twine Balers
1шт.
16
674187R1
ROD
ASSY, trip, for twine Balers
1шт.
16
674188R1
ROD
ASSY, trip, for wire Balers
1шт.
17
667502R91
SUPPORT
CLAMP ASSY, trip rod
1шт.
18
674021R1
ROLLER,22.23mm OD x 9.65mm L
trip rod
1шт.
18656R1
BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2
1/4 x 1-1/4 C-Z hex-hd mach
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
21549R1
WASHER
9/32 x 3/4 x 18 ga C-Z
1шт.
19
674020R1
BUSHING,6.55mm ID x 9.53mm OD x 10.67mm L
trip rod
1шт.
20
667782R1
SHEAVE
trip rod
2шт.
21
3100851R1
ROLLER,35.05mm OD x 13.49mm L
trip rod
1шт.
22
3100852R1
SPACER,16.94mm ID x 22.23mm OD x 12.7mm L
trip rod roller
1шт.
23
674017R1
LARGE PIN
STUD, trip rod roller, 430T Balers 015855 and below, 430W Balers 002053 and below, 440T Balers 005493 and below, 440W Balers 003032 and below
1шт.
23277R1
LOCK PIN,5/32" x 1 1/4", Slotted
PIN, 5/32" x 1 1/4", Slotted
1шт.
24
668999R1
BUSHING
meter wheel
2шт.
25
674013R1
BRACKET
meter wheel shaft brg
2шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
619856R1
WASHER
13/32 x 1 x 16 ga C-Z
4шт.
26
204616C1
DRIVE SPROCKET
WHEEL ASSY, meter, replaces 674014R1, 430T Balers 015856 and up, 430W Balers 002054 and up, 440T Balers 005494 and up, 440W Balers 003033 and up
1шт.
667927R1
LOCK NUT,5/8"-11, GB
NUT, 5/8-11 hex lock
1шт.
20703R1
WASHER
29/32 x 1-3/4 x 16 ga C-Z, (or as required)
2шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
21648R1
LOCK PIN,1/4" x 1 1/4", Slotted
Pin, 1/4" x 1 1/4", Slotted
2шт.
Выбрано товаров: 61
