Запчасти Case IH 430 (E-50) - LOCK-TWIST TWISTER, SERIAL NUMBER, 430W 001194 & UP, 440W 002160 & UP

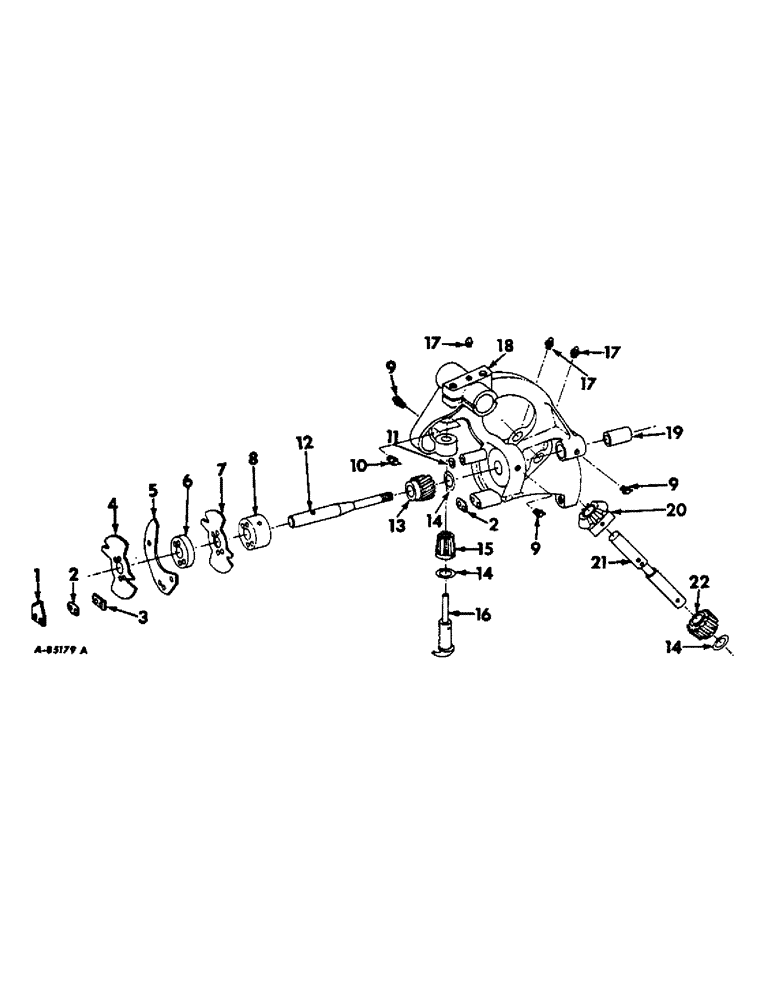

Схема запчастей Case IH 430 - (E-50) - LOCK-TWIST TWISTER, SERIAL NUMBER, 430W 001194 & UP, 440W 002160 & UP

Артикул

Название

Примечание

Количество

201676C91

TWISTER

ASSY

2шт.

1

657188R3

KNIFE

wire

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 znd hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

657164R1

SHIM

wire knife and keeper blade .010

8шт.

2

203188C1

SHIM

wire .003, (or as required)

2шт.

2

203189C1

SHIM

wire .007, (or as required)

1шт.

3

657128R1

SPACER

wire knife

1шт.

4

657126R2

HOLDER

DISC, wire holder lower

1шт.

133846

SCREW,Sl Flat Hd, 5/16" - 18 x 1 1/2"

4шт.

5

657127R3

BLADE

wire holder keeper

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

6

657124R2

SPACER

wire holder disc

1шт.

7

201679C1

DISC

wire holder upper

1шт.

8

656893R1

HUB

wire holder disk

1шт.

21832R1

LOCK PIN,1/4" x 2", Slotted

Pin, 1/4" x 2", Slotted

1шт.

9

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

3шт.

10

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28, 45 deg angle self-tap. lubrication

1шт.

11

657163R1

SHIM

keeper blade .010

3шт.

12

656948R1

SHAFT

wire holder

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

120371

NUT,1/2"-20, G5

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-20 znd hex. jam

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z, (or as required)

1шт.

21757R1

WASHER

25/32 x 1-1/4 x 22 ga C-Z, (or as required)

1шт.

13

656947R1

BLOCK DRIVER

PINION, wire clamp and cutter helical driver

1шт.

14

658967R1

SHIM

disk pinion adjusting, (or as required)

7шт.

15

201680C1

GEAR

PINION, twister hook

1шт.

21830R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

16

201681C91

HOOK

ASSY, wire twister

1шт.

19336R1

LOCK PIN,1/8" x 11/16", Slotted

Pin, 1/8" x 11/16", Slotted

1шт.

21757R1

WASHER

25/32 x 1-1/4 x 22 ga C-Z, (or as required)

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 znd hex-hd mach.

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

17

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap. lub

1шт.

18

201676C91

TWISTER

FRAME W/CUP BOLTS, twister (replaces 202105C91)

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 znd hex-hd cap

2шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

19

657001R1

BUSHING

wire holder shaft

1шт.

20

656912R2

DISC

PINION, disk

1шт.

22981R1

ROLL PIN,1/4" x 2 1/4", Slotted

Pin, 1/4" x 2 1/4", Slotted

1шт.

22920R1

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

21

201678C1

SHAFT

disk pinion

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z, (or as required)

2шт.

21757R1

WASHER

25/32 x 1-1/4 x 22 ga C-Z, (or as required)

1шт.

21758R1

WASHER

25/32 x 1-1/4 x 14 ga C-Z, (or as required)

1шт.

22

656946R1

PINION

wire clamp and cutter helical drive

1шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

23277R1

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

Выбрано товаров: 52
