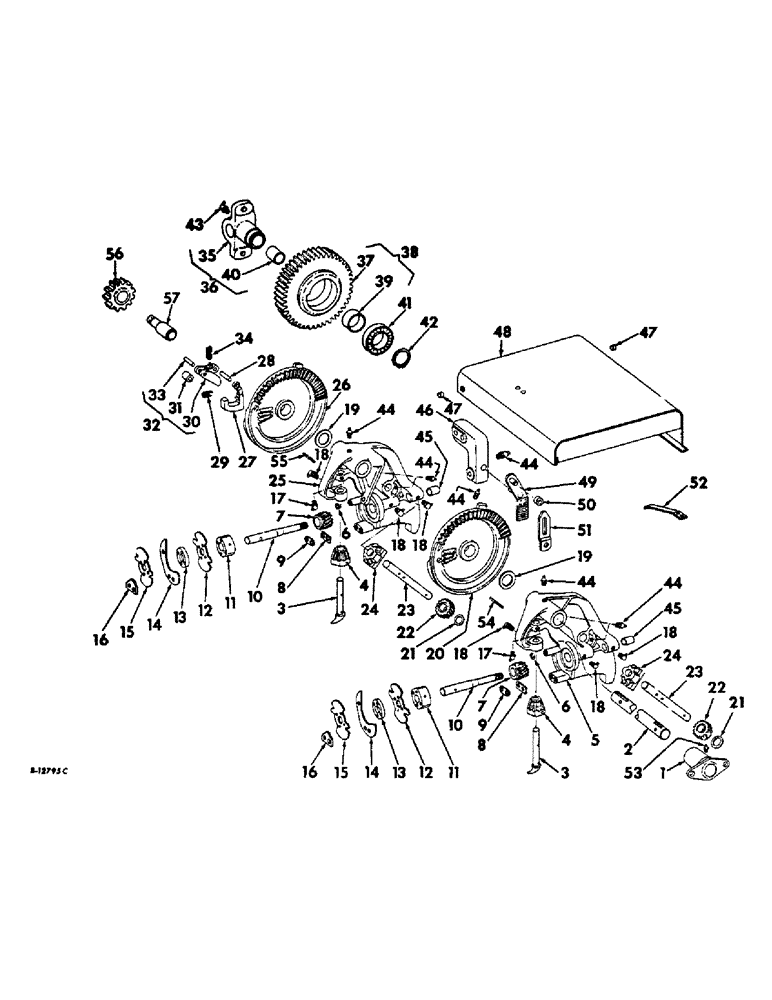

Запчасти Case IH 430 (E-48) - TWISTER & TWISTER COVER, WIRE BALERS, S/N 430W 50 IN. THRU 001193, 440W 50 IN. THRU 002159

1

667841R1

BEARING, twister shaft left, 430 Baler 50 in thru 001193, 440 Baler 50 in thru 001303

1шт.

1

674347R1

FLANGE

BEARING, twister shaft left, 430 Baler 001194 and up, 440 Baler 001304 and up

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

366862C1

LOCK WASHER,3/8"

3/8"

2шт.

2

664773R1

SHAFT

wire twister

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga C-Z

1шт.

68676H

WASHER

1-13/32 x 1-3/4 x 22 ga, (or as required)

14шт.

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

3

657783R91

TWISTER

HOOK ASSY, wire twister

2шт.

23280R1

PIN, 1/8 x 11/16 C-Z slt spring

2шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 znd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

4

656913R2

PINION

twister

2шт.

21832R1

LOCK PIN,1/4" x 2", Slotted

Pin, 1/4" x 2", Slotted

2шт.

5

656895R22

TWISTER

ASSY, LH

1шт.

5

656895R2

TWISTER

FRAME, wire twister LH

1шт.

6

657163R1

SHIM

keeper blade .010

6шт.

7

656947R1

BLOCK DRIVER

PINION, wire clamp & cutter helical

2шт.

8

657128R1

SPACER

wire knife

2шт.

9

657164R1

SHIM

wire knife & keeper blade

16шт.

10

656948R1

SHAFT

wire holder

2шт.

Q5035

WASHER

17/32 x 1 x 16 ga.

2шт.

551658R1

WASHER

25/32 x 1-1/4 x 22 ga., (or as req.)

8шт.

25-118

NUT,1/2"-20, G5

1/2 NF

2шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, jam 1/2 NF

2шт.

11

656893R1

HUB

wire holder disc

2шт.

12

657123R2

HOLDER

DISC, wire holder

2шт.

13

657124R2

SPACER

wire holder disc

2шт.

14

657127R2

NO LONGER SERVICED

BLADE, wire holder keeper

2шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

mach. 5/16 x 3/4

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

657126R2

HOLDER

DISC, wire holder lower

2шт.

113918

FENDER

fl. hd. sl. 5/16 x 1-1/2

8шт.

16

657188R3

KNIFE

wire

2шт.

17445R1

BOLT,Hex, 5/16" - 18 x 1 1/4"

mach. 5/16 x 1-1/4

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 45 deg lub

1шт.

18

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 deg lub

6шт.

19

667438R1

SHIM

wire twister shaft, .020

2шт.

19

667439R1

SHIM

wire twister shaft, .005, (or as required)

14шт.

20

656890R2

CAM

GEAR & STRIPPER CAM HOLDER, twister

1шт.

181705

SCREW, 1/2-20 x 2 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21

658967R1

SHIM

disk pinion adj.

2шт.

22

656946R1

PINION

wire clamp & cutter helical

2шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

23277R1

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

2шт.

23

656949R1

GEAR

SHAFT, disk pinion

2шт.

Q3478

WASHER

25/32 x 1-1/4 x 14 ga.

8шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga.

8шт.

24

656912R2

DISC

PINION, disk

2шт.

22981R1

ROLL PIN,1/4" x 2 1/4", Slotted

Pin, 1/4" x 2 1/4", Slotted

2шт.

22920R1

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

4шт.

25

656894R12

TWISTER

ASM R.H.

1шт.

25

656894R1

TWISTER

FRAME, wire twister R.H.

1шт.

26

664760R1

CAM

GEAR, trip dog carrier & wire twister

1шт.

86837295

GUIDE

SCREW, 1/2 x 2 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

27

663378R1

PAWL

DOG, auxiliary trip

1шт.

28

664947R1

PIVOT

trip dog

1шт.

21755R1

WASHER

15/32 x 13/16 x 18 ga C-Z, (or as required)

1шт.

21756R1

WASHER

15/32 x 3/4 x 22 ga, (or as required)

1шт.

29

R1003

SPRING

auxiliary trip dog

1шт.

30

(Not serviced separately), order 663478R11

1шт.

31

V341

PAWL

ROLLER, trip dog

1шт.

32

663478R11

PAWL

DOG & ROLLER, trip

1шт.

33

V690

PIN

STUD, trip dog roller

1шт.

34

V680

SPRING

trip dog

1шт.

35

(Not serviced separately), order 669630R91

1шт.

36

669630R91

SUPPORT

W/BUSHING, twister and gear insert

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

37

(Not serviced separately), order 674353R11

1шт.

38

674353R11

GEAR

W/BUSHING, twister drive

1шт.

39

667826R1

BUSHING

knotter drive gear

1шт.

40

667844R1

BUSHING

twister shaft

1шт.

41

361017R91

BALL BEARING,1.9685" ID x 3.5433 mm OD x 0.7894 mm

twister drive gear, replaces 271255R91

1шт.

42

287049R1

SNAP RING,#196, Ext

Ring, Snap, , twister drive gear bearing #196, Ext

1шт.

43

16964R91

FITTING

1/4 90 deg lub

1шт.

44

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

8шт.

45

657001R1

BUSHING

wire holder shaft

2шт.

46

658735R2

PIVOT & SUPPORT STRIPPER ACTUATING ARM

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

mach. 3/8 x 1-1/4

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

47

11309N

SPACER

twister cover, regular for 440 Baler, special for 430 Baler

2шт.

19570R1

BOLT,Hex, 1/4" - 20 x 5/8", Gr 2

1/4-20 x 5/8 cd-pltd hex-hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 ga C-Z

2шт.

48

667784R92

COVER

twister, regular for 440 Baler, special for 430 Baler

1шт.

49

658737R91

ARM

stripper actuating cpt.

1шт.

22765R1

WASHER

21/32 x 1-1/2 x 22 ga C-Z

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

50

656952R1

ROLLER

stripper arm

1шт.

51

658740R1

SUPPORT

ADJUSTMENT STRIPPER ACTUATING ARM

1шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8 x 1-1/4 znd No. 3 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

52

667787R1

SPRING

twister cover, regular for 440 Baler, special for 430 Baler

1шт.

110638

RIVET

button hd. 3/16 x 5/16

2шт.

53

87414

LUBE NIPPLE,1/4" - 28

FITTING, lub. 1/4-28 str self tapping

1шт.

54

657206R1

KEY,3/8" Sq x 2 3/8", Par

sq. 3/8 x 2-3/8

1шт.

55

Q72

KEY,5/16" Sq x 1 7/8", Par

sq. 3/8 x 1-7/8

1шт.

56

674104R1

GEAR

PINION, auger drive idler

1шт.

57

674464R91

BEARING ASSY,0.6267" ID x 1.1811" OD x 1.531"

ASSY, auger drive

1шт.

23685R1

SET SCREW,Hex Soc, 3/8"-16 x 1 3/4"

Cup Pt Hex Soc, 3/8"-16 x 1 3/4"

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.
