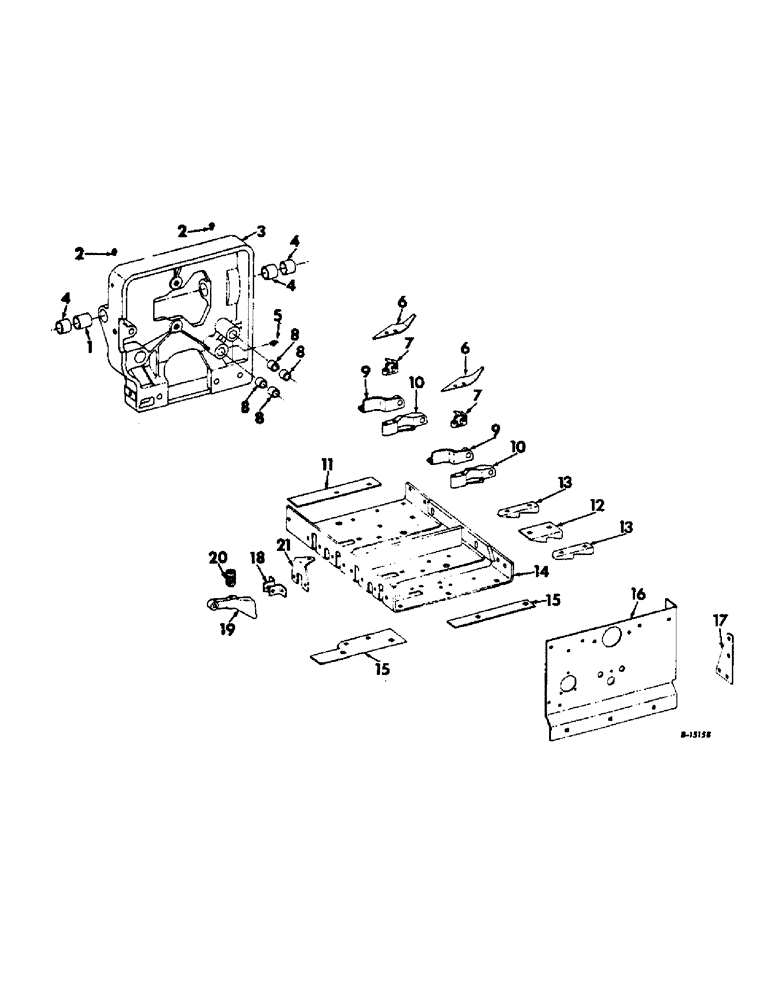

Запчасти Case IH 430 (E-46) - TWISTER BASE PLATE AND SUPPORTS, SERIAL NUMBER, 430W 001194 & UP, 440W 002160 & UP

1

663364R1

BUSHING

packer crank

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

3

667810R21

FRAME

W/BUSHINGS, twister drive

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 znd hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 znd hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20803R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

4

674263R1

BUSHING

packer crank

3шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28, 45 deg angle lub

1шт.

6

674334R2

GUIDE

wire tail upper

2шт.

18677R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2

BOLT, 5/16 x 2-1/2 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 znd int-tooth lock

4шт.

7

674333R1

FINGER

base plate

2шт.

8

667811R1

BUSHING

trip arm stud

4шт.

9

201674C1

BRACKET

twist

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

201675C1

FINGER

tail guide and mount

2шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

90560H

CLEVIS PIN,1/2" x 2.766"

PIN, 1/2 x 2-49/64 rod end

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

4шт.

648002

KNIFE

1/8" x 3/4"

2шт.

11

202619C2

FILLER

base plate RH

1шт.

12

495930R1

WEDGE

hay retainer wide

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

13

495929R2

WEDGE

hay retainer narrow

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

14

674326R1

PLATE

ASSY, wire base

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd No. 3 plow

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg, (5) 440 Baler, (3) 430 Baler

1шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

3шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8 x 1-1/4 znd No. 3 plow, 430 Baler

2шт.

19009R1

CARRIAGE BOLT,#3, 5/16" - 18 x 1 1/2", Gr 2

BOLT, 5/16 x 1-1/2 znd No. 3 plow

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

200414C1

FILLER, base plate LH, serial numbers, 430W 001195 thru 001403, 440W 001304 thru 001578

1шт.

15

202618C1

FILLER

base plate LH, serial numbers, 430W 001404 and above, 440W 001579 and above

1шт.

16

674346R2

SUPPORT

twister shaft brg

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

17

667839R2

SUPPORT

PLATE, twister shaft brg support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

22264R1

WASHER

13/32 x 1 x 7 ga C-Z

2шт.

18

674336R1

PIVOT

hay retainer

8шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach znd

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

19

674337R1

RETAINER

hay

4шт.

21964R1

HEADED PIN,3/8" x 1 1/2"

PIN, 3/8 x 1-1/2 C-Z std-hd

4шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

4шт.

20

665192R1

SPRING

hay retainer

4шт.

21

674335R1

BRACKET

hay retainer

4шт.

19328R1

LOCK PIN,3/8" x 3/4", Slotted

4шт.
