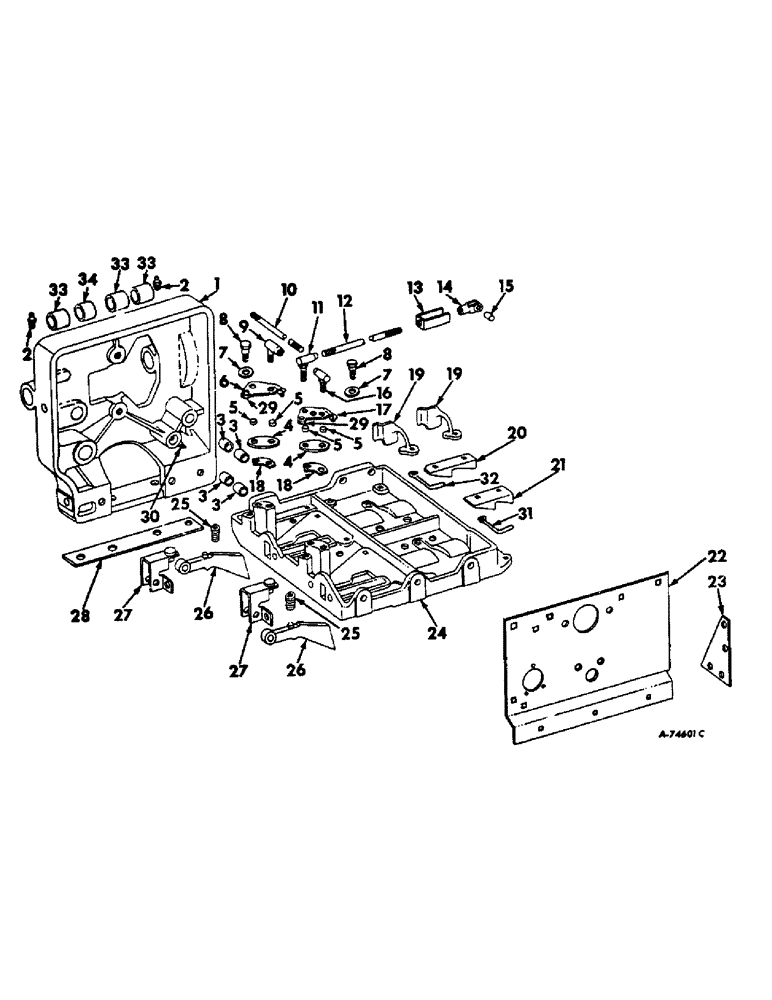

Запчасти Case IH 430 (E-44) - TWISTER BASE PLATE & SUPPORTS, WIRE BALERS, S/N, 430T 50 IN. THRU 001193, 440T 50 IN. THRU 002159

1

667810R21

FRAME

W/BUSHINGS, knotter drive

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 znd hex-hd mach

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2-1/2 znd hex-hd mach

1шт.

425-110

5/8-18 znd hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 znd hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

3

667811R1

BUSHING

trip arm stud

4шт.

4

667234R1

PLATE

stripper finger guide

2шт.

181637

SCREW, 3/8-24 x 1 znd hex-hd cap

2шт.

120369

NUT,3/8"-24, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

667235R1

SPACER

guide plate

4шт.

6

667269R91

FINGER

stripper cpt. R.

1шт.

7

660466R1

WASHER

stripper pivot stud

2шт.

8

656956R1

STUD

stripper pivot front

2шт.

22265R1

WASHER

17/32 x 1-1/4 x 22 ga C-Z

2шт.

9

667237R91

JOINT

BALL JOINT, stripper connecting rod 3/8

1шт.

120369

NUT,3/8"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

656932R1

ROD

wire stripper connecting

1шт.

120369

NUT,3/8"-24, G5

1шт.

11

659567R91

JOINT TURNING

BALL JOINT, stripper connecting rod 7/16

1шт.

667596R1

NUT

7/16-20 hex. lock

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

12

656930R2

ROD

stripper actuating

1шт.

NLS

NO LONGER SERVICED

7/16-20 znd hex.

2шт.

13

658742R1

CLEVIS COUPLING

CLIP, stripper clevis pin

1шт.

14

453505

CLEVIS, stripper actuating rod, replaces 116537

1шт.

15

658741R1

PIN

stripper clevis

1шт.

16

667236R91

CONNECTOR, ELEC

BALL JOINT, stripper conn. rod

1шт.

120369

NUT,3/8"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

667230R91

FINGER

stripper cpt. L.

1шт.

18

667233R1

ANCHOR

stripper finger

2шт.

156513

SCREW,Cross Flat Hd, 3/8" - 16 x 1/2"

fl-hd cross recess cd-pl 3/8

4шт.

472635R1

WASHER

19/32 x 1 x 16 ga C-Z

4шт.

19

674724R1

INSERT

twister frame

2шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8 x 1-1/4 znd No. 3 plow

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20

495929R2

WEDGE

hay retainer narrow

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

3шт.

18864R1

BOLT, 3/8 x 1-1/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21

495930R1

WEDGE

hay retainer wide

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 znd sq-nk crg

2шт.

271501

SOCKET

NUT, 7/16-14 znd hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

22

674346R2

SUPPORT

twister shaft bearing

1шт.

17496R1

BOLT,Hex, 3/8" - 16 x 1 3/4"

3/8-16 x 1-3/4 hex-hd mach

3шт.

Q1504

WASHER

13/32 x 7/8 x 16 ga

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

102635

NUT,3/8"-16, G5

3шт.

23

667839R2

SUPPORT

PLATE, twister shaft bearing support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

24

664754R4

PLATE

wire twister base

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg, used on 440 Baler

1шт.

120377

NUT,3/8" - 16, Gr 5

Used on 440 Baler 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Used on 440 baler 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z, used on 440 Baler

1шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8 x 1-1/4 znd No. 3 plow

3шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

19021R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd No. 3 plow

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 znd sq-nk crg

1шт.

19022R1

BOLT,#3, 3/8" - 16 x 1 3/4"

3/8 x 1-3/4 znd No. 3 plow, used on 440 Baler

1шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

25

665192R1

SPRING

hay retainer

2шт.

110638

RIVET

3/8 C-Z med lock

9шт.

25

665192R1

SPRING

hay retainer

2шт.

110638

RIVET

3/16 x 5/U6 b-hd

2шт.

26

667449R1

RETAINER

top hay

2шт.

21964R1

HEADED PIN,3/8" x 1 1/2"

PIN, 3/8 x 1-1/2 C-Z std hd

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

27

667827R11

BRACKET, top hay retainer cpt.

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

28

200538C1

SPACER, twister drive frame

1шт.

29

656945R1

BEARING

BUSHING, stripper pivot

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

6шт.

30

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28, 45 deg angle self tap lub

1шт.

31

671121R1

DEFLECTOR

wire twister LH

1шт.

32

671122R1

DEFLECTOR

wire twister RH

1шт.

33

674263R1

BUSHING

packer crank

3шт.

34

663364R1

BUSHING

packer crank

1шт.
