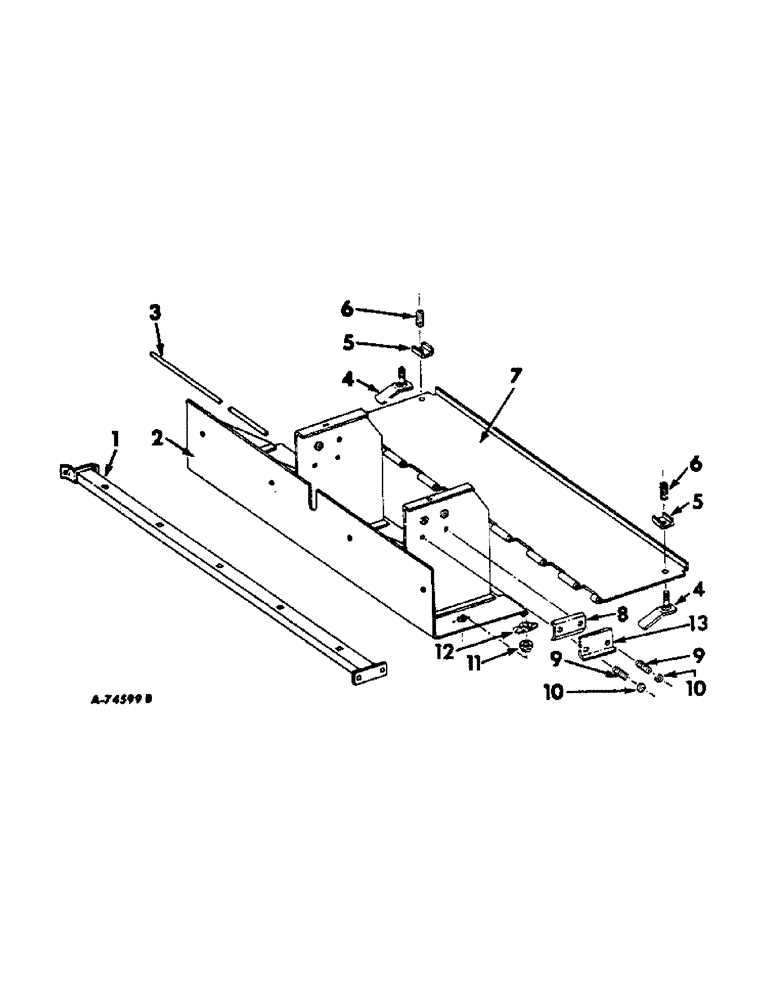

Запчасти Case IH 430 (E-34) - TWINE CHEST

1

674180R1

SUPPORT ASSY, twine can, for 440 twine Balers, 430T Balers 012281 and up

1шт.

1

674183R1

SUPPORT ASSY, twine can, for 430 twine Balers, 430T Balers 012280 and below

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

662371R91

CAM

CAN ASSY, twine

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

5шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

662409R1

ROD

twine can door pivot

1шт.

4

668035R11

LATCH

ASSY, twine can door

2шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 3/4", G2

2шт.

5

668036R1

PAWL

twine can fastener

2шт.

6

354746R1

SPRING

twine can door fastener

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cad hex lock

2шт.

7

662386R2

DOOR

twine can

1шт.

8

662380R1

GUIDE

PLATE, twine tension

1шт.

9

269920R2

SPRING

twine tension roller

2шт.

10

B32120

WASHER

twine roller spring cup

2шт.

495058R2

BOLT,Carriage, 1/4" - 20 x 3"

1/4 x 3 C-Z sq-nk crg

2шт.

126177

WING NUT

NUT, 1/4-20 znd wing

2шт.

11

670617R2

GUIDE

twine

1шт.

12

352133R1

PLATE

twine guide mounting

1шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW, 10-24 x 3/8 znd slt-pan-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

13

673760R1

PLATE

twine tension outside

1шт.
