Запчасти Case IH 430 (E-28) - NEEDLE AND NEEDLE GUARD, FOR TWINE BALERS

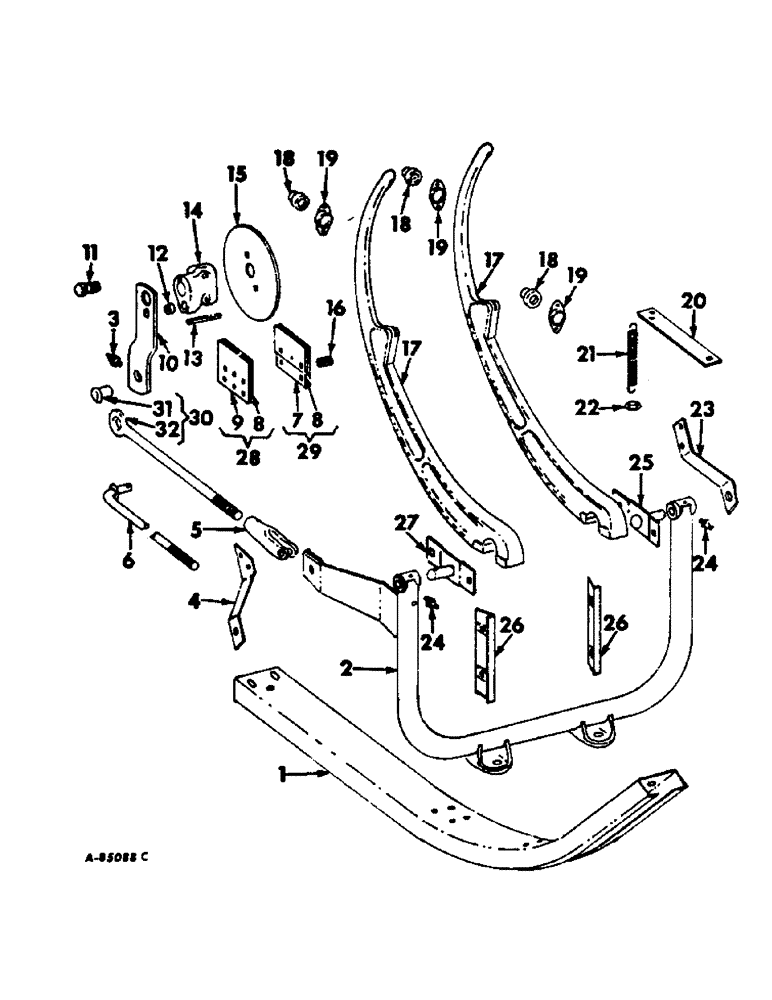

Схема запчастей Case IH 430 - (E-28) - NEEDLE AND NEEDLE GUARD, FOR TWINE BALERS

Артикул

Название

Примечание

Количество

1

674089R1

GUARD

needle

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 znd hex-hd mach

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

2

673299R2

TUBE,21.56" Length

PIPE ASSY, needle tie, 430 Baler 50 in. thru 006104, 440 Baler 50 in. thru 002310

1шт.

2

201095C2

PIPE

ASSY, needle tie, 430 Baler 006105 and up, 440 Baler 002311 and up

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

6шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

3

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive lub, 430 Baler 003809 and up, 440 Baler 001660 and up

1шт.

4

674098R1

STRAP

needle pivot support LH

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

127786

ADJUSTABLE CLEVIS,5/16"-18 x 4 15/16"

CLEVIS, 5/8-18 x 4-15/16 hv rod end

1шт.

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, , Rod end 5/8" x 1.844"

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

6

662282R1

PITMAN

needle, 430 Baler 003803 and below, 440 Baler 001659 and below

1шт.

425-110

5/8-18 znd hex.

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

7

SHOE, knotter shaft brake RH, (not serviced separately), order 754778R91

1шт.

8

LINING, knotter shaft brake, (not serviced separately), order 754777R91 or 754778R91

2шт.

9

SHOE, knotter shaft brake LH, (not serviced separately), order 754777R91

1шт.

10

674090R1

CRANK, needle drive, 430 Baler 003808 and below, 440 Baler 001659 and below

1шт.

120368

NUT,5/16"-24, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

201670C1

DRAWBAR

CRANK, needle drive, 430 Baler 003809 and up, 440 Baler 001660 and up

1шт.

181620

SCREW,Hex, 5/16" - 24 x 2", Gr 5

5/16-24 znd hex-hd cap shear bolt

1шт.

120368

NUT,5/16"-24, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

181620

SCREW,Hex, 5/16" - 24 x 2", Gr 5

BOLT, shear 516-24 x 2 C-Z hex-hd cap screw

1шт.

12

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

shear bolt

1шт.

13

Q72

KEY,5/16" Sq x 1 7/8", Par

3/8 x 1-7/8 sq parallel

1шт.

14

202710C91

HUB

needle drive crank, includes 662555R1 bushing

1шт.

443057

GROOVED PIN,3/8" x 2 1/4", Type F

Pin, Grooved, 3/8" x 2 1/4", Type F

1шт.

15

662153R1

PLATE

knotter brake pressure

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

16

U13033

SPRING

knotter brake

2шт.

18770R1

BOLT,Hex, 5/16"-18 x 2 3/4", G2

5/16 x 2-3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065 C-Z

2шт.

17

673306R4

NEEDLE BEARING CAGE

NEEDLE TWINE, 430 Baler 50 in. thru 006104, 440 Baler 50 in. thru 002310

2шт.

17

200588C5

NEEDLE

TWINE, 430 Baler 006105 and up, 440 Baler 002311 and up

2шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

455150R1

WASHER

17/32 x 1-1/4 x 1/4

4шт.

18

670617R2

GUIDE

twine

4шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 C-z slt-pan-hd mach

8шт.

120361

NUT,Hex Mach Screw, #10 - 24

8шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

19

352133R1

PLATE

twine guide mounting

4шт.

20

674097R2

BRACKET

slack spring

1шт.

21

457094R1

SPRING

slack arm

2шт.

22

670621R1

RING

slack arm

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

21644R1

PIN,1/4" x 1"

Split (Cotter), 1/4" x 1"

2шт.

23

674096R1

STRAP

needle pivot support RH

1шт.

24

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

2шт.

25

203056C1

PIVOT

ASSY, needle tie pipe RH, replaces 674094R2, if 674094R2 is required order 203056C1

1шт.

26

674099R1

WEDGE

hay

2шт.

15003R1

BOLT,Sq Nk, 7/16" x 7/8"

7/16 x 7/8 sq-nk crg

4шт.

664016R1

NUT, 7/16-14 hex. lock

4шт.

27

203055C1

LARGE PIN

PIVOT ASSY, needle tie pipe LH, replaces 674093R2, if 674093R2 is required order 203055C1

1шт.

28

754777R91

SHOE

ASSY, knotter shaft brake LH

1шт.

29

754778R91

SHOE

ASSY, knotter shaft brake RH

1шт.

413-432

SCREW, 1/4-20 x 2 znd hex-hd cap

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

30

201667C91

PITMAN

W/PIN, needle, 430 Baler 003809 and up, 440 Baler 001660 and up

1шт.

121358

YOKE

5/8-18 znd hex.

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

31

201669C1

PIN

needle Pitman, 430 Baler 003809 and up, 440 Baler 001660 and up

1шт.

32

(Not serviced separately), order 201667C91

1шт.

Выбрано товаров: 82
