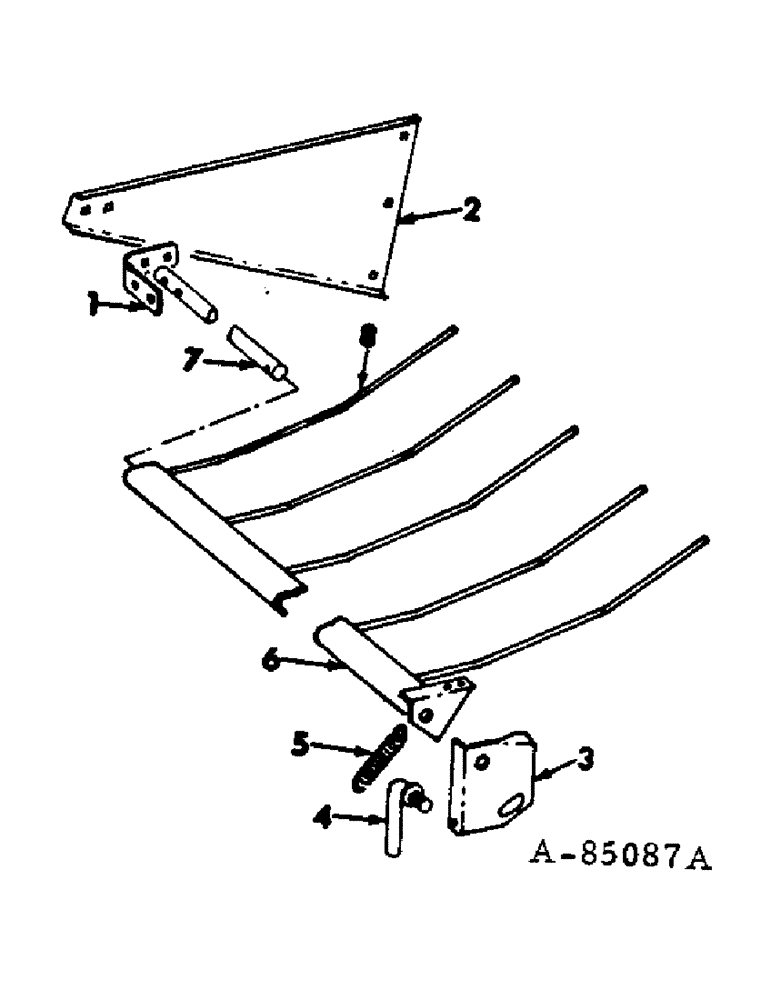

Запчасти Case IH 430 (E-18) - PICKUP COVER

1

674169R1

BRACKET

cover tine

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

674168R1

SUPPORT

cover tine RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3

674172R1

PLATE

cover tine adjusting

1шт.

4

674173R1

HANDLE

ASSY, cover tine adj

1шт.

575807R1

WASHER

13/32 x 1 x 11 ga

1шт.

5

PO91

SPRING

cover tine

1шт.

21220R1

WASHER

29/32 x 1-1/4 x 11 ga C-Z

1шт.

668752R1

WASHER

29/32 x 1-1/4 x 16 ga C-Z

1шт.

6

674166R1

FINGER

TINE ASSY, pickup cover, for 430 Baler, 430T 012280 and below, 430W 001778 and below

1шт.

6

674161R1

FINGER

TINE ASSY, pickup cover, for 440 Baler, 430T 012281 and up, 430W 001779 and up

1шт.

7

674171R1

SPARE PART

ARM, pickup cover, for 430 Balers, 430T 012280 and below, 430W 001778 and below

1шт.

7

674170R1

TUBE,0.84" OD, 60.9" Length

ARM, pickup cover, for 440 Balers, 430T 012281 and up, 430W 001779 and up

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

668752R1

WASHER

29/32 x 1-1/4 x 16 ga C-Z

1шт.

8

201590C1

FINGER

TINE, pickup cover, 7 for 440 Baler, 6 for 430 Baler

1шт.
