Запчасти Case IH 430 (E-14) - PICKUP CYLINDER AND DRIVE

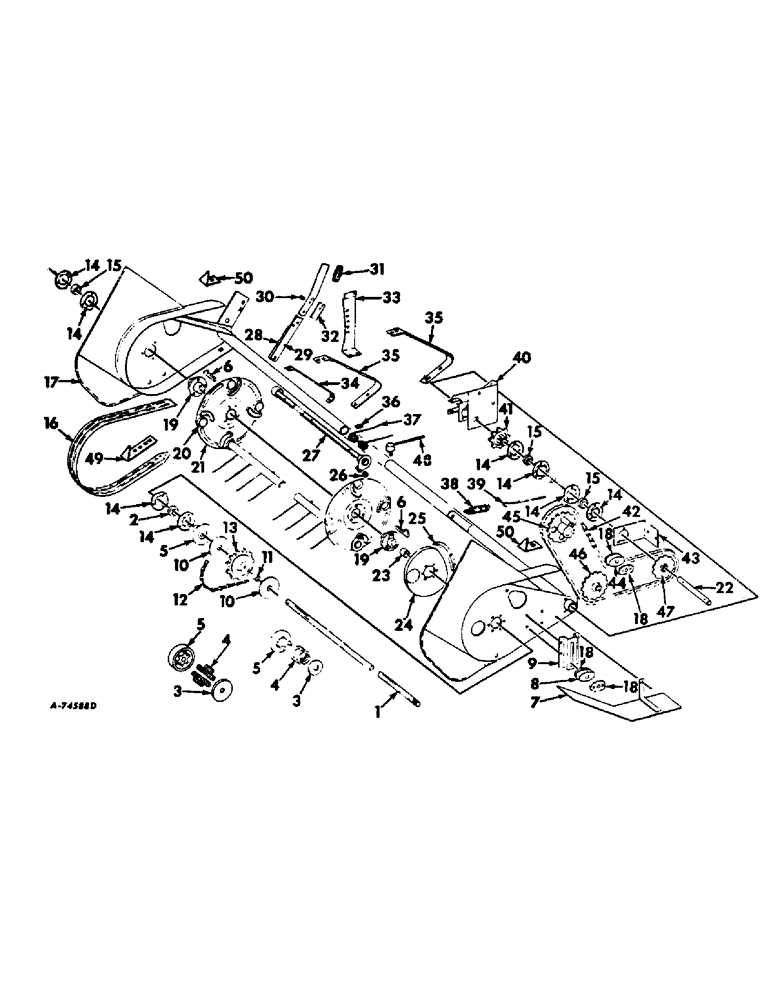

Схема запчастей Case IH 430 - (E-14) - PICKUP CYLINDER AND DRIVE

Артикул

Название

Примечание

Количество

1

663332R2

SHAFT

pickup cyl drive, for 440 Baler, 430T Balers 012281 and up, 430W Balers 001779 and up

1шт.

2

662074R2

SHAFT

pickup cyl drive, for 430 Baler, 430T Balers 012280 and below, 430W Balers 001778 and below

1шт.

219760

BACK-UP RING

1-14 znd hex. jam

1шт.

21788R1

WASHER

1-1/32 x 1-7/16 x 18 ga C-Z, (or as required)

3шт.

21789R1

WASHER

1-1/32 x 1-1/4 x 16 ga C-Z, (or as required)

2шт.

20529R1

PIN,7/32" x 1 1/2", Slotted

1шт.

2

155264C91

BALL BEARING,25.43mm ID x 52.09mm OD x 16mm W

ASSY, pickup cylinder LH

1шт.

3

662356R1

DISC

WASHER, slip clutch retainer, 430T Balers 50 in. thru 006404, 430W Balers 50 in. thru 001242, 440T Balers 50 in. thru 002548, 440W Balers 50 in. thru 001403

1шт.

3

202090C1

WASHER

slip clutch retainer, 430T Balers 006405 and up, 430W Balers 001243 and up, 440T Balers 002549 and up, 440W Balers 001404 and up

1шт.

4

U13661

VALVE SPRING

SPRING, pickup slip clutch, 430T Balers 50 in. thru 006404, 430W Balers 50 in. thru 001242, 440T Balers 50 in. thru 002548, 440W Balers 50 in. thru 001403

1шт.

4

M1015

SPRING

pickup slip clutch, 430T Balers 006405 and up, 430W Balers 001243 and up, 430T Balers 002549 and up, 440W Balers 001404 and up

6шт.

5

662026R4

HUB

pickup slip clutch, 430T Balers 50 in. thru 006404, 430W Balers 50 in. thru 001242, 440T Balers 50 in. thru 002548, 440W Balers 50 in. thru 001403

2шт.

5

202399C1

HUB

pickup slip clutch, 430T Balers 006405 and up, 430W Balers 001243 and up, 440T Balers 002549 and up, 440W Balers 001404 and up

2шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

2шт.

6

Q3931

KEY,Gib, 5/16" Sq x 1 7/8"

5/16 x 1-7/8 sq- tapered

2шт.

7

662297R91

SHIELD

ASSY, pickup drive

1шт.

19416R1

BOLT

5/16 x 3/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21142R1

BOLT, 7/16 x 3/4 znd hex-hd mach

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

8

668147R1

BLOCK

tightener

1шт.

9

667718R1

BRACKET

pickup idler

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

662291R1

LINING

FACING, pickup drive clutch

2шт.

11

662079R1

BUSHING

pickup slip clutch sprocket

1шт.

12

CA320

SPARE PART

CHAIN, pickup drive, No. 55 stl chain, 28 links

1шт.

13

662023R1

DRIVE SPROCKET

SPROCKET, pickup slip clutch

1шт.

14

671682R1

NO LONGER SERVICED

FLANGE, pickup pivot drive brg

8шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

9шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

15

671681R91

BEARING ASSY,25.43mm ID x 52.09mm OD x 16mm W

ASSY, pickup cylinder RH

3шт.

16

662316R2

STRIPPER

pickup

13шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

26шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

26шт.

120376

NUT,5/16"-18, G5

52шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

52шт.

17

674149R1

FRAME ASSY, pickup, for 430 Balers, 430T Balers 0012280 and below, 430W Balers 001778 and below

1шт.

17

674152R1

FRAME ASSY, pickup, for 440 Balers, 430T Balers 012281 and up, 430W Balers 001779 and up

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

23821R1

HEADED PIN,5/16" x 2.609"

PIN, HEADED, 5/16" x 2.609"

2шт.

18

673666R1

CAP

REINFORCEMENT, block tightener

4шт.

21776R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2

BOLT, 5/8 x 3-1/4 C-Z sq-nk crg

1шт.

18723R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 2

BOLT, 5/8 x 2-3/4 C-Z sq-nk crg

1шт.

121358

YOKE

5/8-18 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

21791R1

WASHER

31/32 x 1-1/2 x 9 ga

2шт.

19

659942R1

HUB

pickup cyl driving

2шт.

378484R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2 znp std-hd

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

20

659437R1

BUSHING

pickup cyl end, 10 for 440 Balers, 8 for 430 Balers

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

21

667705R11

END

W/BUSHING, pickup cyl, 2 for 430 Balers

1шт.

21

495489R31

DISC

END W/BUSHING, pickup cyl, 2 for 440 Balers

1шт.

22

667713R2

SHAFT

pickup pivot drive

1шт.

551855R1

WASHER

1-1/32 x 1-1/4 x 16 ga

1шт.

23

661036R1

SPACER

pickup cyl shaft inner

1шт.

24

662317R2

CAM

pickup tooth control

1шт.

25

662318R11

GUIDE

ASSY, tooth bar roller

1шт.

133822

COVER,Cross Flat Hd, 5/16"-18 x 5/8"

SCREW, Cross Flat Hd, 5/16"-18 x 5/8"

1шт.

134512

LATCH,8.28mm ID x 15.21mm OD

5/16 C-Z ext-tooth lock

1шт.

26

ST543

BALL BEARING,15mm ID x 35mm OD x 11mm W

BEARING ASSY, pickup cyl tine control, 5 for 440 Balers, 4 for 430 Balers

1шт.

423-1240

PIN, 3/16 x 2-1/2 C-Z cot., 5 for 440 Balers, 4 for 430 Balers (replaces 137273 )

1шт.

21787R1

WASHER

2-1/16 x 2-5/16 x 16 ga C-Z, 16 or as required

1шт.

27

663330R92

BAR

ASSY, pickup tooth, 5 for 440 Balers, 4 for 430 Balers, 430T Balers 012281 and up, 430W Balers 001779 and up

1шт.

27

495279R94

CARRIER

BAR ASSY, pickup tooth, 4 for 430 Balers, 430T Balers 012280 and below, 430W Balers 01778 and below

1шт.

28

674156R1

SUPPORT

STRAP, pickup lever

1шт.

22144R1

RIVET

3/8 x 1 C-Z small b-hd

2шт.

663922R1

PIN,5/8" x 1 3/8"

5/8 x 1-3/8 C-Z std-hd

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

29

674154R92

LEVER

ASSY, pickup

1шт.

30

18489D

SPRING

pickup lever clip

1шт.

22753R1

HEADED PIN,5/16" x 2 3/16"

PIN, HEADED, 5/16" x 2 3/16"

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

31

662340R1

GRIP

lever, replaces 938885R1

1шт.

32

662506R1

CLIP

pickup lever

1шт.

33

674153R1

SUPPORT

QUADRANT, pickup lever

1шт.

19897R1

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

34

674160R1

SUPPORT

BRACE, pickup stripper

13шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 znd hex-hd mach

13шт.

120377

NUT,3/8" - 16, Gr 5

13шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

13шт.

35

201746C1

SUPPORT, pickup stripper, special, used w/rubber pickup tines, 1970 and up

13шт.

35

674159R1

SUPPORT

pickup stripper

13шт.

36

27513K

CUP WASHER

WASHER, pickup cyl spring tooth, 35 for 440 Balers, 28 for 430 Balers

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, , 35 for 440 Balers, 28 for 430 Balers Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex lock, 35 for 440 Balers, 28 for 430 Balers

1шт.

37

MA74528

SPRING

pickup tooth, 35 for 440 Balers, 28 for 430 Balers

1шт.

38

MA731

SPRING

pickup balance

1шт.

39

674158R1

BOLT,3/8" - 16 x 14.6"

balance spring

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

21741R1

WASHER

13/32 x 7/8 x 11 ga C-Z

1шт.

40

674177R1

SUPPORT

BRACKET ASSY, pickup drive shaft pivot RH

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

4шт.

41

662024R2

DRIVE SPROCKET

SPROCKET, pickup pivot drive shaft

1шт.

21651R1

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.

22004R1

LOCK PIN,3/16" x 2", Slotted

Pin, 3/16" x 2", Slotted

1шт.

42

CHAIN, main drive pickup, use 83 links of 1-1/4 extended pitch agricultural transmission roller chain from 10 ft roll marked 569089R91 and 1 connecting link 456980R91 and 2 offset links 456929R91

1шт.

43

667717R1

BRACKET

pickup pivot drive shaft LH

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

2шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

44

667459R1

BLOCK

tightener

1шт.

45

662025R1

DRIVE SPROCKET

SPROCKET, pickup drive

1шт.

18786R1

BOLT,Hex, 3/8"-16 x 3 1/2", G2

3/8 x 3-1/2 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

46

582415R91

DRIVE SPROCKET,9T

SPROCKET ASSY, pickup drive idler, service for 180193C91, replaces 936047R91

1шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8 x 4 C-Z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z, (or as required)

4шт.

47

662003R2

DRIVE SPROCKET

SPROCKET, pickup pivot driver

1шт.

21825R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

22969R1

LOCK PIN,3/16" x 1 3/4", Slotted

Pin, 3/16" x 1 3/4", Slotted

1шт.

48

200499C1

FINGER

TINE, rubber pickup, special, 56 for 430 Baler, 70 for 440 Baler

1шт.

120376

NUT,5/16"-18, G5

56 for 430 Baler; 70 for 440 Baler 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 56 for 430 Baler, 70 for 440 Baler 5/16"

1шт.

49

201700C1

DEFLECTOR, tine, special, used w/rubber pickup tines thru 1969, 11 for 430 Baler, 13 for 440 Baler

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, , 11 for 430 Baler, 13 for 440 Baler Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

50

201738C1

RETAINER

end tine, special, used w/rubber pickup tines

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
