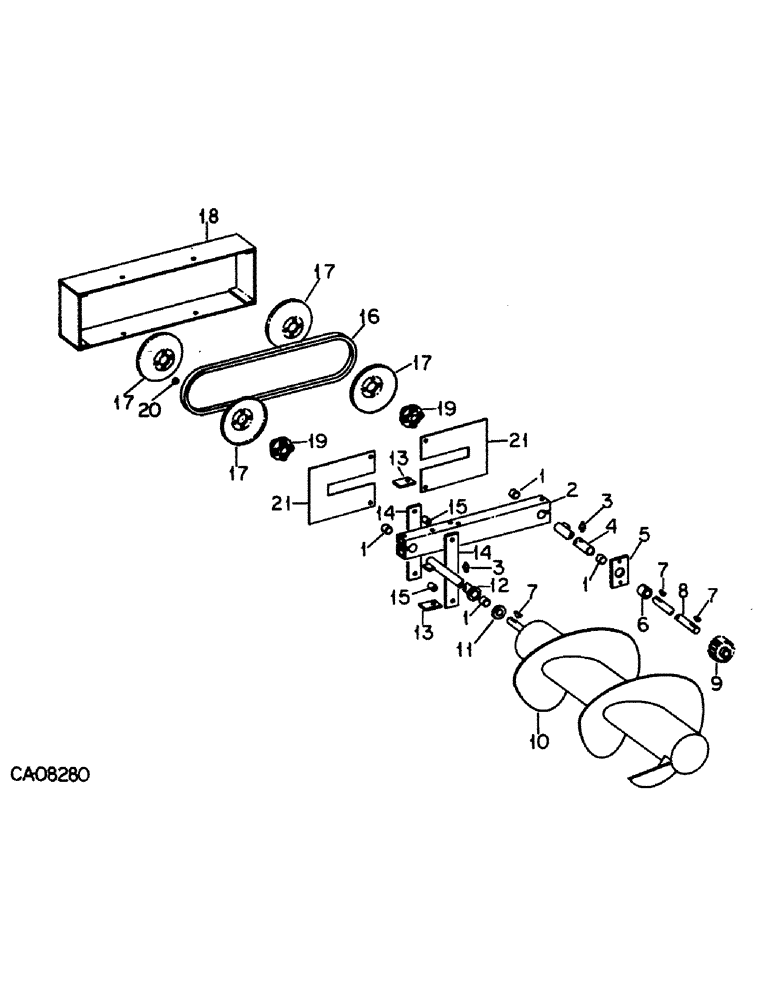

Запчасти Case IH 428 (A-12) - AUGER AND AUGER DRIVE SUPPORT, 428 BALER

1

495290R1

BUSHING

auger pivot relief

4шт.

2

1281313C1

ARM

W/PRODUCT GRAPHIC, auger, replaces 1265856C1

1шт.

179897

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 hex-hd cap

2шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

22191R1

WASHER

.531 x 1.750 x .164 znd

4шт.

ZA740950

DECAL

PRODUCT GRAPHIC, warning

1шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING 1/4-28 SELF TAPPING LUB

2шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

2шт.

4

202891C1

PIPE

ASSY, auger relief pivot

1шт.

5

495473R1

BRACKET

BEARING, auger relief RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

667774R1

COLLAR

auger relief pipe set

1шт.

102872

SET SCREW

1/4-20 x 3/4 C-Z sq-hd cup-pt set

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

7

124551

SCREW

1/4 x 7/8 SAE A Woodruff

3шт.

8

674301R1

SHAFT

auger drive

1шт.

9

674308R1

GEAR

PINION, auger drive

1шт.

22753R1

HEADED PIN,5/16" x 2 3/16"

PIN, HEADED, 5/16" x 2 3/16"

1шт.

12860R1

PIN

1/8 x 1/2 znp cot.

1шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z (or as required)

7шт.

23365R1

WASHER

29/32 x 1-11/32 x 20 ga C-Z (or as required)

4шт.

10

674286R1

AUGER

ASSY, 16 in. dia. auger

1шт.

11

665187R1

THRUST WASHER

bronze

1шт.

12

203023C91

PIPE

ASSY, auger core 16 in. dia. auger

1шт.

13

674307R1

STOP

auger

3шт.

18775R1

BOLT,Hex, 5/16"-18 x 5", G2

5/16 x 5 C-Z hex-hd mach

1шт.

632225R1

LOCK NUT

5/16-18 hex. lock

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

14

674306R1

STRAP

auger guide

2шт.

15

364002R1

SPACER,3/8" Pipe x 1"

3/8 x 1.000 std pipe

2шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8 x 1-3/4 crg type 5

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

21786R1

SQ HOLE WASHER,13/32" x 2 3/8" x .120", Sq Hole

13/32 x 2-3/8 x 11 ga C-Z sq hole

2шт.

16

3103014R2

BELT,1431.69 mm L

Auger drive 1431.69 mm L

1шт.

17

495480R1

PULLEY

sheave

4шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120376

NUT,5/16"-18, G5

8шт.

18

1254002C1

SHIELD

W/PRODUCT GRAPHIC

1шт.

181591

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

5/16-NF x 1/2 type 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

ZA740950

DECAL

PRODUCT GRAPHIC, warning

1шт.

19

674309R1

HUB

2шт.

17150R1

PIN,5/16" x 1 3/8", Slotted

2шт.

20

663668R2

WASHER

SPACER, pulley drive (or as required)

10шт.

21

3103015R1

PLATE

shield

2шт.

181591

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

5/16-NF x 1/2 type 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
