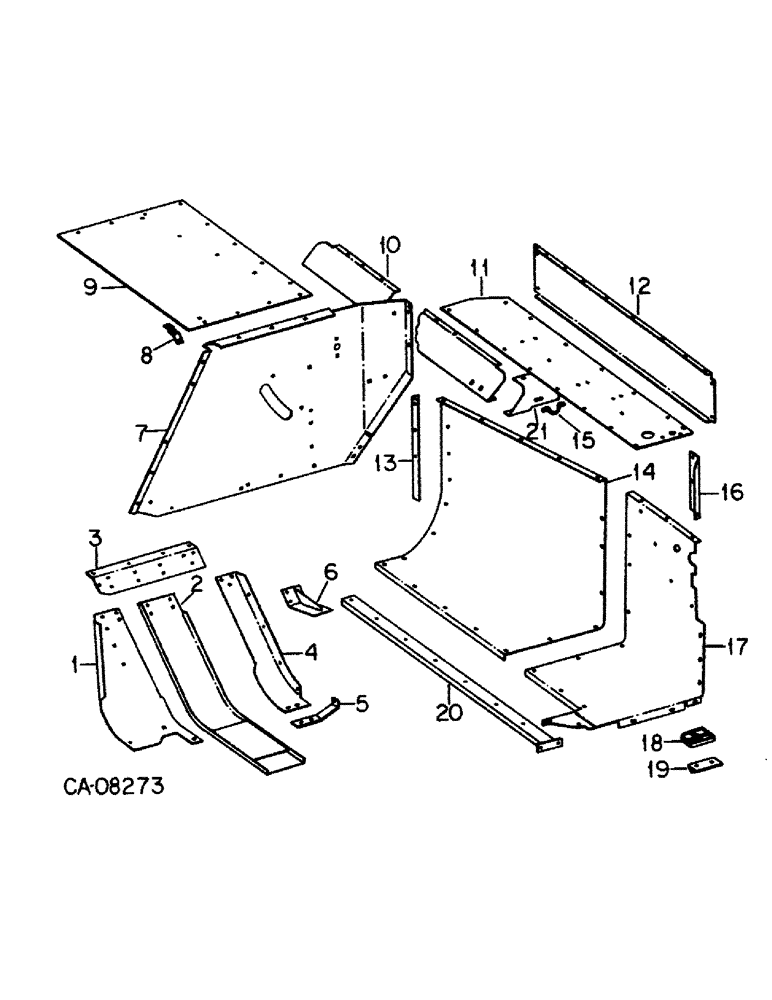

Запчасти Case IH 428 (A-08) - CROSS CONVEYOR AND FEED OPENING, 428 BALER

1

667743R1

SHEET

right front top

1шт.

670454R1

NUT

5/16-18 speed grip

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

2

3102953R2

CHANNEL

assy packer

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

4шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

3

667745R1

SHEET

right center top

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach

3шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

3шт.

4

3102952R1

SHEET

right rear top

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

5

200884C2

STRAP

feed opening support

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

3102974R1

DEFLECTOR

ASSY, packer

1шт.

7

674212R1

SHEET

cross conveyor side

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

8

667742R1

STRAP

feed opening tie

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

9

1281044C1

COVER

W/PRODUCT GRAPHIC, cross conveyor, replaces 674215R1

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach

8шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

8шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

ZA017196

PRODUCT GRAPHIC, warning

1шт.

10

1265882C1

SHEET

cross conveyor front

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach

8шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

6шт.

672803R1

NUT

1/4-20 speed grip

9шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

6шт.

160578

SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/2"

1/4 x 1-1/2 znp p/hdcr mach

1шт.

11

674221R1

TOP

twine can

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach

8шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 x 5/8 type 5

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21549R1

WASHER

.281 x .750 x .042

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

674226R1

PANEL

rear cross sheet

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach

8шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

8шт.

13

662151R1

BRACE

cross conveyor platform

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

14

204193C1

PLATFORM

cross conveyor

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

5шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach

5шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

5шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

10шт.

15

655108R2

GUIDE

twine

3шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

6шт.

16

674224R1

SHEET

rear filler

1шт.

180018

CONNECTING LINK

1/4 x 5/8 type 5

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21784R1

WASHER

.266 x .500 x .054

1шт.

17

204191C1

SHEET

ASSY, feed opening bottom

1шт.

86511938

SCREW,Pan, 5/16" - 18 x 3/4"

5/16 x 3/4 znp p/hds mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

3шт.

18

672150R1

DEFLECTOR

feed opening

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 crg type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21872R1

WASHER

.406 x .625 x .054

2шт.

19

674231R1

ANGLE

GUIDE, feed opening knife

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

.406 x 1.000 x .056

4шт.

20

204187C1

CHANNEL ASSY, cross conveyor support

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21

674121R1

SUPPORT

face plate corner

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

366861C1

LOCK WASHER

5/1L rib lock

1шт.
