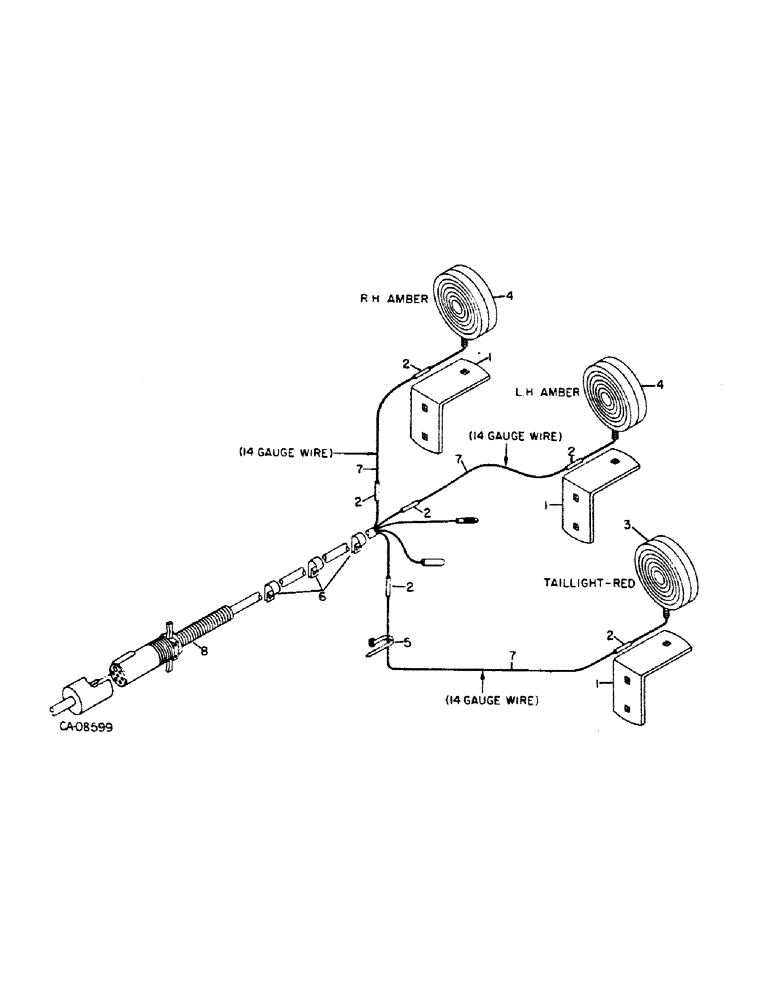

Запчасти Case IH 428 (A-63) - FLASHING WARNING LIGHTS

1

ZA708451

BRACKET

light

3шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 crg type 5

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

ZA707964

TERMINAL CONNECTOR,14 - 16

TERMINAL

8шт.

3

ZA103734

LIGHT

tail, red, only serviceable item is

1шт.

9417866

BULB,C6, #1156, 12.8V

LAMP, type C-6 trade #1156

1шт.

4

ZA103735

LIGHT

flasher, amber, only serviceable item is

2шт.

9417866

BULB,C6, #1156, 12.8V

LAMP, type C-6 trade #1156

1шт.

5

291207C1

CLAMP

TIE, hose

12шт.

6

299614C1

CLAMP

.500 DIA znp coated med clo

3шт.

7

WIRE, 14ga x 30 ft long, furnish from 100 ft roll marked 995055R1, for 1 ft length

1шт.

8

ZA104936

HARNESS

lighting

1шт.
