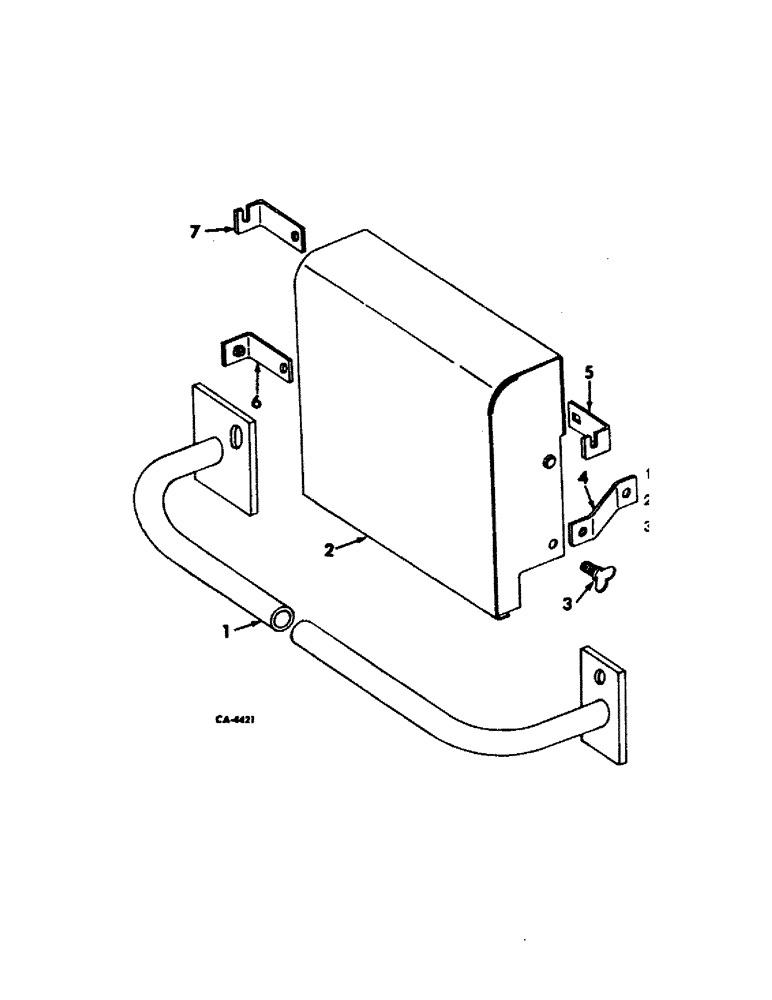

Запчасти Case IH 428 (A-61) - SHIELDS AND GUARDS

1

210503C1

GUARD

ASSY, needle pitman rod

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

3103965R2

SHIELD

W/PRODUCT GRAPHICS, needle crank drive

1шт.

ZA74950

PRODUCT GRAPHIC, warning

1шт.

3

673690R1

BOLT

BOLT, 5/16-18 wing

1шт.

4

210500C1

BRACKET

ASSY, needle drive shield

1шт.

5

210502C1

ANGLE

needle drive shield

1шт.

6

210514C1

SUPPORT

ASSY, shield

1шт.

7

210515C1

SUPPORT

shield top

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 znd hex lock

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex lock

1шт.
