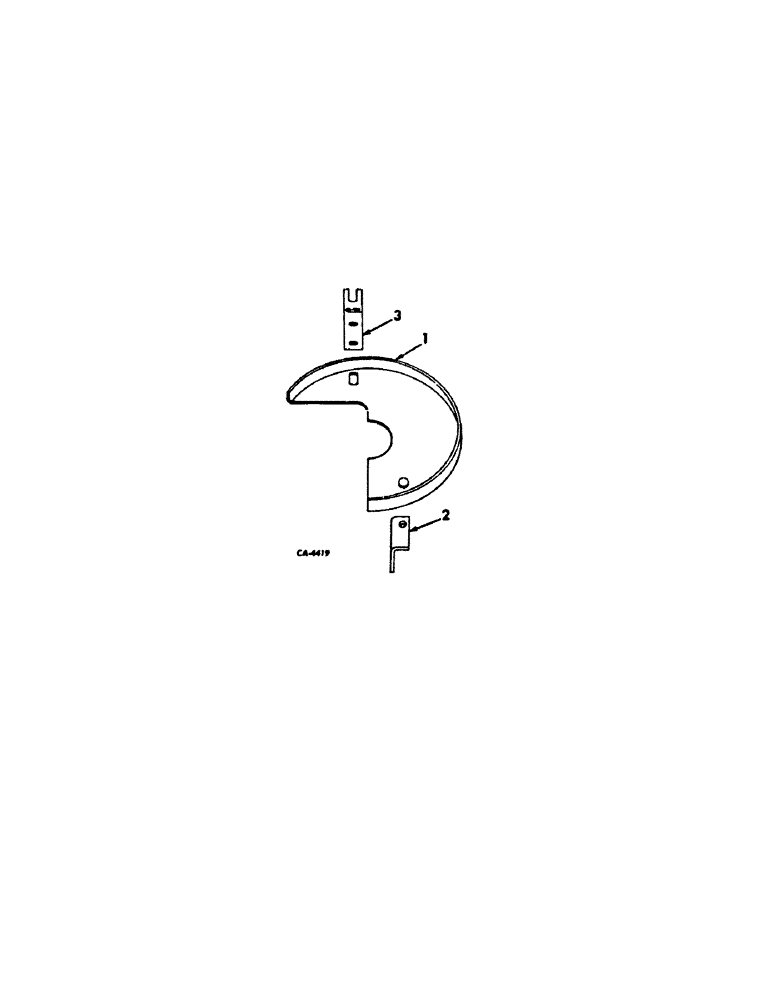

Запчасти Case IH 428 (A-60[B]) - FLYWHEEL, SHIELD AND SUPPORT

1

208166C1

SHIELD

ASSY, flywheel rear

1шт.

2

208168C1

SUPPORT

flywheel shield

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 znd hex lock

1шт.

11743R

SPACER, 428 & 435

1шт.

3

208169C1

SUPPORT

flywheel upper

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

204812C1

WING NUT

NUT, 3/8-16 wing

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 znd hex-hd cap

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

21760R1

WASHER,0.47" ID x 0.88" OD x 0.19" Thk

.469 x .875 x .164 znd

2шт.
