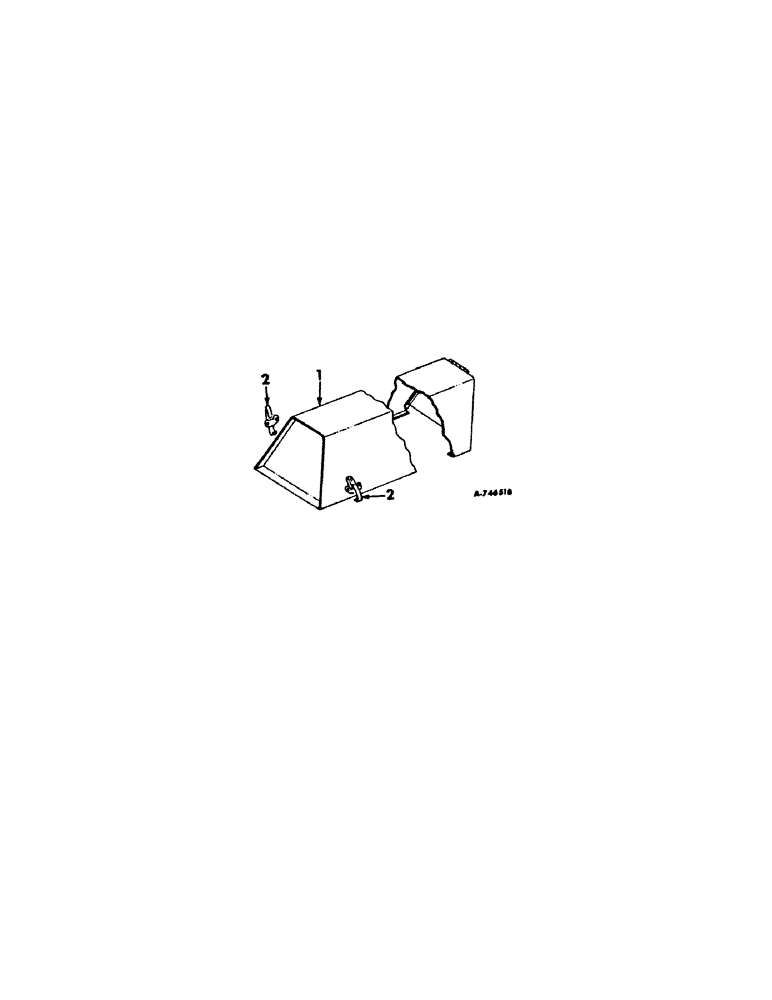

Запчасти Case IH 428 (A-60[A]) - PLUNGER CRANK SHIELD ATTACHMENT

1

674376R1

SHIELD

ASSY, plunger crank

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

2шт.

2

669184R1

CLAMP

LATCH, PTO shield

2шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 C-Z slt-pan-hd mach

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 ga

4шт.
