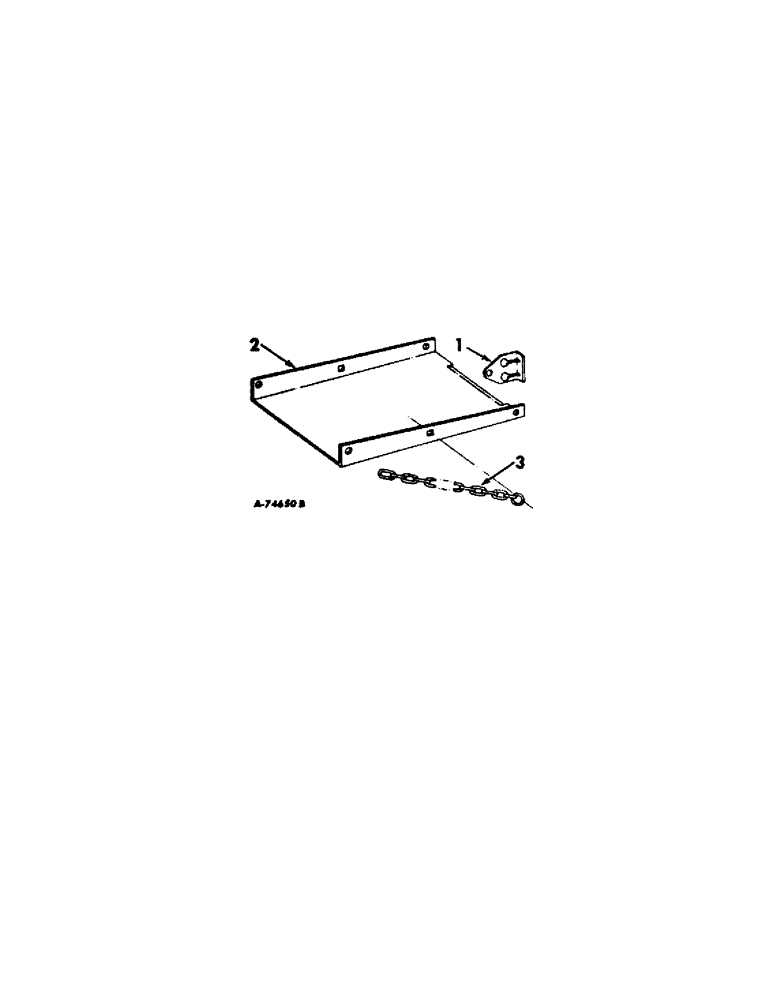

Запчасти Case IH 428 (A-59[A]) - BALE CHUTE ATTACHMENT

1

203187C1

HOLDER

chain

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

1шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga znd

2шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 znd hex lock

1шт.

2

203091C1

CHUTE (DOWNWARD)

CHUTE, bale

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 CAD hex lock

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

3

669647R1

CHAIN (AG)

CHAIN, bale chute

2шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16-18 x 1-1/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

668569R1

WASHER

11/32 x 1-1/2 x 11 ga C-Z

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

4шт.

3

495526R1

CHAIN (AG)

CHAIN, bale chamber ext hold-up

1шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

668569R1

WASHER

11/32 x 1-1/2 x 11 ga znd

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga znd

2шт.
