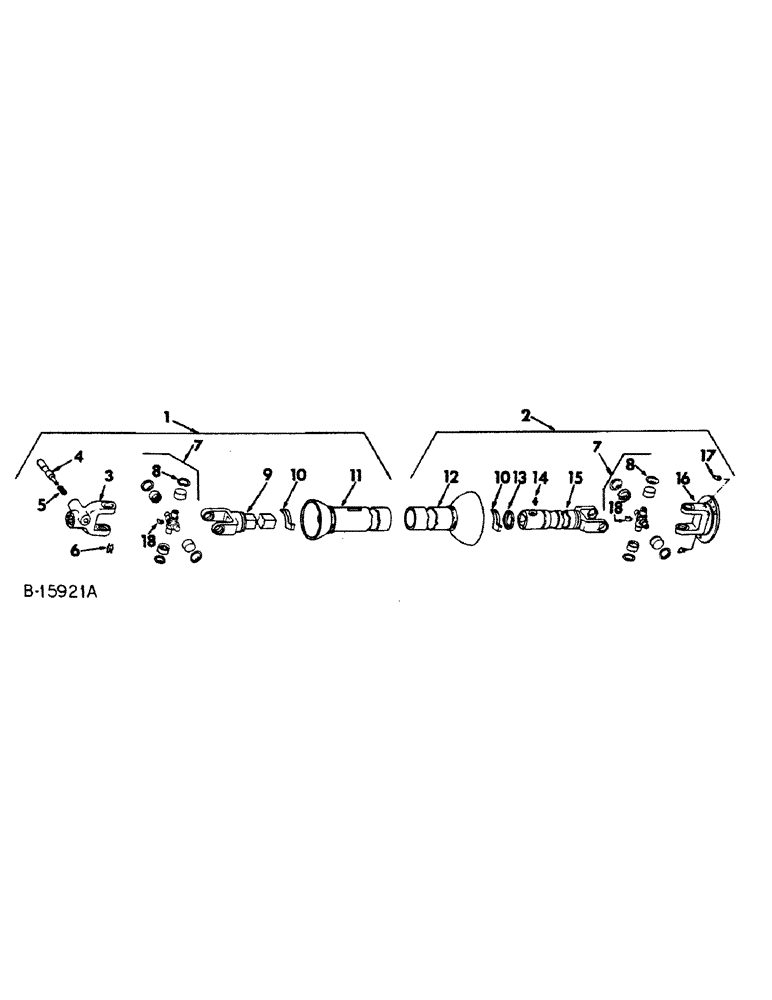

Запчасти Case IH 428 (A-56) - POWER TAKE-OFF DRIVE SHAFTS, TWO KNUCKLE, PLASTIC SHIELDS, HAYSE DANA, ROCKWELL, REXNORD, 425 & 435

1

210551C93

JOINT

ASSY, drive-tractor half

1шт.

2

210552C92

JOINT ASSY, drive-implement half

1шт.

3

568100R92

YOKE

ASSY, w/Q.A. pin

1шт.

4

455346R21

PIN

ASSY, lock, composed of

1шт.

5

455347R1

VALVE SPRING

SPRING, lock pin

1шт.

6

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X

1шт.

7

200464C91

PACKAGE

KIT, cross repair

2шт.

8

576420R1

RING

snap

8шт.

9

667816R91

YOKE

& SHAFT ASSY, rectangular

1шт.

10

542956R1

NYLON BEARING,0.312"

shield

6шт.

11

210607C93

SHIELD

W/PRODUCT GRAPHIC, outer

1шт.

ZA017150

PRODUCT GRAPHIC, warning

1шт.

12

210608C1

SHIELD

inner

1шт.

13

613439R1

BRACKET

BEARING, inner shield

1шт.

14

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 NF lub.

1шт.

15

667817R91

YOKE

AND TUBE

1шт.

16

663101R92

YOKE

flanged

1шт.

17

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 x 45 deg self tap

2шт.

18

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 x 65 deg PTF

2шт.
