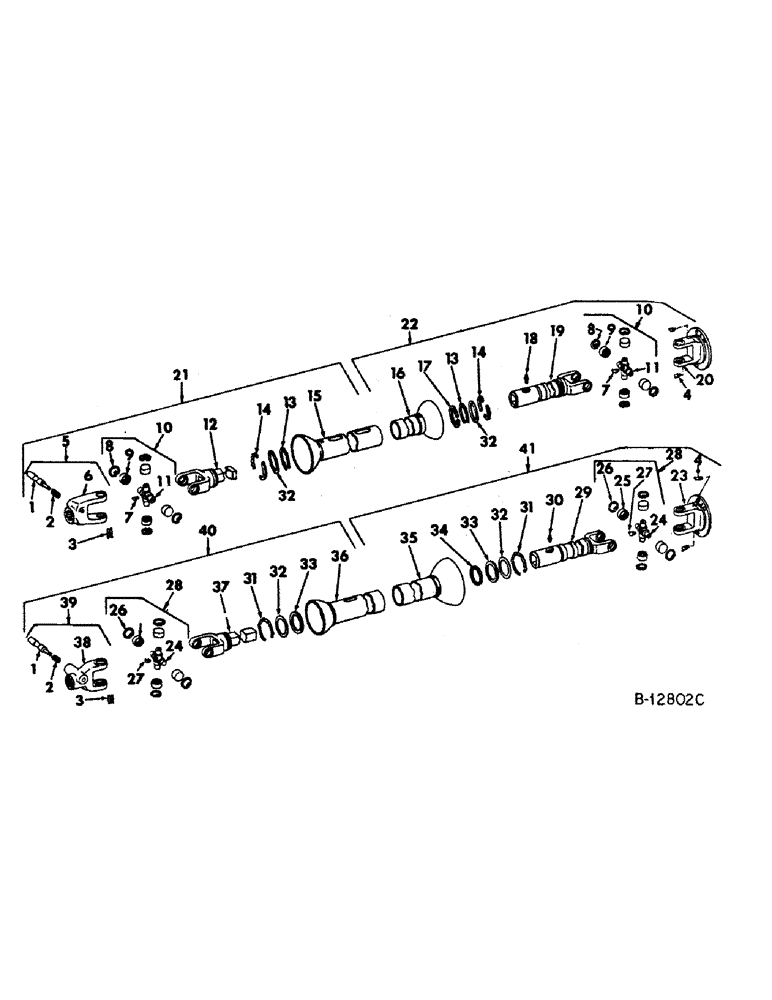

Запчасти Case IH 428 (A-55) - POWER TAKE-OFF DRIVE SHAFTS, TWO KNUCKLE, STEEL SHIELDS, HAYSE DANA, ROCKWELL, REXNORD, 428 & 435

1

445346R21

PIN ASSY, lock, composed of

1шт.

2

455347R1

VALVE SPRING

SPRING, lock pin

1шт.

3

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, lock

1шт.

4

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4 45D taper drive thd lub

4шт.

5

668335R11

FORK

YOKE W/LOCK PIN

1шт.

6

NSS

NOT SOLD SEPARAT

YOKE

1шт.

7

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 65 deg lub

2шт.

8

667498R1

RING

SNAP RING, cross brg retainer

8шт.

9

NSS

NOT SOLD SEPARAT

BEARING, cross

8шт.

10

667496R91

SPIDER ASSY.

KIT, cross repair

2шт.

11

NSS

NOT SOLD SEPARAT

CROSS

1шт.

12

668334R91

YOKE AND SHAFT, tractor half

1шт.

13

613436R1

CLAMP

RING, snap

2шт.

14

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

2шт.

15

668333R1

SHIELD

outer

1шт.

16

668338R1

SHIELD

SHILED, inner

1шт.

17

613439R1

BRACKET

BEARING, center nylon

1шт.

18

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4 str lub

1шт.

19

668339R91

YOKE AND TUBE, implement half 22.62" Length

1шт.

20

663101R92

YOKE

implement

1шт.

21

668331R91

SHAFT

tractor half, chain belt

1шт.

22

668332R91

SHAFT, implement half, chain belt

1шт.

23

663101R92

YOKE

flanged

1шт.

24

NSS

NOT SOLD SEPARAT

CROSS

1шт.

25

NSS

NOT SOLD SEPARAT

BEARING, needle

8шт.

26

576420R1

RING

bearing retainer snap

8шт.

27

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 65 deg lub

2шт.

28

200464C91

PACKAGE

KIT, cross repair

2шт.

29

667817R91

YOKE

AND TUBE

1шт.

30

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4 self-tapping lub

1шт.

31

613436R1

CLAMP

RING, bearing retainer snap

2шт.

32

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

4шт.

33

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

2шт.

34

613439R1

BRACKET

BEARING, nylon

1шт.

35

668404R91

SHIELD

inner

1шт.

36

668405R91

SHIELD

outer

1шт.

37

667816R91

YOKE

AND SHAFT, rectangular

1шт.

38

NSS

NOT SOLD SEPARAT

YOKE

1шт.

39

568100R92

YOKE

W/QUICK ATTACHING PIN

1шт.

40

668370R91

JOINT

SHAFT, tractor half, Rockwell

1шт.

41

668371R92

JOINT

SHAFT, implement half, Rockwell

1шт.
