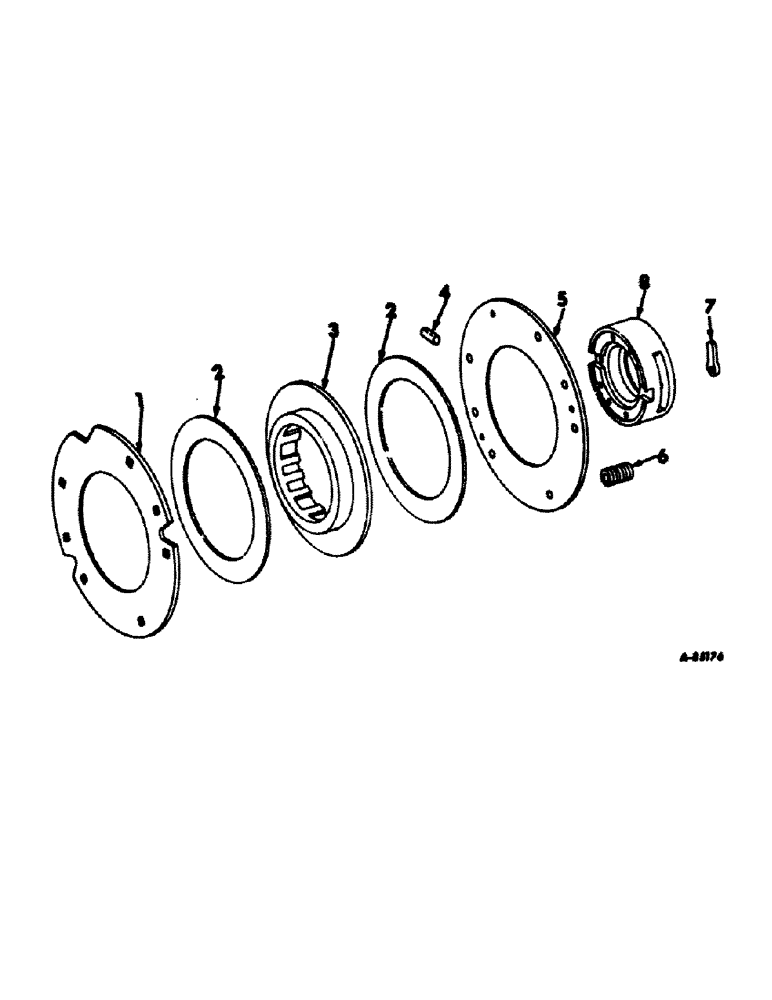

Запчасти Case IH 428 (A-50) - POWER TAKE-OFF DRIVE SHAFT CLUTCH

1

662270R1

PLATE

clutch pressure

1шт.

2

201744C1

FACING

clutch

2шт.

3

201743C1

DISC

over running clutch

1шт.

4

670687R11

SPACER

ASSY, clutch, set of 7

1шт.

5

662269R1

PLATE

clutch back

1шт.

6

M1015

SPRING

clutch

7шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 C-Z sq-nk crg

7шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 C-Z hex. lock

7шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

7шт.

7

662241R1

RATCHET

DOG, over-running clutch

2шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 rod end C-Z

2шт.

8

201742C2

CARRIER

overunning dog

1шт.

REF 8 THERE IS NO BUSHING ON THIS PRINT.3.384/3.381 DIA BORE.

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 C-Z hex-hd mach

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.
