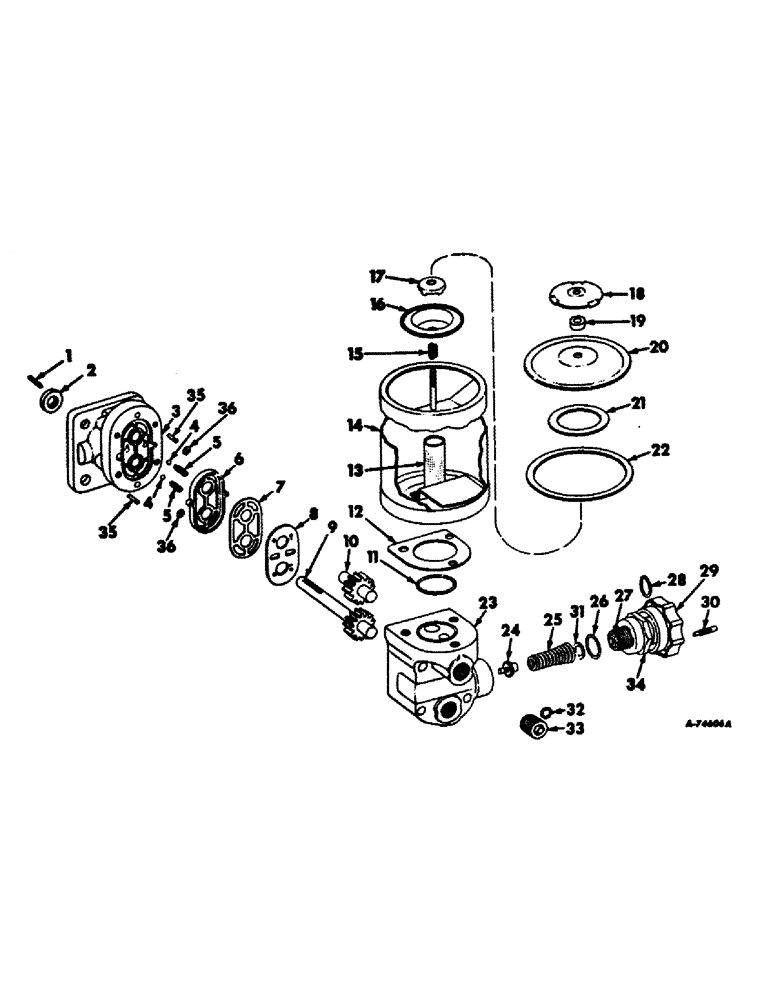

Запчасти Case IH 428 (A-48) - HYDRAULIC BALE TENSION DEVICE, HYDRAULIC PUMP AND RESERVOIR

674973R91

PUMP

hyd bale density control

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

1

668390R1

KEY, 1/8 x 3/4 sq parallel

1шт.

2

202996C91

SEAL

shaft oil

1шт.

3

668382R91

LARGE PLATE

PLATE ASSY, front

1шт.

180046

SPRING

1/4 x 2-1/4 type 5

4шт.

4

17006R1

BALL

3/16 grade 25 metal

2шт.

5

668391R1

SPRING

check

2шт.

6

668386R1

SEAL

diaphragm

1шт.

7

668383R1

GASKET

protector

1шт.

7

668384R1

GASKET

backup

1шт.

8

204287C1

DIAPHRAGM

1шт.

9

668388R91

GEAR

ASSY, drive

1шт.

10

668389R91

GEAR

ASSY, idler

1шт.

11

375269R1

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1-1/2 x 1-11/16 class 5

1шт.

12

668399R1

GASKET

reservoir

1шт.

13

668398R91

FILTER

ASSY

1шт.

14

668392R91

RESERVOIR ASSY, oil

1шт.

86627130

WING NUT,1/4"-20

NUT, 1/4-20 znd wing

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

15

668401R1

SPRING

filter pocket

1шт.

16

668395R11

FILTER

POCKET W/GASKET, filter

1шт.

17

668396R1

CAP

filter

1шт.

18

668394R1

CAP

breather

1шт.

19

668400R1

FILTER

air

1шт.

20

668393R11

COVER

LID W/GASKET, reservoir

1шт.

21

668402R1

GASKET, filter pocket

1шт.

22

668397R1

GASKET

lid

1шт.

23

Not serviced separately, order 668376R91

1шт.

24

674501R1

VALVE POPPET

POPPET ASSY, replaces 668377R91

1шт.

25

203059C1

SPRING

cylindrical compression

1шт.

26

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

1шт.

27

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

28

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 x 1/16 class 5, replaces 668830R1

1шт.

29

Not serviced separately, order 200419C19

1шт.

30

200418C1

ADJUSTMENT SCREW

adj

1шт.

31

394655R1

WASHER

SHIM, relief valve (or as required)

2шт.

32

668403R1

WASHER

WASHER, 17/64 x 31/64 x .050

2шт.

33

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 automotive soc-hd pipe

1шт.

34

200421C1

PLUG

ASSY, hex.

1шт.

35

443767

AXLE PIN

PIN, 1/4 x 1/2 dowel

2шт.

36

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16

2шт.

674974R91

KIT

housing repair, consists of ref 24, 25, 26, 27, 28, 30, 31, 35 and 38

1шт.

200419C91

KIT

special knob repair, consists of 1 roll pin, 1 knob and 1 connecting rod

1шт.

200420C91

SEAL KIT

major seal repair, consists of ref 2, 4, 5, 6, 7, 8, 11, 12, 19, 21, 22, 26, 28, 32 and 36

1шт.
