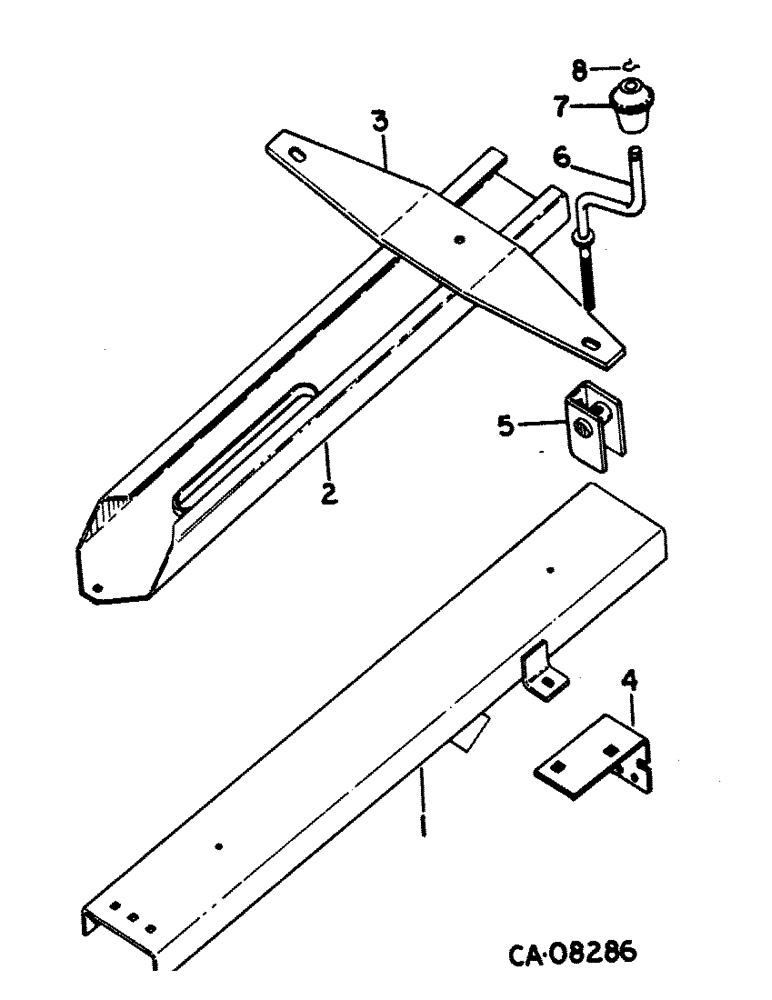

Запчасти Case IH 428 (A-46B) - MANUAL BALE TENSION, 428 BALER

1

674360R1

CHANNEL, lower tension

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

674025R1

X

CHANNEL, upper tension

1шт.

3

670680R1

SPRING

tension

1шт.

18700R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 3", Gr 2

BOLT, 7/16 x 3 crg type 1

1шт.

271501

SOCKET

NUT, 7/16 type 5

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

4

674374R1

BRACE, lower

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

17142R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 2

BOLT, 3/8 x 3-1/2 crg type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

671126R91

SUPPORT

ASSY, bale tension

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4 crg type 5

2шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cdp hex. lock

2шт.

6

200673C1

CRANK

SCREW ASSY, tension adjusting

2шт.

589068R1

WASHER

.656 x 1.250 x .090

2шт.

7

201397R1

KNOB

2шт.

8

321935C1

SNAP RING,#62, Ext

RING, .553 crescent ext ret

2шт.
