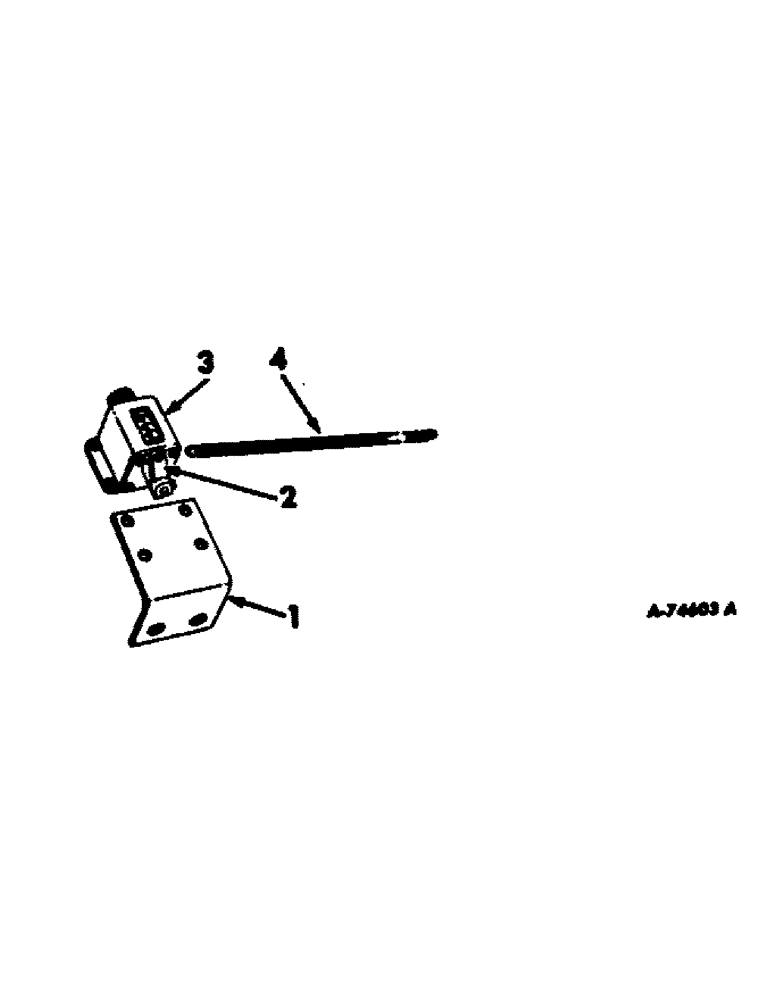

Запчасти Case IH 428 (A-45) - BALE COUNTER

1

662364R1

BRACKET

MOUNT, bale counter

1шт.

120583

SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"

1/4-20 x 5/8 C-Z rd-hd slt mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

656707R91

ARM

W/SET SCREW, bale counter

1шт.

3

495754R92

METER

COUNTER W/ATTACHING HARDWARE, bale (replaces 495046R92)

1шт.

4

495525R1

SPRING

bale counter

1шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

1шт.

202596C4

KIT

PACKAGE, product graphics, replaces 210611C92, consists of PRODUCT GRAPHICS

1шт.

ZA015891

CAUTION PRODUCT GRAPHICS

1шт.

ZA740950

DECAL

WARNING, twine instructions (NSS), wire instructions (NSS) PRODUCT GAPHICS

2шт.

ZA014839

WARNING, hitch instructions (NSS), shear bolt instructions (NSS), oil level (NSS), packer pivot pin centers (NSS), grease symbol (NSS) PRODUCT GRAPHICS

4шт.

202641C3

DECAL

WARNING PRODUCT GRAPHICS

1шт.

210600C1

DECAL

WARNING, lub guide (NSS), drawbar adjusting (NSS) PRODUCT GRAPHICS

1шт.

ZA017145

WARNING PRODUCT GRAPHICS

1шт.

ZA017150

WARNING, important (NSS) PRODUCT GRAPHICS

1шт.

175311C1

REFLECTOR

red PRODUCT GRAPHICS

1шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, white border, consists of (2) IH trademark 1.46 x 1.57 (NSS), (2) IH trademark 2.19 x 2.36, (2) IH trademark 2.93 x 3.15 PRODUCT GRAPHICS

1шт.

77582C91

PACKAGE

IH trademark, medium size, white border, consists or, (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS) PRODUCT GRAPHICS

1шт.

77583C91

PACKAGE

IH trademark, large size, white border, consists of (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 8.27 (NSS), (2) IH trademark 10.24 x 11.02 (NSS) PRODUCT GRAPHICS

1шт.

1254077C91

DECAL

PACKAGE, IH trademark, large size, silver border, consists of (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 8.27 (NSS), (2) IH trademark 10.24 x 11.02 (NSS) PRODUCT GRAPHICS

1шт.

80762C91

DECAL

PACKAGE, IH trademark, medium size, silver border, consists of (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS) PRODUCT GRAPHICS

1шт.

80761C91

PACKAGE

IH trademark, small size, silver border, consists of (2) IH trademark 1.46 x 1.57 (NSS), (2) IH trademark 2.19 x 2.36 (NSS), (2) IH trademark 2.93 x 3.15 (NSS) PRODUCT GRAPHICS

1шт.

547495R92

DECAL KIT

PACKAGE, International, for red machines, consists of (2) International 8.56 x .56 (NSS), (2) International 14.06 x .94 (NSS), (2) International 23.12 x 1.50 (NSS), (2) International 35.12 x 2.25 (NSS) PRODUCT GRAPHICS

1шт.

547497R92

DECAL

PACKAGE, model designation, for red machines, consists of (2) model designation 8.78 x 2.45 (NSS), (2) model designation 14.08 x 4.50 (NSS), (2) model designation 420.04 x 7.57 (NSS), (2) model designation 15.20 x 7.56 (NSS) PRODUCT GRAPHICS

1шт.

Note - 1263651C1 Decal, "Case International" 2306 mm long, or 7.5 ft. long

1шт.
