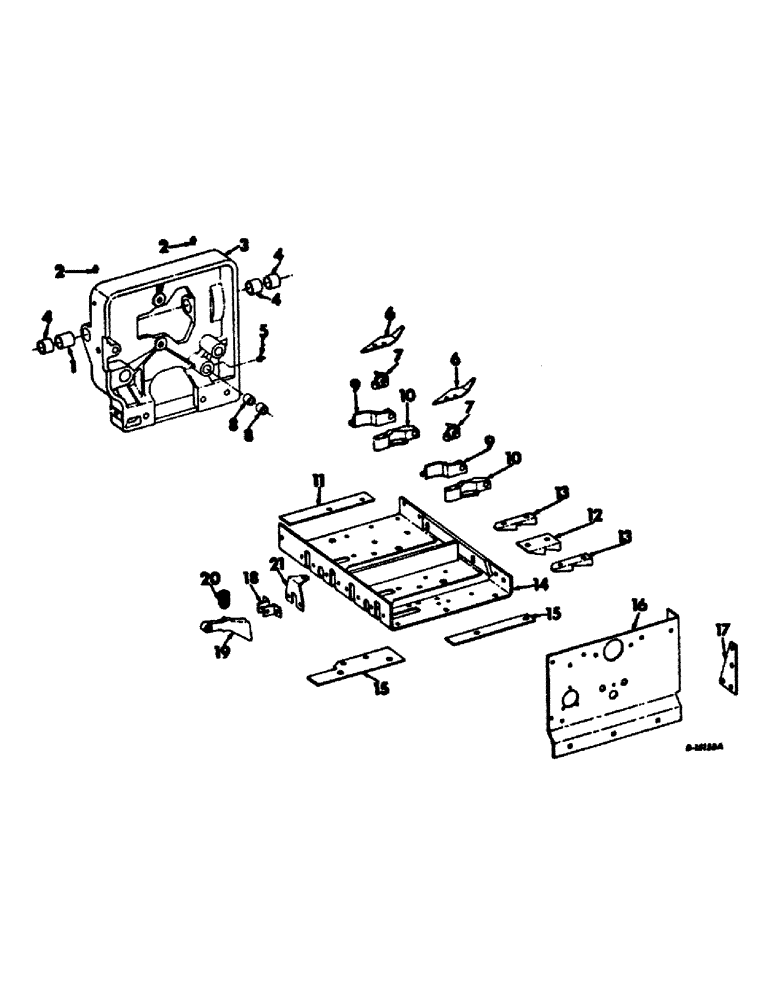

Запчасти Case IH 428 (A-40) - TWISTER BASE PLATE AND SUPPORTS, FOR WIRE BALER

1

674263R1

BUSHING

packer crank

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

3

667810R21

FRAME

W/BUSHINGS, twister drive

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 znd hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 znd hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

2шт.

4

674263R1

BUSHING

packer crank

3шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4-28 45 deg angle lub

1шт.

6

674334R2

GUIDE

wire tail upper

2шт.

18677R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2

BOLT, 5/16 x 2-1/2 znd sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 znd int-tooth lock

4шт.

7

674333R1

FINGER

base plate

2шт.

8

667811R1

BUSHING

trip arm stud

2шт.

9

201674C1

BRACKET

twist

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

201675C1

FINGER

tail guide and mount

2шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 znd sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

90560H

CLEVIS PIN,1/2" x 2.766"

PIN, 1/2 x 2-49/64 rod end

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

4шт.

648002

KNIFE

1/8" x 3/4"

2шт.

11

202619C2

FILLER

base plate RH

1шт.

12

495930R1

WEDGE

hay retainer wide

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

13

495929R2

WEDGE

hay retainer narrow

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

14

674326R1

PLATE

ASSY, wire base

1шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8 x 1-1/4 znd no. 3 plow

2шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd no. 3 plow

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

3шт.

19009R1

CARRIAGE BOLT,#3, 5/16" - 18 x 1 1/2", Gr 2

BOLT, 5/16 x 1-1/2 znd no. 3 plow

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

202618C1

FILLER

base plate LH

1шт.

16

1281314C1

SUPPORT

W/PRODUCT GRAPHIC, twister, replaces 674346R2

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

ZA740950

DECAL

PRODUCT GRAPHIC, warning

1шт.

17

667839R2

SUPPORT

PLATE, twister shaft brg support

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex.

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

22264R1

WASHER

13/32 x 1 x 7 ga C-Z

2шт.

18

674336R1

PIVOT

hay retainer

8шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach znd

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

19

674337R1

RETAINER

hay

4шт.

21964R1

HEADED PIN,3/8" x 1 1/2"

PIN, 3/8 x 1-1/2 C-Z std-hd

4шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

4шт.

20

665192R1

SPRING

hay retainer

4шт.

21

674335R1

BRACKET

hay retainer

4шт.

19328R1

LOCK PIN,3/8" x 3/4", Slotted

4шт.
