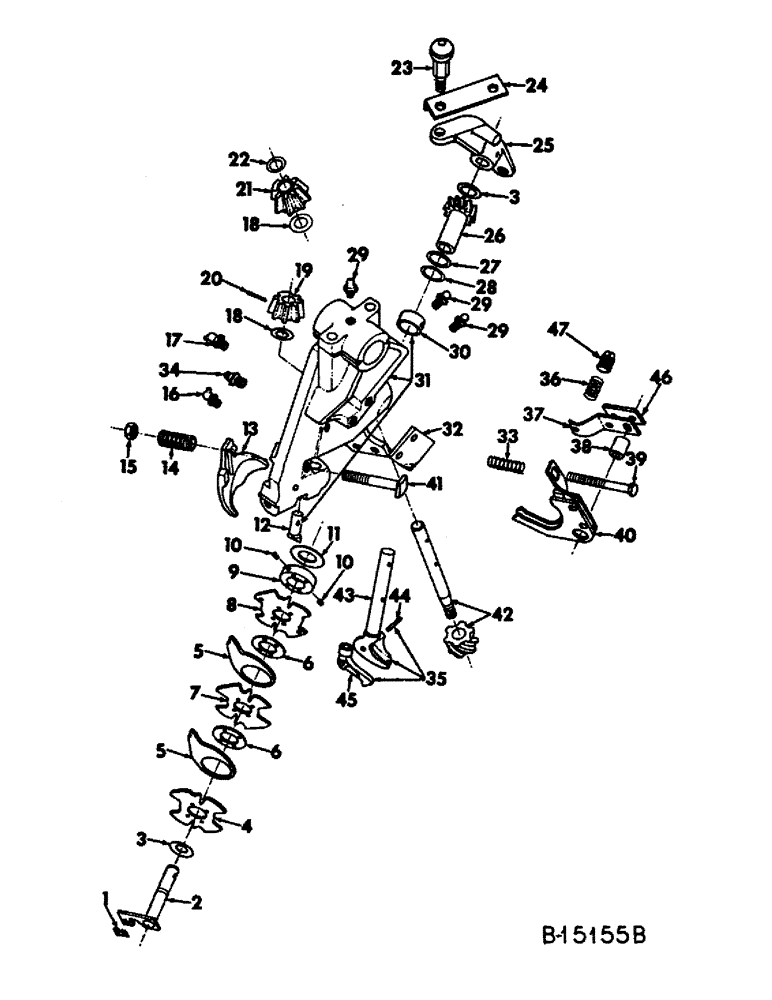

Запчасти Case IH 428 (A-36) - KNOTTER, ALL TWINE

201608C95

KNOTTER

ASSY, LH

1шт.

201646C95

KNOTTER

ASSY, RH

1шт.

1

668962R1

KNIFE,14.28mm L x 9.53mm W x 0.71mm Thk

BLADE, twine knife

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

8-32 x 3/16 znd pan-hd slt mach

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

2

201629C1

LARGE PIN

BODY ASSY, twine knife

1шт.

3

201632C1

SHIM

knife body (or as required)

3шт.

23042R1

WASHER

17/32 x 1 x 22 ga C-Z (or as required)

1шт.

4

201625C1

DISC

DISK, cord holder front

1шт.

5

201626C1

CLEANER

cord holder

2шт.

120621

SCREW,Sl Flat Hd, #10 - 24 x 1"

10-24 x 1 znd slt-f-hd mach

4шт.

6

201622C1

SPACER

cord holder disk

2шт.

7

201624C1

DISC

DISK, cord holder center

1шт.

8

201623C2

DISC

DISK, cord holder rear

1шт.

9

201621C1

HUB

cord holder disk

1шт.

10

202015C2

SET SCREW

SCREW, 1/4-20 x 3/8 hex-soc half dog pt set w/nylon pellet

2шт.

11

201627C1

SHIM

cord holder tube 24 ga (or as required)

1шт.

12

V618H

SPACER

PIECE, knotter frame wearing

1шт.

117898

PIN

5/32 x 1-1/16 sq-end str

1шт.

13

667563R2

CAM

knotter jaw closing

1шт.

14

U13033

SPRING

knotter closing cam

1шт.

15

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 CAD hex lock

1шт.

16

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

17

19630R91

LUBE NIPPLE,90 Degree, 1/8" NPT x .76" lg, Drive

FITTING, 1/8-27 PTF 90 deg angle self tap lub

1шт.

18

667239R1

DISC

SHIM, knotter hook shaft (or as required)

3шт.

19

495197R4

GEAR

PINION, bill hook

1шт.

20

Q3854

PIN

knotter pinion

1шт.

21

495192R3

GEAR

PIN, cord holder drive bevel

1шт.

22

202207C1

SHIM

cord holder spindle

1шт.

23

201634C1

GUIDE

FOLLOWER ASSY, cam

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

201705C2

CLIP

spring

1шт.

25

201633C1

ARM

actuating LH

1шт.

25

201647C1

ARM

actuating RH

1шт.

17176R1

LOCK PIN,3/16" x 1", Slotted

Pin, 3/16" x 1", Slotted

1шт.

26

201617C1

TUBE,0.507" ID, 1.4" OD, 2.88" Length

cord holder helical

1шт.

27

202205C1

SHIM

cord holder tube 24 ga (or as required)

1шт.

28

201628C1

SHIM

cord holder tube .010 (or as required)

1шт.

29

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 PTF str self self tap lub

3шт.

30

201611C1

BUSHING

knotter disk shaft

1шт.

31

201609C95

FRAME

W/WEARING PIECE, bushing and cap bolts, knotter

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 znd hex-hd cap

2шт.

366862C1

LOCK WASHER,3/8"

3/8"

2шт.

19962R1

DOWEL,3/8" x 3/4"

PIN, 3/8 x 3/4 dowel

1шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 znd hex-hd mach

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

21760R1

WASHER,0.47" ID x 0.88" OD x 0.19" Thk

15/32 x 7/8 x 7 ga C-Z

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

1шт.

32

201734C1

GUIDE

needle

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 znd hex-hd cap

2шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 znd hex-hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga (or as required)

2шт.

33

131DS

SPRING

keeper pressure

1шт.

34

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 spec taper drive thd lub

1шт.

35

204793C91

HOOK

ASSY, knotter

1шт.

36

313678R1

SPRING

twine end retainer helper, for use with frame, 201609C93

1шт.

36

204716C1

SPRING

twine end retainer helper, for use with frame, 201609C95

1шт.

37

201637C2

SPRING

twine end retainer, for use with frame, 201609C93

1шт.

37

204714C1

SPRING

twine end retainer, for use with frame, 201609C95

1шт.

38

201642C1

BUSHING

PIVOT, keeper blade

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

39

201643C1

SCREW

keeper blade adjustment

1шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 cop hex. lock

1шт.

NLS

NO LONGER SERVICED

5/16-18 znd hex. jam

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z (or as required)

2шт.

40

201638C1

HOLDER

KEEPER ASSY, cord holder

1шт.

990323R91

PACKAGE

RIVET, 1/4 x 3/4 rd hd, 1 lp pkg

1шт.

41

667533R1

BOLT,3/8" - 16 x 2 7/8"

3/8-16 x 2-7/8 znd special knotter jam cam

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

42

202206C91

SHAFT

AND PINION ASSY, cord holder drive

1шт.

21760R1

WASHER,0.47" ID x 0.88" OD x 0.19" Thk

15/32 x 7/8 x 7 ga C-Z

1шт.

NLS

NO LONGER SERVICED

7/16-20 znd hex.

2шт.

Q5066

PIN

1905 x 31/32 str

1шт.

21810R1

WASHER

19/32 x 15/16 x 22 ga C-Z

1шт.

21811R1

WASHER

19/32 x 15/16 x 20 ga C-Z

2шт.

43

Not serviced separately

1шт.

44

666515R1

PIN

knotter hook jaw

1шт.

45

666517R92

HOOK

JAW ASSY, knotter

1шт.

46

204715C1

SHEET

PAD, shim, for use w/frame 201609C95 (or as required)

3шт.

47

NLS

NO LONGER SERVICED

SCREW, 1/2-13 x 1-1/2 sq-hd dog-pt set, for use with frame, 201609C93

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

21739R1

WASHER

.344 x .562 x .054

1шт.

47

204717C1

ADJUSTMENT SCREW

spring adjusting, for use with frame, 201609C95

1шт.
