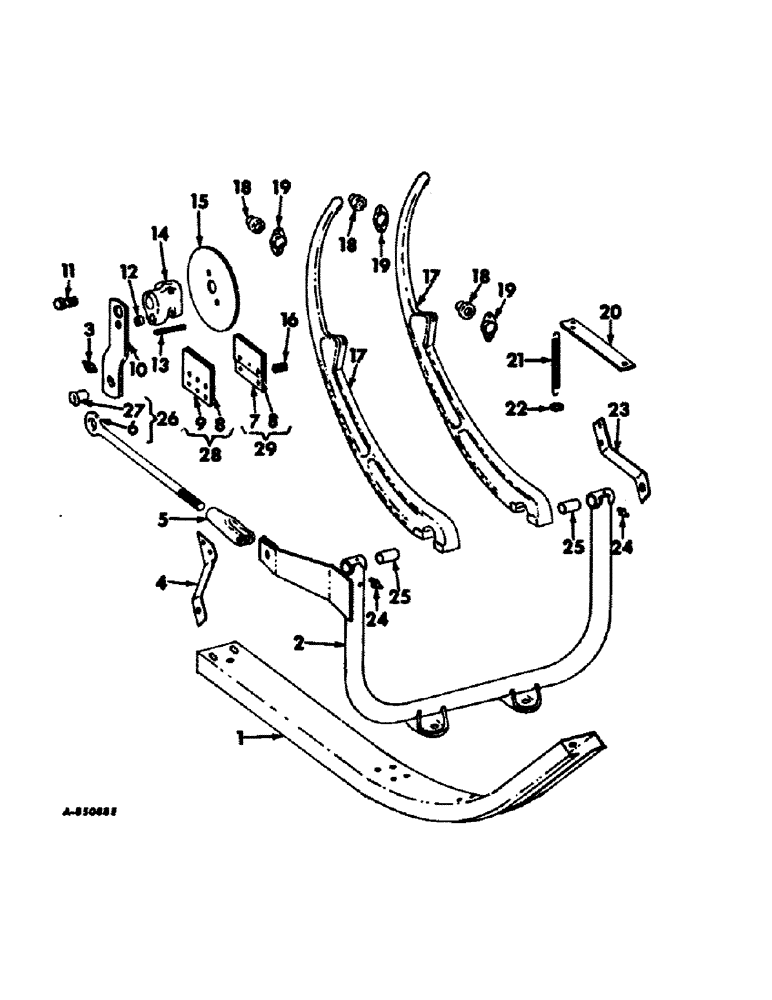

Запчасти Case IH 428 (A-30) - NEEDLES AND NEEDLE GUARD, FOR TWINE BALERS

1

674089R1

GUARD

needle

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 znd hex-hd mach

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

2

210522C1

FRAME

ASSY, needle tie pipe

1шт.

131016

WASHER

.656 x 1.312 x .074

8шт.

18724R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT, 5/8-11 x 4 znd sq-nk crg

2шт.

208778C1

FLANGE NUT

5/8-11 znd hex lock

2шт.

3

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive lub

1шт.

4

674098R1

STRAP

needle pivot support LH

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

127786

ADJUSTABLE CLEVIS,5/16"-18 x 4 15/16"

CLEVIS, 5/8-18 x 4-15/16 hv rod end

1шт.

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, , Rod end 5/8" x 1.844"

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

6

Not serviced separately, order 201667C91

1шт.

7

SHOE, knotter shaft brake RH, not serviced separately, order 754778R91

1шт.

8

LINING, knotter shaft brake, not serviced separately, order 754777R91 or 754778R91

1шт.

9

SHOE, knotter shaft brake LH, not serviced separately, order 754777R91

1шт.

10

201670C1

DRAWBAR

CRANK, needle drive

1шт.

181620

SCREW,Hex, 5/16" - 24 x 2", Gr 5

5/16-24 znd hex-hd cap shear bolt

1шт.

120368

NUT,5/16"-24, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

181620

SCREW,Hex, 5/16" - 24 x 2", Gr 5

BOLT, shear 5/16-28 x 2 C-Z hex-hd cap screw

1шт.

12

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

shear bolt

1шт.

13

Q72

KEY,5/16" Sq x 1 7/8", Par

3/8 x 1-7/8 sq parallel

1шт.

14

202710C91

HUB

needle drive crank, includes 662555R1 bushing

1шт.

443057

GROOVED PIN,3/8" x 2 1/4", Type F

Pin, Grooved, 3/8" x 2 1/4", Type F

1шт.

15

662153R1

PLATE

knotter brake pressure

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

16

U13033

SPRING

knotter brake

2шт.

18770R1

BOLT,Hex, 5/16"-18 x 2 3/4", G2

5/16 x 2-3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065 C-Z

2шт.

17

200588C5

NEEDLE

twine

2шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap

4шт.

120394

WASHER,3/8", SAE

WASHER, 1/2 C-Z med lock

4шт.

455150R1

WASHER

17/32 x 1-1/4 x 1/4

4шт.

18

670617R2

GUIDE

twine

4шт.

19

352133R1

PLATE

twine guide mounting

4шт.

20

674097R2

BRACKET

slack spring

1шт.

21

457094R1

SPRING

slack arm

2шт.

22

670621R1

RING

slack arm

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

21644R1

PIN,1/4" x 1"

Split (Cotter), 1/4" x 1"

2шт.

23

674096R1

STRAP

needle pivot support RH

1шт.

24

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

2шт.

25

210525C1

BUSHING

tie pipe pivot

2шт.

26

201667C91

PITMAN

W/PIN, needle

1шт.

121358

YOKE

5/8-18 znd hex.

1шт.

22258R1

WASHER

.656 x 1.000 x .027

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

27

Not serviced separately, order 201667C91

1шт.

28

754777R91

SHOE

ASSY, knotter shaft brake LH

1шт.

29

754778R91

SHOE

ASSY, knotter shaft brake RH

1шт.

180044

SPRING

SCREW, 1/4-20 x 2 znd hex-hd cap

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.
