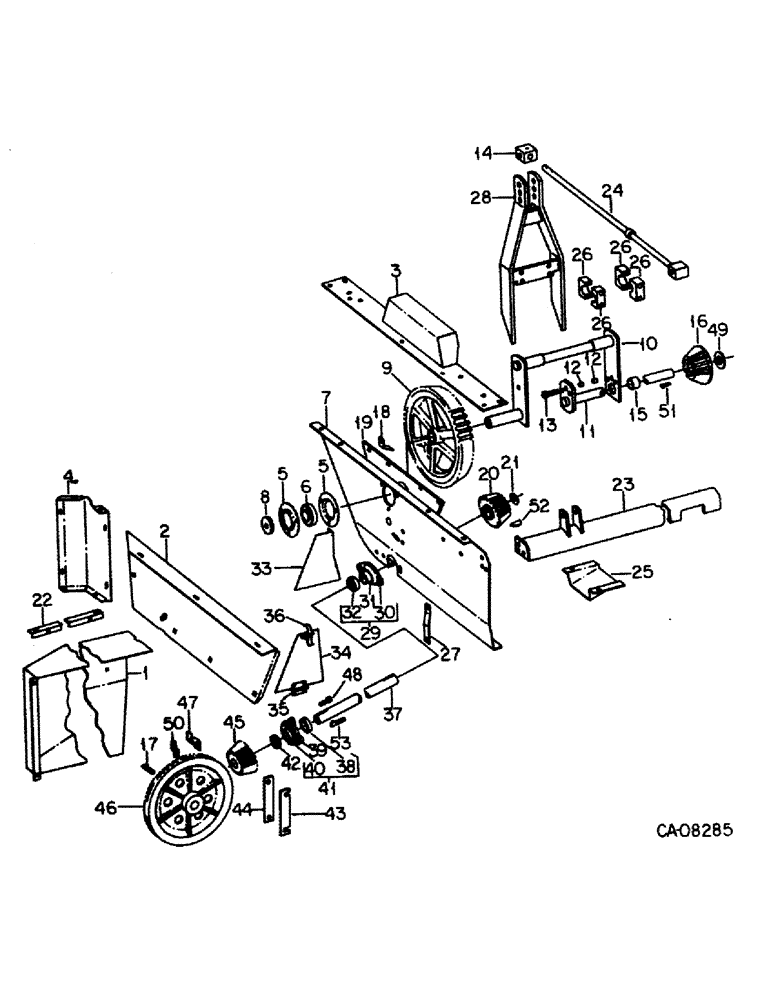

Запчасти Case IH 428 (A-27) - PACKER FINGERS AND DRIVE, 428 BALER

1

674142R1

COVER ASSY

packer drive

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

120376

NUT,5/16"-18, G5

2шт.

670472R1

SPRING NUT,J, Ret, 5/16"-18

5/16-18 spring

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23060R1

LOCK WASHER,Int Tooth, 5/16"

WASHER, 5/16 int tooth lock

2шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach

2шт.

674148R1

NUT

1/4-20 speed grip

2шт.

120423

LOCK WASHER,Int Tooth, 0.267" ID x 0.478" OD x 0.028"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

2

674125R1

SHIELD

packer brg

1шт.

670454R1

NUT

5/16-18 speed grip

3шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

4шт.

619855R1

WASHER

.344 x .750 x .054

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

674116R1

SHIELD

ASSY, packer gear upper

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 znp p/hds mach

6шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

6шт.

4

204667C1

SUPPORT

FRONT, feed opening

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 znp p/hds mach

3шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 znp p/hds mach

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

5шт.

21309R1

WASHER

.406 x .875 x .164

1шт.

5

667861R1

BEARING CAP,2.8346" ID x 4.8125" OD x 0.375"

brg retainer

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

6

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

ASSY, packer crank front

1шт.

7

674115R1

SUPPORT

packer brg front

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

5шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

8

667698R1

WASHER

packer crank brg front

1шт.

220724

BOLT,Hex Hd, Lock, 7/16"-14 x 1 1/4", G5

BOLT, 7/16 x 1-1/4 lock type 5

1шт.

9

667768R1

GEAR

packer drive upper

1шт.

179891

SHAFT

1/2 x 2-1/2 pln type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

.531 x 1.000 x .056 (or as required)

1шт.

10

1281007C1

ASSEMBLY

CRANKSHAFT ASSY, packer

1шт.

608085R1

WASHER

1.406 x 2.000 x .054 (or as required)

4шт.

21794R1

WASHER

1.406 x 2.000 x .033 (or as required)

1шт.

11

667726R91

CRANKSHAFT

ASSY, packer rear

1шт.

181377

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

3/8-NF x 1-3/4 pln type 5

1шт.

9413938

NUT, 3/8-NF PHC p/t lock type 1

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

137263

STRIP

3/16" x 2"

1шт.

608085R1

WASHER

1.406 x 2.000 x .054 (or as required)

8шт.

21794R1

WASHER

1.406 x 2.000 x .033 (or as required)

4шт.

12

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

shear bolt

1шт.

120368

NUT,5/16"-24, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

181620

SCREW,Hex, 5/16" - 24 x 2", Gr 5

BOLT, shear 5/16-27 x 2 C-Z hex-hd cap screw

1шт.

14

3103136R2

PIVOT

packer relief rod

1шт.

159716C1

SPACER,3/4" Tube x 5/8"

0.532 x .0750 x 0.562

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

2шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub

2шт.

15

667729R2

SLEEVE

packer crank

1шт.

16

495163R3

GEAR

intermediate miter

1шт.

17

669016R1

KEY

3/8 x 2-3/4 taper gib

1шт.

18

667724R1

ANCHOR

packer brg support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

19

667725R1

PLATE

packer brg front support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20

667766R1

GEAR

PINION, packer drive upper

1шт.

220724

BOLT,Hex Hd, Lock, 7/16"-14 x 1 1/4", G5

BOLT, 7/16 x 1-1/4 lock type 5

1шт.

608085R1

WASHER

1.406 x 2.000 x .054 (or as required)

2шт.

21

667698R1

WASHER

packer drive shaft upper

1шт.

22

674147R1

ANGLE

SUPPORT, packer cover

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

23

1265860C1

SUPPORT

ASSY, packer relief

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

24

3103132R1

ROD

packer relief

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

273924

SNAP RING

NUT, 1/4 CAD p/t lock type 5

2шт.

23885K

SPACER,3/4" Tube x 2 1/16"

3/4 x 2.062 tube

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

25

667741R1

SHIELD

packer pinion hay

1шт.

26

3103125R1

BEARING HALF

BEARING ASSY, packer finger

4шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

5/16 x 3 type 5

4шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD p/t lock type 5

4шт.

619855R1

WASHER

.344 x .750 x .054

8шт.

27

667763R1

STRAP

packer brg adjusting

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

28

3103126R2

FINGER

reversible packer

2шт.

29

667864R91

SPARE PART

BEARING ASSY, packer drive upper

1шт.

29

668043R91

BEARING ASSY

packer drive upper

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 crg type 1

1шт.

30

Not serviced separately, order brg assy

1шт.

31

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

ASSY, packer drive upper, less collar

1шт.

32

517645R11

COLLAR

W/SET SCREW, brg locking

1шт.

33

667737R1

SHEET

tool box end

1шт.

669637R1

SELF-TAP SCREW

5/16-18 x 1/2 washer hd

2шт.

34

674126R92

DOOR

ASSY, tool box

1шт.

35

667736R1

HINGE

tool box door

1шт.

112419

RIVET, .140 x 17/64 tinner

2шт.

26208R1

SCREW,Hex Wash Hd, #10 x 3/8"

no. 10NF x 3/8 h/whd tap, tap type D

2шт.

36

669184R1

CLAMP

LATCH, tool box door

1шт.

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW, no. 10 x 3/8 znp p/hds mach

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

37

667762R1

SHAFT

packer drive

1шт.

38

517645R11

COLLAR

W/SET SCREW, brg locking

1шт.

39

Not serviced separately, order brg assy

1шт.

40

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

ASSY, packer drive lower less locking collar

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

41

667866R91

FLANGED BEARING

ASSY, packer drive lower

1шт.

42

668325R1

SPACER

lower packer pinion

1шт.

43

667761R1

SHIM

packer gear wear (or as required)

3шт.

44

667760R1

STRIP

packer gear wear

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

45

667769R1

GEAR

PINION, packer drive lower

1шт.

608085R1

WASHER

1.406 x 2.000 x .054 (or as required)

4шт.

21794R1

WASHER

1.406 x 2.000 x .033

1шт.

46

667759R4

GEAR

packer drive lower

1шт.

47

668766R1

RETAINER

packer drive shaft lower key

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

48

656955R1

STUD

lower packer brg dowel

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

49

667438R1

SHIM

miter gear (or as required)

1шт.

50

671631R1

RETAINER

packer gear key

1шт.

426816

SCREW,Hex Soc Hd, 1/4"-20 x 3/4"

1/4 x 3/4 h/shd cap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21795R1

WASHER,1.78" ID x 2.5" OD x 0.03" Thk

1.781 x 2.250 x .027 (or as required)

2шт.

20705R1

WASHER

1.781 x 2.500 x .054 (or as required)

1шт.

51

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

3/8 x 1-3/4 sq gib head tapered

2шт.

52

57388D

WOODRUFF KEY,#128, 5/16" x 2 1/8", HT

KEY, 5/16 x 2-1/8 SAE 128 Woodruff

1шт.

53

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 sq gib head tapered

1шт.
