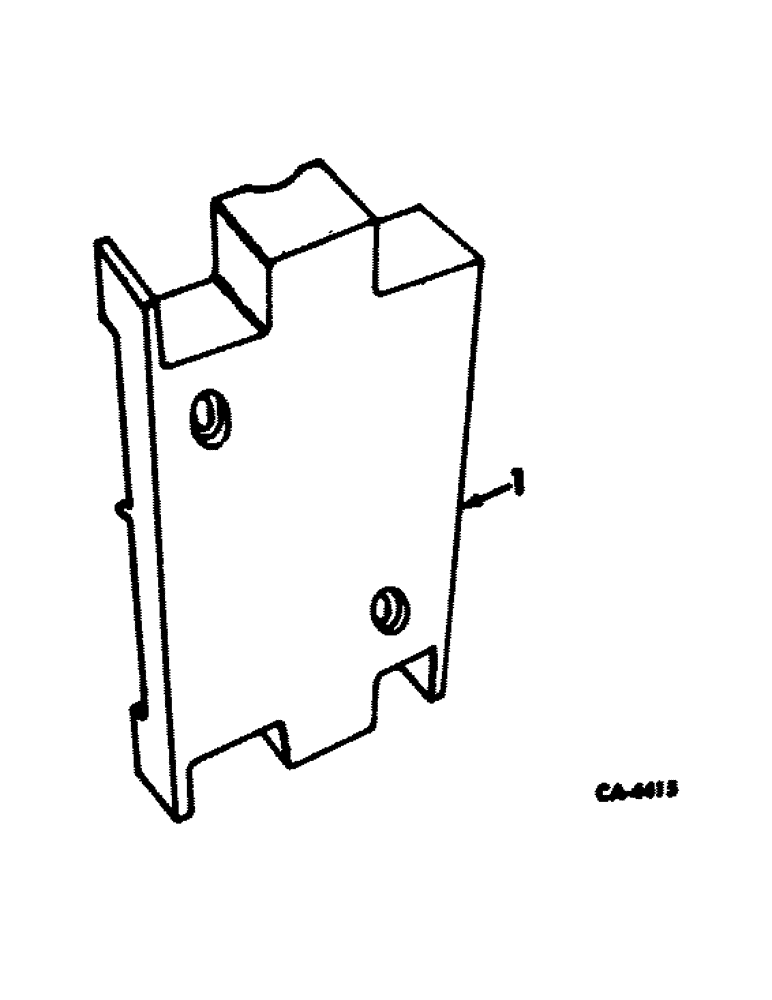

Запчасти Case IH 428 (A-23) - PLUNGER CENTER FILLER PACKAGE

202922C91

PACKAGE

PLUNGER CENTER FILLER SERVICE PACKAGE, consist of

1шт.

1

202914C1

FILLER

plunger center

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

SCREW, 3/8-16 x 2-1/4 znd hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 znd hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2-16 znd hex

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20869R1

WASHER

17/32 x 7/8 x 16 ga C-Z

1шт.
