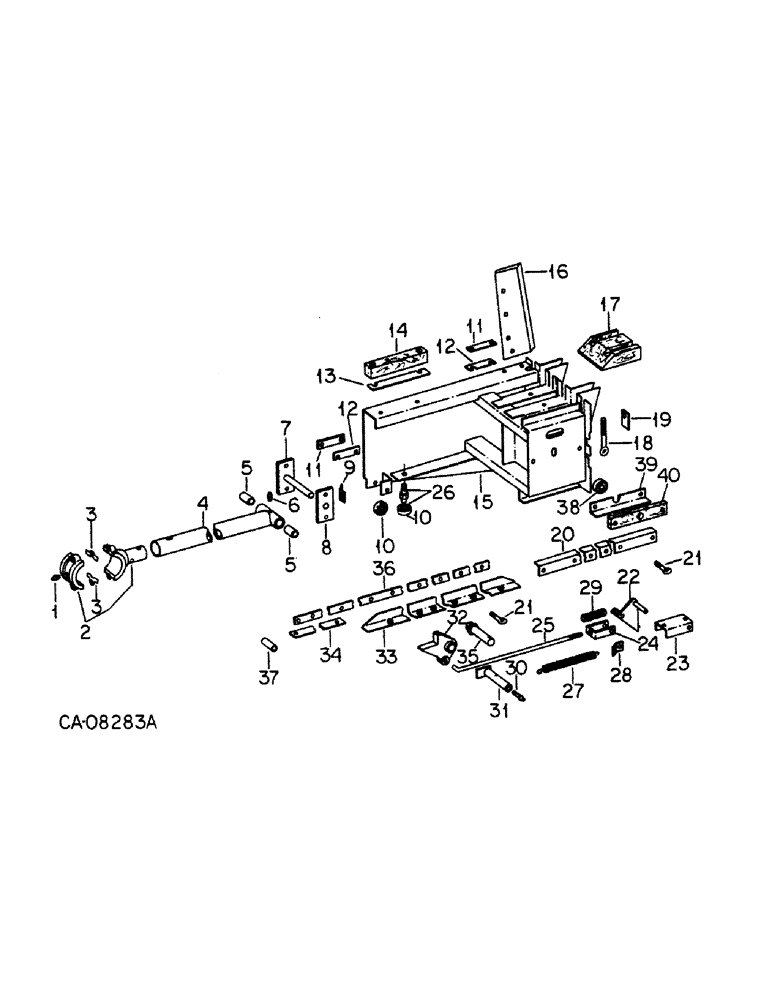

Запчасти Case IH 428 (A-22) - PLUNGER, 428 BALER

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

2

495177R21

BEARING ASSY,4.5" OD x 2.97"

BEARING ASSY, pitman front, for 435 and 445 twine balers

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 3 pln type 5

2шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3

495278R2

SHIM

pitman brg (or as required)

16шт.

4

667943R91

PITMAN

ASSY

1шт.

5

664976R1

BUSHING,31.8mm ID x 34.95mm OD x 44.7mm L

pitman rear

2шт.

6

127743

LUBE NIPPLE,65 Degree, 1/8" NPT x 1.20" lg

FITTING, 1/8 PTF short 65D lub

1шт.

7

668358R91

SUPPORT

BLOCK ASSY, plunger pitman

1шт.

8

668359R1

BLOCK

pitman

1шт.

673707R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2 x 1-1/2 pln crg type 5

4шт.

664573R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex. lock

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

9

668362R1

STRIP

SCRAPER, plunger front

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

.656 x 1.250 x .054

1шт.

21793R1

WASHER

.656 x 1.250 x .164

1шт.

10

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

plunger roller

4шт.

NLS

NO LONGER SERVICED

5/8 x 1-1/2 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21793R1

WASHER

.656 x 1.250 x .0164

1шт.

11

668367R1

PAD

wearing lower

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 type 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

668368R1

SHIM

plunger lower (or as required)

4шт.

13

668365R1

SHIM,45.72mm OD x 0.76mm Thk

plunger upper right (or as required)

3шт.

14

668364R2

BLOCK

plunger upper right

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

2шт.

453838

NUT

5/16 znp 3 long prg base tee

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

674043R2

PLUNGER

ASSY

1шт.

16

667684R2

KNIFE

hay

1шт.

21538R1

CARRIAGE BOLT,#3, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8 x 1-1/2 znd plow type 1

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

17

668375R1

BLOCK

plunger upper center

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 crg type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18

667922R1

BOLT,Eye, 5/8" - 11 x 4.69"

plunger eye

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

19

668363R1

SCRAPER

plunger rear

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

20

674057R1

ANGLE

plunger guide

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

477242R1

WASHER

.406 x 1.000 x .027

6шт.

21

674056R1

BOLT,Eye, 1/2" - 13 x 2.70"

plunger guide eye

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

21741R1

WASHER

.406 x .875 x .105 (or as required)

1шт.

22

201581C1

STOP

ARM ASSY, plunger stop

1шт.

20869R1

WASHER

.531 x .875 x .054

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

23

674071R1

BRACKET

plunger stop mounting

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

24

674072R1

CLEVIS

plunger stop link

1шт.

25

674064R1

LINKAGE

LINK, plunger stop

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

21740R1

WASHER

.531 x 1.500 x .054

2шт.

26

674058R21

BEARING ASSY

BEARING ASSY, plunger roller

2шт.

27

655919R1

SPRING

plunger stop

1шт.

28

674065R1

ANCHOR

plunger stop spring

1шт.

29

664301R1

SPRING

plunger stop relief

1шт.

30

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 PTF short 90D lub

1шт.

31

674061R1

PIVOT

ASSY, plunger stop

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

32

674060R1

STOP

plunger

1шт.

33

203032C1

ANGLE

plunger guide thrust

1шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8 x 1-1/4 plow type 1

4шт.

19023R1

CARRIAGE BOLT,#3, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 plow type 1

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

21741R1

WASHER

.406 x .875 x .105

4шт.

34

674059R2

LARGE PLATE

EXTENSION, bottom plate

1шт.

35

674073R1

SLEEVE

ASSY, plunger stop spring

1шт.

20704R1

WASHER

1.031 x 1.500 x .105

1шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

366112R1

WASHER

.781 x 1.250 x .105

1шт.

22752R1

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 2.250 hd type 1

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

619856R1

WASHER

.406 x 1.000 x .056

1шт.

36

203015C1

PLATE

STRIP, plunger thrust

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

6шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

5/16 x 1-1/8 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

22859R1

WASHER

.344 x .750 x .164

9шт.

37

674582R1

NIPPLE, LUBE

NIPPLE, plunger stop

1шт.

38

3103279R1

PIVOT

BUSHING, plunger slide

1шт.

39

3103024R1

ANGLE

plunger slide

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

40

3103023R1

SLIDE

plunger

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

2шт.
