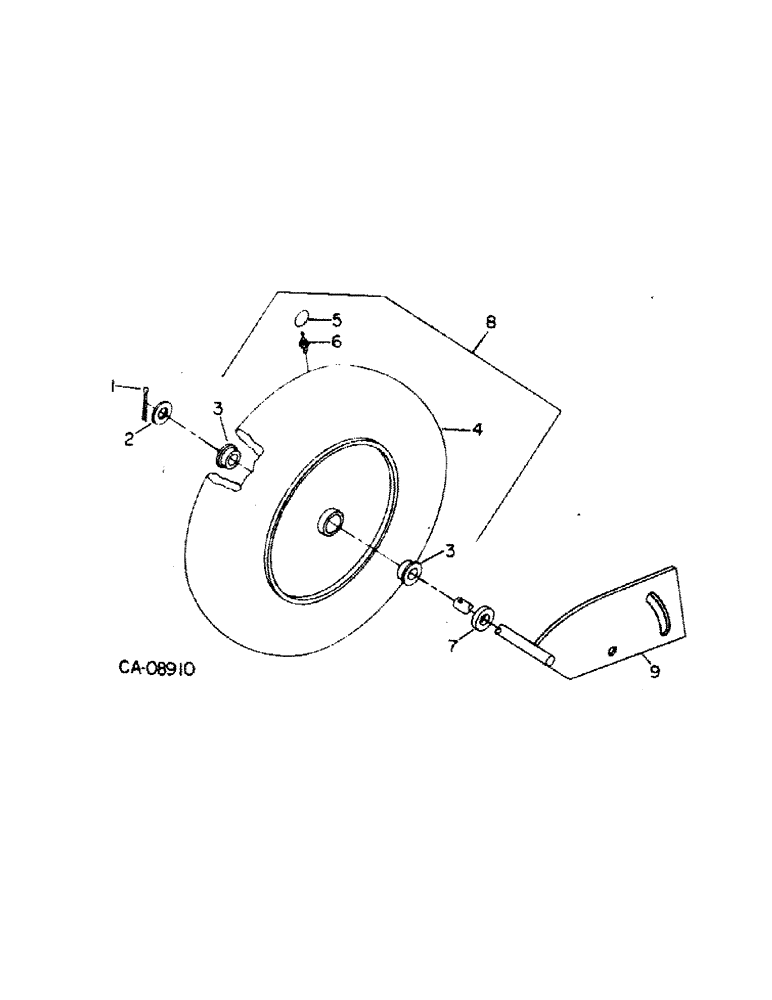

Запчасти Case IH 428 (A-16[A]) - PICKUP WHEEL 428 SERIAL NO. 701 AND ABOVE 435 SERIAL NO. 6001 AND ABOVE 445 TWINE SERIAL NO. 3001 AND ABOVE 445 WIRE SERIAL NO. 2001 AND ABOVE

1

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

2

21753R1

WASHER

.781 x 1.500 x .054 znd

2шт.

3

ZA104825

BUSHING

2шт.

4

TIRE, 4.80 x 4.00 4 ply, purchase locally

1шт.

5

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, grease instructions 10 hrs

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

7

467750R1

WASHER

.781 x 1.500 x .105

2шт.

8

ZA104582

WHEEL

LESS TIRE, 8 x 2-1/2 drop center

1шт.

9

674175R1

SUPPORT

BRACKET ASSY, pickup wheel

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 type 1

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

607891R1

WASHER

.469 x 1.000 x .054

1шт.
