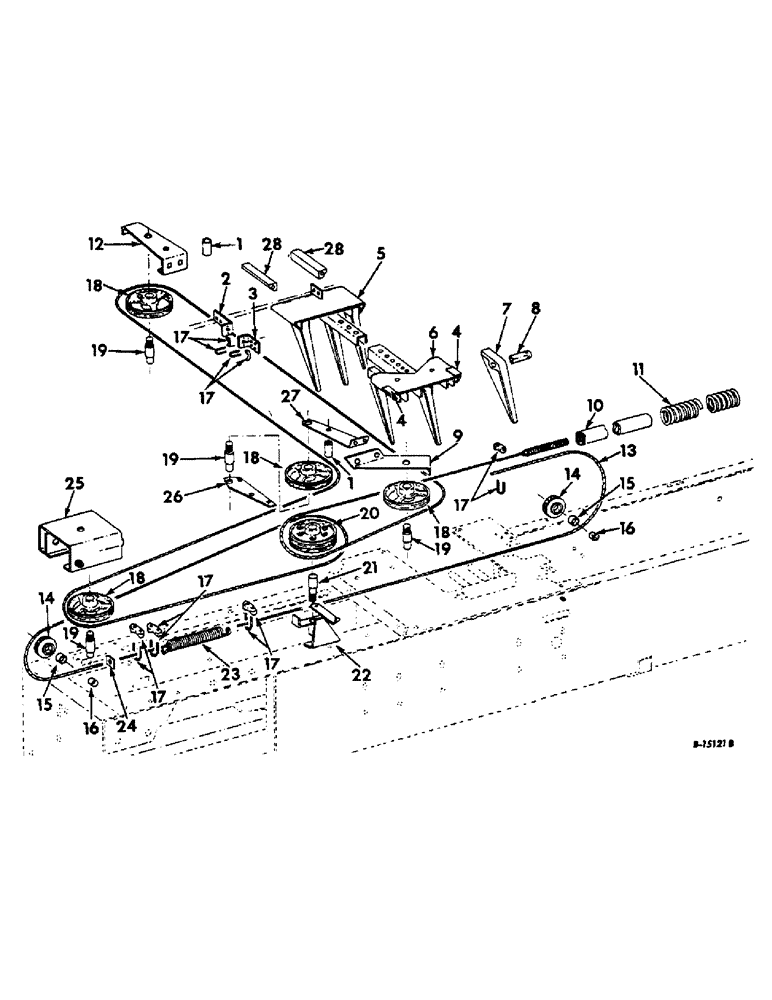

Запчасти Case IH 420 (D-09) - FEEDER

1

670491R1

SPACER

pulley center

1шт.

18801R1

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 2

7/16 x 2-3/4 C-Z hex-hd mach

1шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

1

670491R1

SPACER

feeder crg ball

1шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

670508R2

BRACKET

feeder drive, 000504 thru 003106

1шт.

2

202609C1

SUPPORT

BRACKET, feeder drive, 003107 and up

1шт.

477795R1

SCREW

BOLT, 3/8-16 x 1 long-nk crg

2шт.

472144R1

NUT

3/8-16 C-Z hex. lock

2шт.

3

670507R1

SUPPORT

BRACKET, feeder cable

1шт.

132848

SCREW,Sl Rnd Hd, #10 - 24 x 1"

10-24 x 1 C-Z slt-rd-hd mach tension bolt

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

4

670514R1

INSERT

feeder crg runner, 000504 thru 003106

12шт.

5

202616C91

CARRIER

CARRIAGE ASSY W/BLOCKS, feeder RH

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

6

202615C91

FRAME

CARRIAGE ASSY W/BLOCKS, feeder LH

1шт.

7

670515R11

FINGER ASSY.

ASSY, feeder

6шт.

8

670517R1

SHAFT

finger pivot

6шт.

21628R1

PIN

1/8 x 3/4 znp self-opening cot.

6шт.

149750R1

WASHER

.469 x 1 x .031 flat (or as required)

6шт.

9

670493R1

BRACKET

pulley LH

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

200423C1

GUIDE

PILOT ASSY, feeder relief spring

1шт.

11

520160R1

SPRING

feeder relief

1шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga C-Z

1шт.

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

12

670492R1

BRACKET

pulley RH

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

670501R11

CABLE,10122mm L

W/INSTRUCTIONS, feeder drive

1шт.

14

670498R11

PULLEY

ASSY, idler front relief spring

2шт.

15

670499R1

BUSHING

BEARING, idler knotter drive

2шт.

16

670500R1

BUSHING

idler pulley

2шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21740R1

WASHER

17/32 x 1-1/2 x 16 ga C-Z

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 znd hex. jam

1шт.

17

670502R91

BOLT

CLAMP ASSY, feeder cable

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

21739R1

WASHER

11/32 x 9/16 x 16 ga C-Z

12шт.

18

670488R1

PULLEY

feeder drive

4шт.

19

670487R91

BALL BEARING,0.6267" ID x 1.1811" OD x 1.531"

ASSY, feeder pulley (replaces 640487R91)

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20

670485R1

PULLEY

plunger

1шт.

21

674464R91

BEARING ASSY,0.6267" ID x 1.1811" OD x 1.531"

ASSY, plunger pulley, replaces 271844R91

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8-16 x 1 znd sq-hd cup-pt set

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

22

670480R92

SUPPORT ASSY.

BRACKET ASSY, plunger pulley

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

23

670503R1

SPRING

cable tension

1шт.

24

670465R1

BUMPER

carriage

1шт.

668569R1

WASHER

11/32 x 1-1/2 x 11 ga C-Z

1шт.

25

670494R91

BRACKET

ASSY, front pulley

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

26

670490R1

SUPPORT

BRACKET, center pulley lower

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

27

670489R1

SUPPORT

BRACKET, center pulley upper

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 34 x 16 ga C-Z

2шт.

28

202610C1

BLOCK

carriage wear, 003107 and up

4шт.
